TURN SIGNALS

EX500E7 GPZ500S 2000 FRANCE NL AR FG GR IS IT NR

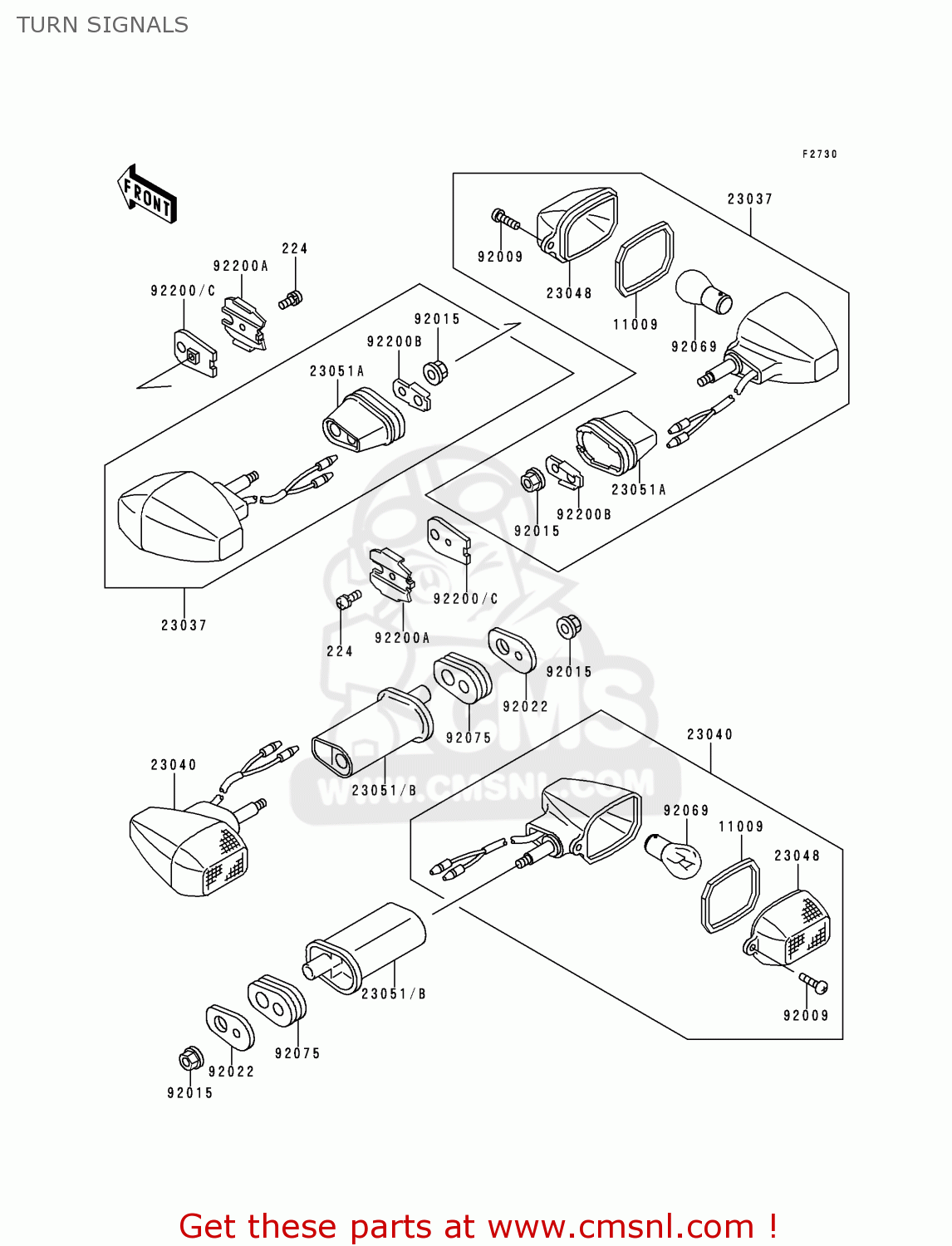

Turn signals diagram EX500E7 GPZ500S 2000 FRANCE NL AR FG GR IS IT NR

prices are in EUR

ref

part #

description

quantity

224

224C0408
ref: 224

SCREW-PAN-WP-CROS,4X8

€ 2.50

11009

110091576
ref: 11009

GASKET,SIGNAL LAMP (NAS)

€ 4.50

23037

230371272
ref: 23037

LAMP-ASSY-SIGNAL,FR

€ 41.50

23040

230401143
ref: 23040

LAMP-SIGNAL,RR

€ 38.50

23048

230481068
ref: 23048

LENS-SIGNAL LAMP

€ 12.00

23051A

230511207
ref: 23051A

BRACKET-SIGNAL LAMP,F

€ 13.00

23051B

230511248
ref: 23051B

BRACKET-SIGNAL LAMP

€ 7.50

92009

920091142
ref: 92009

SCREW,TAPPING,4X12

€ 3.00

92015

920151367
ref: 92015

NUT,FLANGED,6MM

€ 0.50

92022

920221672
ref: 92022

WASHER,SIGNAL LAMP

€ 3.50

92069

ref: 92069

92075

920751698
ref: 92075

DAMPER,SIGNAL LAMP

€ 6.00

92200A

922001016
ref: 92200A

WASHER,SIGNAL LAMP

€ 4.50

92200B

922001021
ref: 92200B

WASHER

€ 4.50

92200C

922001520
ref: 92200C

WASHER,SIGNAL LAMP

€ 4.00
