HEADLIGHT(S)

EX500E7 GPZ500S 2000 FRANCE NL AR FG GR IS IT NR

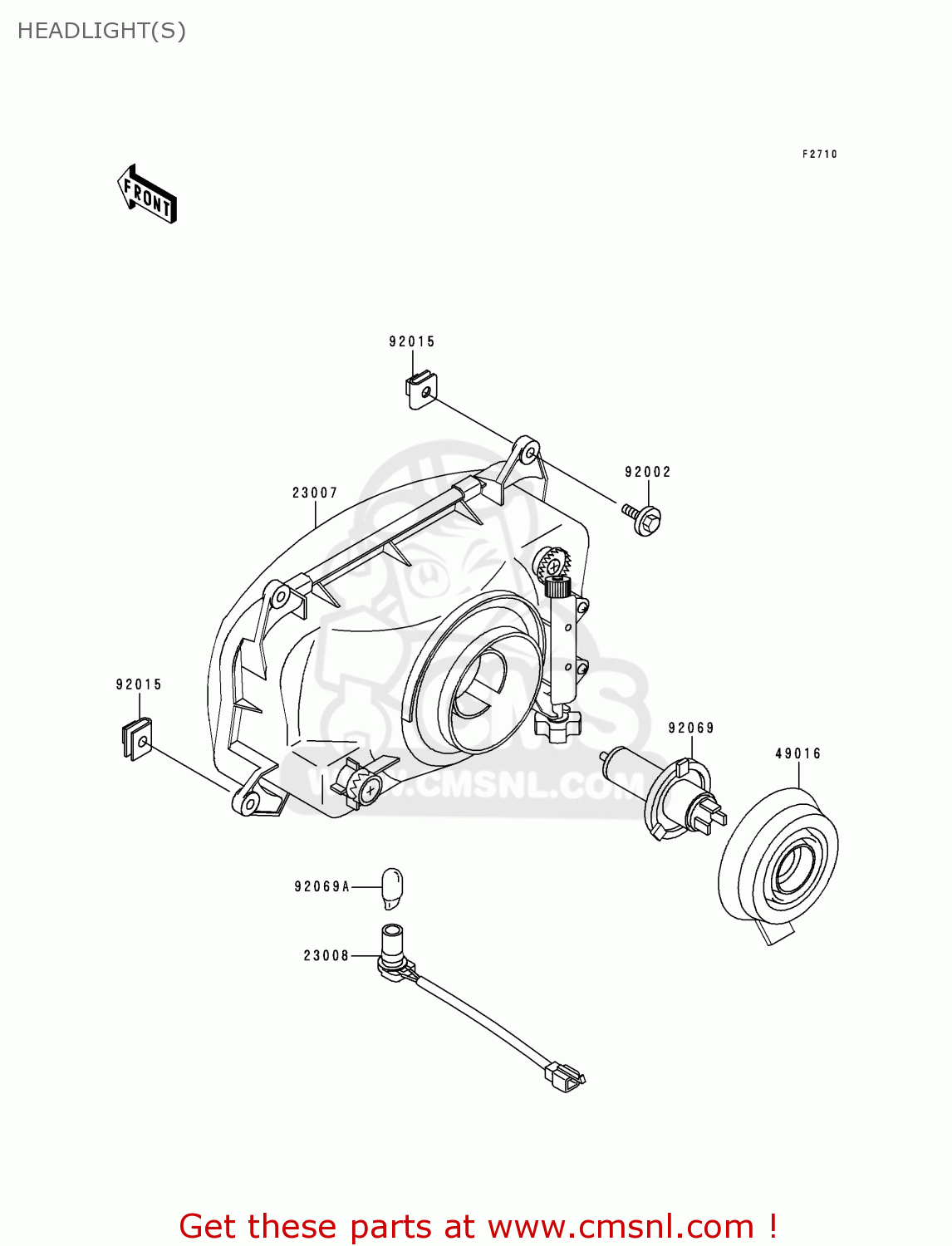

Headlight(s) diagram EX500E7 GPZ500S 2000 FRANCE NL AR FG GR IS IT NR

HEADLIGHT(S) EX500E7 GPZ500S 2000 FRANCE NL AR FG GR IS IT NR

HEADLIGHT(S) EX500E7 GPZ500S 2000 FRANCE NL AR FG GR IS IT NR

prices are in EUR

ref

part #

description

quantity

23007

230071317
ref: 23007

LENS-COMP,HEAD LAMP

€ 404.50

23008

230081472
ref: 23008

SOCKET-ASSY,HEAD LAMP

€ 17.50

49016

490161137
ref: 49016

COVER-SEAL,HEAD LAMP

€ 10.50

92002

920021262
ref: 92002

BOLT,6X22

€ 2.00

92015

920151602
ref: 92015

NUT,6MM

€ 4.50

92069

920691002
ref: 92069

BULB,12V-60155W

€ 15.00

92069A

920691016
ref: 92069A

BULB,12V 5W

€ 4.00
