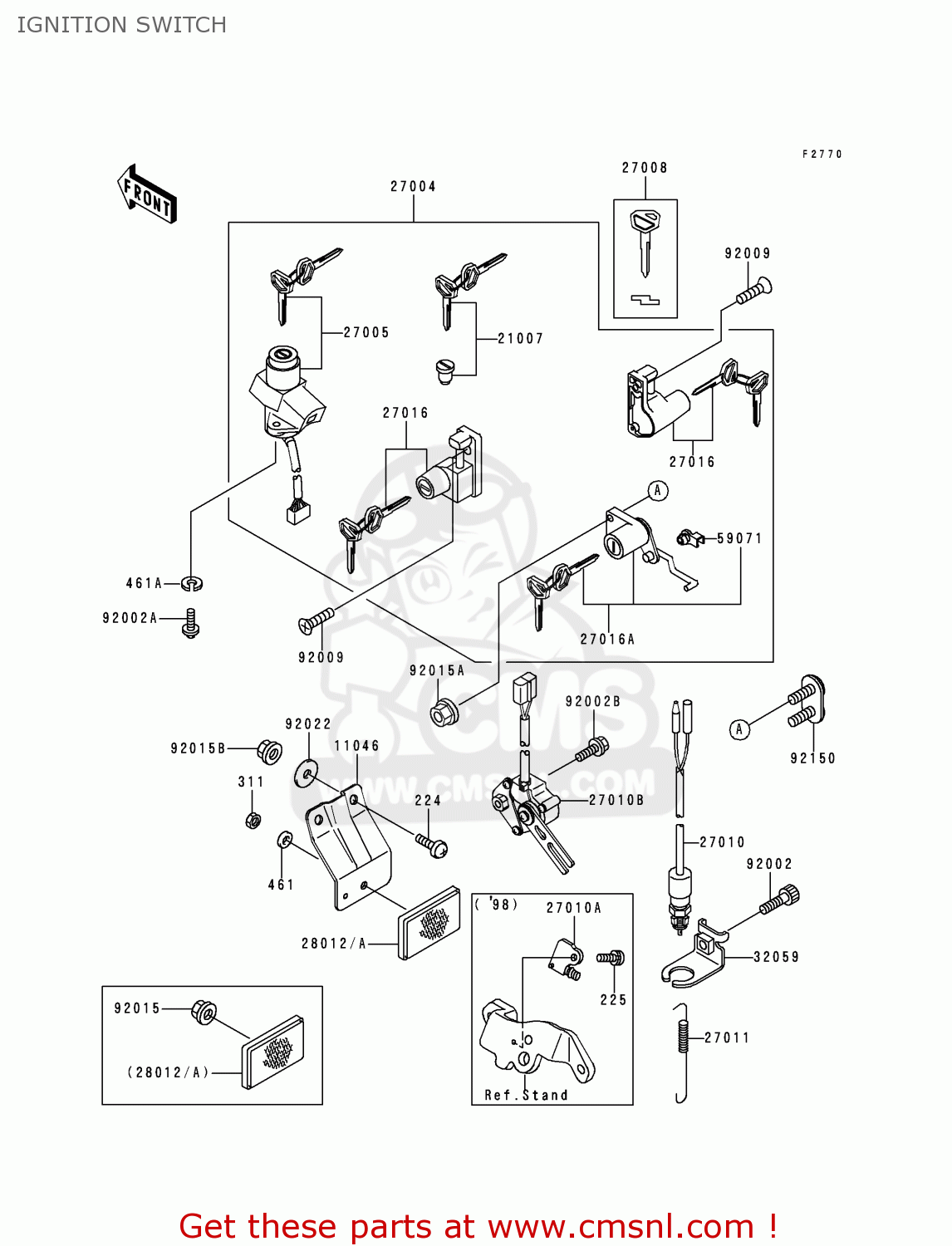

IGNITION SWITCH

ref

part #

description

quantity

224

224C0614
ref: 224
ARFGFRISITNL

SCREW-PAN-WP-CROS

€ 2.50

311

311B0500
ref: 311
ARFGFRISITNL

NUT-HEX

€ 0.50

11046

110461285
ref: 11046
ARFGFRISITNL

BRACKET,REFLECTOR

€ 8.50

21007

210075037
ref: 21007

ROTOR,LOCK,TANK CAP

€ 65.50

27004

270045465
ref: 27004

SWITCH-ASSY

€ 496.00

27005

270055102
ref: 27005

SWITCH-ASSY-IGNITION

€ 249.50

27008

270081173
ref: 27008

KEY-LOCK,BLANK

€ 13.00

27010

270101152
ref: 27010

SWITCH,BRAKE LAMP

€ 20.00

27010B

270101394
ref: 27010B

SWITCH,SIDE STAND

€ 47.50

27011

27011006
ref: 27011

SPRING-BRAKE LAMP SW

€ 3.50

27016

270165211
ref: 27016

LOCK-ASSY,HELMET

€ 56.50

27016A

270165217
ref: 27016A

LOCK-ASSY,SEAT

€ 54.00

28012A

280121088
ref: 28012A

REFLECTOR-REFLEX

€ 15.00

32059

320591121
ref: 32059

BRACKET-SWITCH,REAR B

€ 6.50

59071

590711103
ref: 59071

JOINT

€ 5.50

92002

920021175
ref: 92002

BOLT,SOCKET,6X14

€ 3.00

92002A

920021333
ref: 92002A

BOLT

€ 1.50

92002B

920021537
ref: 92002B

BOLT,6X28

€ 4.00

92009

920091305
ref: 92009

SCREW,5X16

€ 2.50

92015

920151259
ref: 92015
GRNR

NUT,FLANGED,5MM

€ 2.50

92015A

920151328
ref: 92015A

NUT,FLANGED,5MM

€ 2.00

92015B

920151367
ref: 92015B
ARFGFRISITNL

NUT,FLANGED,6MM

€ 0.50

92022

920221557
ref: 92022
ARFGFRISITNL

WASHER,6.5X20X1.6

€ 1.00

92150

921501820
ref: 92150

BOLT,SEAT LOCK

€ 2.00

461

461F0500
ref: 461
ARFGFRISITNL

WASHER-SPRING,5MM

€ 0.50

461A

461L0600
ref: 461A

WASHER-SPRING

€ 0.50

all assemblies
