VALVE(S)

EX500D9 NINJA 500R 2002 USA CALIFORNIA CANADA

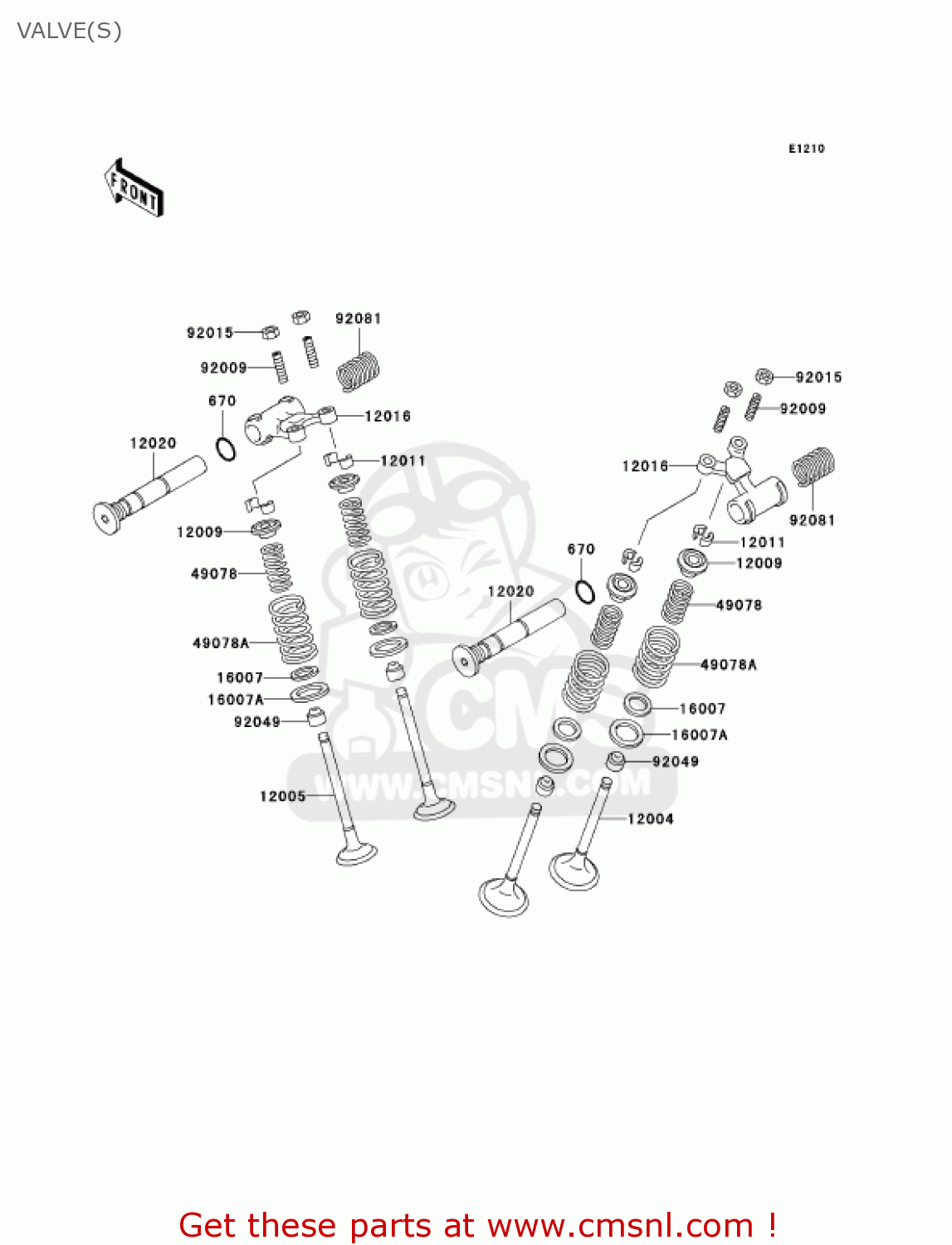

Valve(s) diagram EX500D9 NINJA 500R 2002 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

670

670D2016
ref: 670

O RING,16MM

€ 1.00

12004

120041119
ref: 12004

VALVE-INTAKE

€ 38.00

12005

120051052
ref: 12005

VALVE-EXHAUST

€ 68.00

12009

120091054
ref: 12009

RETAINER-VALVE SPRING

€ 7.00

12011

120111003
ref: 12011

COLLET

€ 3.00

12016

120161118
ref: 12016

ARM-ROCKER

€ 84.00

12020

120201057
ref: 12020

SHAFT-ROCKER

€ 50.00

16007

160071177
ref: 16007

SEAT-SPRING,12.1X16.2

€ 3.50

16007A

160071178
ref: 16007A

SEAT-SPRING,17.5X23.8

€ 4.00

49078

490781051
ref: 49078

SPRING-ENGINE VALVE,I

€ 10.50

49078A

490781052
ref: 49078A

SPRING-ENGINE VALVE,O

€ 10.50

92009

920091279
ref: 92009

SCREW,7MM

€ 6.50

92015

920151325
ref: 92015

NUT,7MM

€ 3.00

92049

920491062
ref: 92049

OIL SEAL,RVC2-5.5X8.5

€ 6.50

92081

920811636
ref: 92081

SPRING,ROCKER ARM

€ 10.00
