Genuine EX Kawasaki Parts delivered quickly!


CRANKCASE BOLT PATTERN

EX500D9 NINJA 500R 2002 USA CALIFORNIA CANADA

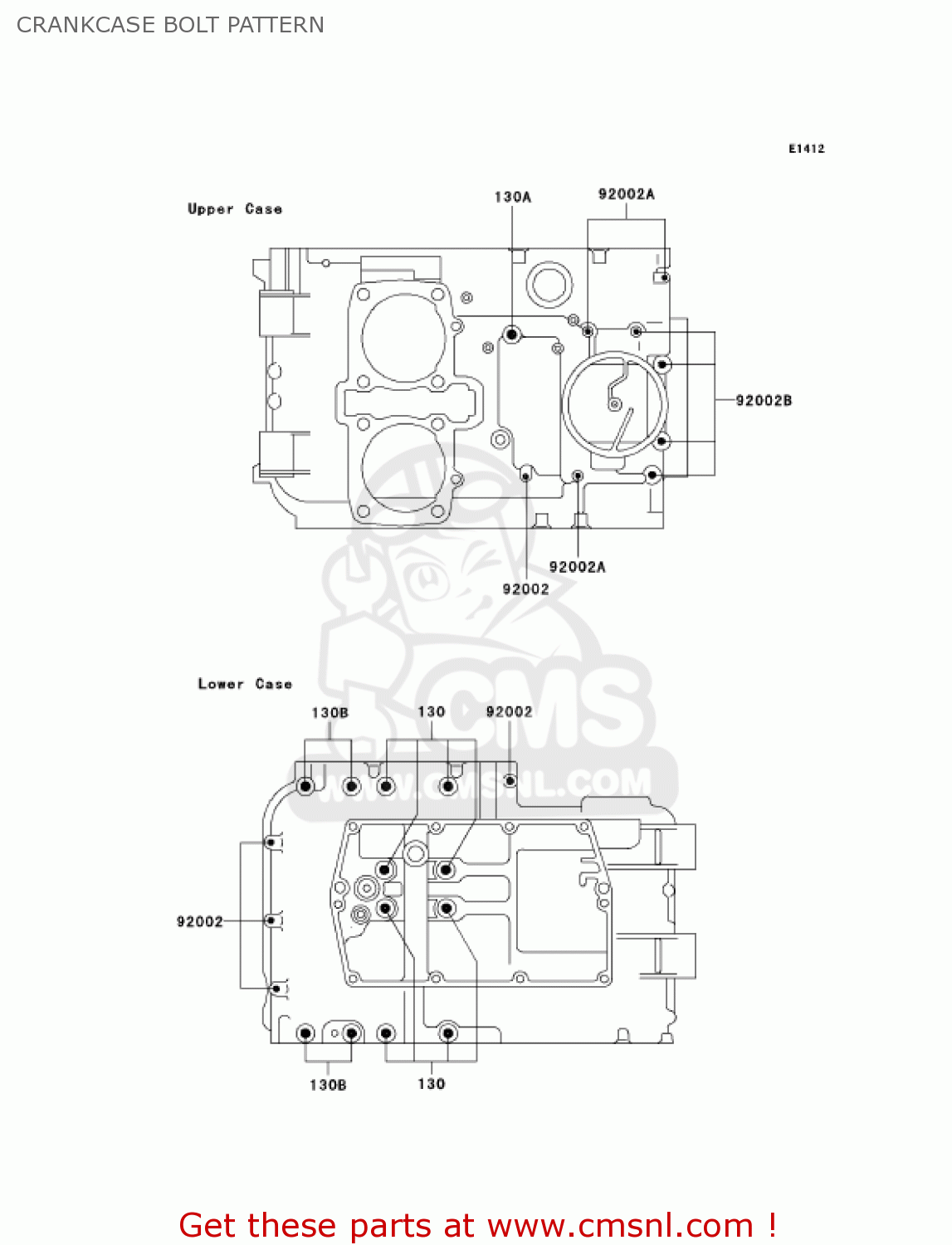

Crankcase bolt pattern diagram EX500D9 NINJA 500R 2002 USA CALIFORNIA CANADA

CRANKCASE BOLT PATTERN EX500D9 NINJA 500R 2002 USA CALIFORNIA CANADA
CRANKCASE BOLT PATTERN EX500D9 NINJA 500R 2002 USA CALIFORNIA CANADA
CRANKCASE BOLT PATTERN EX500D9 NINJA 500R 2002 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
130
130Z08100
ref: 130
BOLT-FLANGED
€ 7.50
130A
130Z0855
ref: 130A
BOLT-FLANGED
130Z0855
€ 3.50
130B
130Z0875
ref: 130B
BOLT-FLANGED
€ 6.00
92002
920021566
ref: 92002
BOLT,6X40
920021566
€ 3.00
92002A
920021567
ref: 92002A
BOLT,6X60
920021567
€ 3.50
92002B
920021568
ref: 92002B
BOLT,6X80
920021568
€ 4.00
