REAR SUSPENSION

EX500D9 NINJA 500R 2002 USA CALIFORNIA CANADA

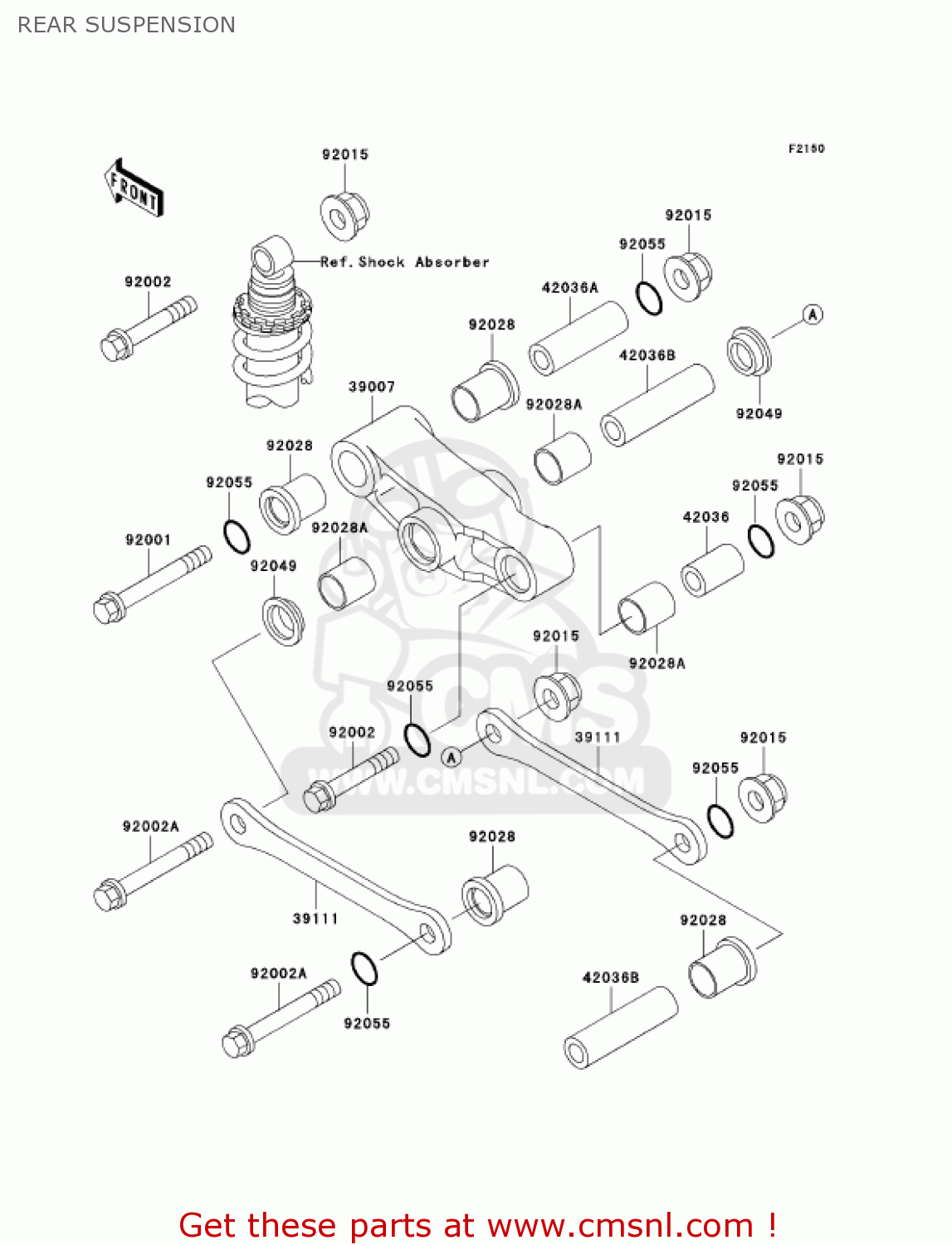

Rear suspension diagram EX500D9 NINJA 500R 2002 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

39007

390071120
ref: 39007

ARM-SUSP,UNI TRAK

€ 184.00

39111

391111133
ref: 39111

ROD-TIE,SUSPENSION

€ 69.50

42036

420361077
ref: 42036

SLEEVE,ARM,RR

€ 11.50

42036A

420361078
ref: 42036A

SLEEVE,ARM,FR

€ 17.00

42036B

420361102
ref: 42036B

SLEEVE,12.1X20X74

€ 19.50

92001

920011937
ref: 92001

BOLT,12X90

€ 10.50

92002

920021130
ref: 92002

BOLT,12X55

€ 7.00

92002A

920021886
ref: 92002A

BOLT,FLANGED,12X100

€ 11.50

92015

920151433
ref: 92015

NUT,12MM

€ 6.00

92028

920281597
ref: 92028

BUSHING

€ 6.50

92028A

920281598
ref: 92028A

BUSHING

€ 5.00

92049

920491109
ref: 92049

SEAL-OIL,ARM,CNT

€ 6.50

92055

920551215
ref: 92055

RING-O,19.8X2.2

€ 2.50

REAR SUSPENSION

all assemblies
