FUEL TANK(EX500-D3/D4)

EX500D3 NINJA 500 1996 USA CALIFORNIA CANADA

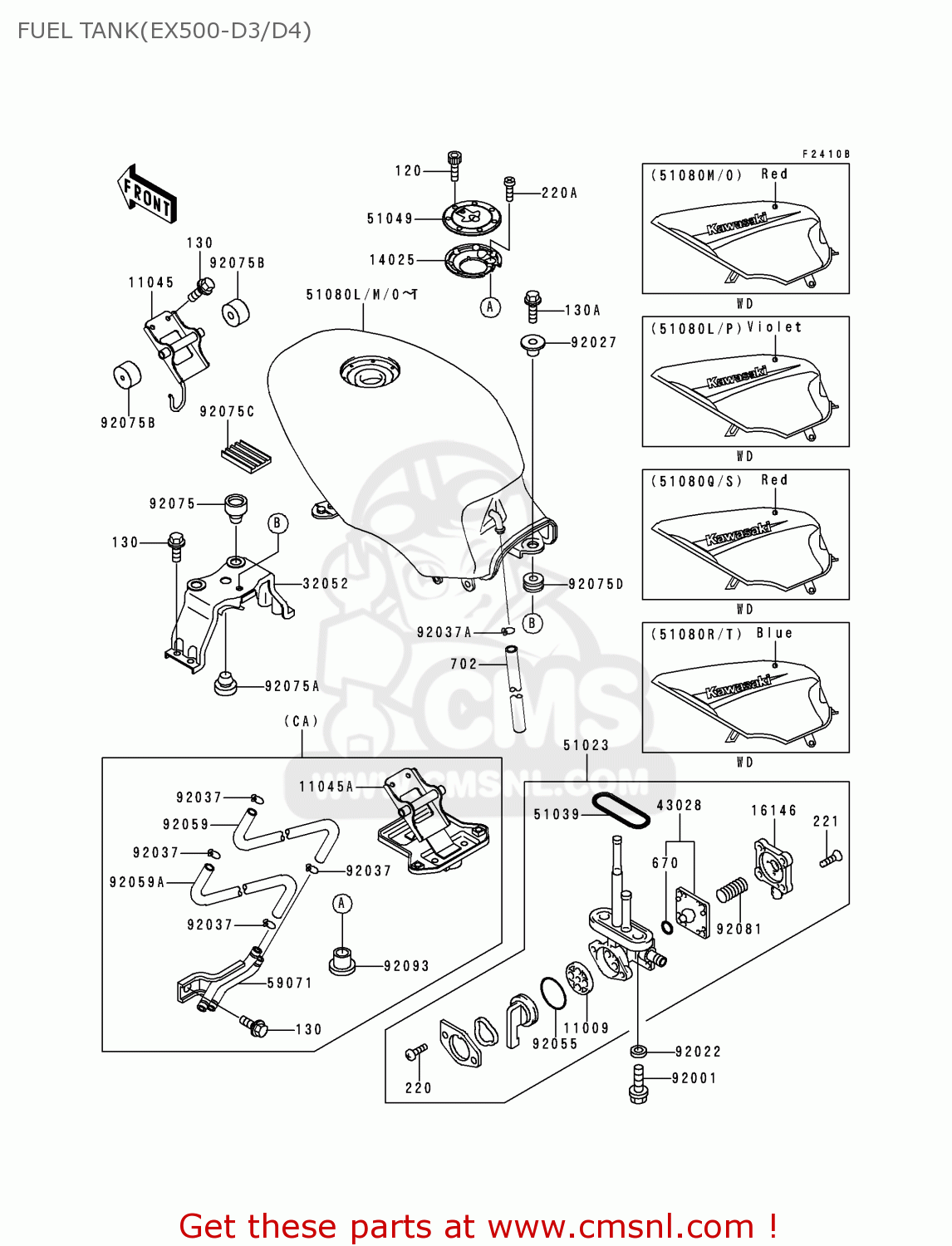

Fuel tank(ex500-d3/d4) diagram EX500D3 NINJA 500 1996 USA CALIFORNIA CANADA

FUEL TANK(EX500-D3/D4) EX500D3 NINJA 500 1996 USA CALIFORNIA CANADA
FUEL TANK(EX500-D3/D4) EX500D3 NINJA 500 1996 USA CALIFORNIA CANADA
FUEL TANK(EX500-D3/D4) EX500D3 NINJA 500 1996 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11009
110091188
ref: 11009
GASKET,TAP VALVE (NAS)
110091188
€ 4.00
11045
110451362
ref: 11045
CNUS
BRACKET,FUEL TANK,FR
110451362
€ 28.50
11045A
110451389
ref: 11045A
CA
FUEL TANK BRACKET,FRONT
€ 36.00
14025
140251913
ref: 14025
COVER,TANK CAP
140251913
€ 13.50
16146
161461010
ref: 16146
COVER-ASSY,TAP DIAPHR
161461010
€ 17.00
32052
320521394
ref: 32052
BRACKET-TANK,FUEL,RR
320521394
€ 39.00
43028
430281033
ref: 43028
DIAPHRAGM
430281033
€ 15.00
51023
510231142
ref: 51023
TAP-ASSY,FUEL
€ 95.50
51039
51039003
ref: 51039
'O' RING
51039003
€ 4.00
51049
510491091
ref: 51049
CAP-TANK,FUEL
510491091
€ 88.00
51080L
510805225SD
ref: 51080L
CNUS
TANK-COMP-FUEL,M.B.VI
€ 786.00
51080M
510805226H3
ref: 51080M
CNUS
TANK-COMP-FUEL,C.W.RE
€ 786.00
51080O
510805232H3
ref: 51080O
CA
FUEL TANK,COMPLETE,CANDY WINE RED
€ 626.50
51080P
510805233SD
ref: 51080P
CA
FUEL TANK,COMPLETE,METALLIC BLUE VIOLET
€ 626.50
120
120S0512
ref: 120
BOLT-SOCKET
120S0512
€ 1.00
130
130B0612
ref: 130
CNUS
BOLT-FLANGED,6X12
€ 0.50
130
130B0612
ref: 130
CA
BOLT-FLANGED,6X12
€ 0.50
130A
130G0830
ref: 130A
BOLT,8X30
130G0830
€ 1.00
220
220B0308
ref: 220
SCREW-PAN-CROS
220B0308
€ 0.50
220A
220C0508
ref: 220A
SCREW-PAN-CROS
220C0508
€ 1.00
221
221B0414
ref: 221
SCREW-CSR-CROS,4X14
221B0414
€ 2.50
670
670B1504
ref: 670
O RING,4MM
670B1504
€ 2.50
702
702A07380
ref: 702
TUBE-RUBBER
€ 9.50
59071
590711122
ref: 59071
CA
EVAPORATOR JOINT
€ 26.50
92001
920011091
ref: 92001
BOLT,6X20,FUEL TAP
920011091
€ 2.50
92022
92022183
ref: 92022
WASHER,6.2X11X1.5
92022183
€ 2.50
92027
920271780
ref: 92027
COLLAR,L=19.3
920271780
€ 4.50
92037
92037010
ref: 92037
CA
CLAMP-FUEL PIPE
92037010
€ 2.50
92037A
920371712
ref: 92037A
CLAMP
920371712
€ 3.00
92055
920551085
ref: 92055
'O' RING,FUEL TAP LEV
920551085
€ 3.00
92059
920591767
ref: 92059
CA
EVAPORATOR TUBE
€ 5.50
92059A
920591768
ref: 92059A
CA
TUBE,EVAPO
920591768
€ 6.50
92075
92075015
ref: 92075
DAMPER RUBB-MAIN STND
92075015
€ 3.00
92075A
920751045
ref: 92075A
DAMPER,STAND STOPPER
920751045
€ 5.00
92075B
920751115
ref: 92075B
DAMPER,FUEL TANK FRON
920751115
€ 4.00
92075C
920751489
ref: 92075C
DAMPER,SIDE BAG BRACK
920751489
€ 6.00
92075D
920751736
ref: 92075D
DAMPER
920751736
€ 4.00
92081
920811240
ref: 92081
SPRING,DIAPHRAGM VLV
920811240
€ 2.50
92093
920931030
ref: 92093
CA
OIL SEAL,FUEL TANK CA
920931030
€ 5.00
