AIR CLEANER

EX500D3 NINJA 500 1996 USA CALIFORNIA CANADA

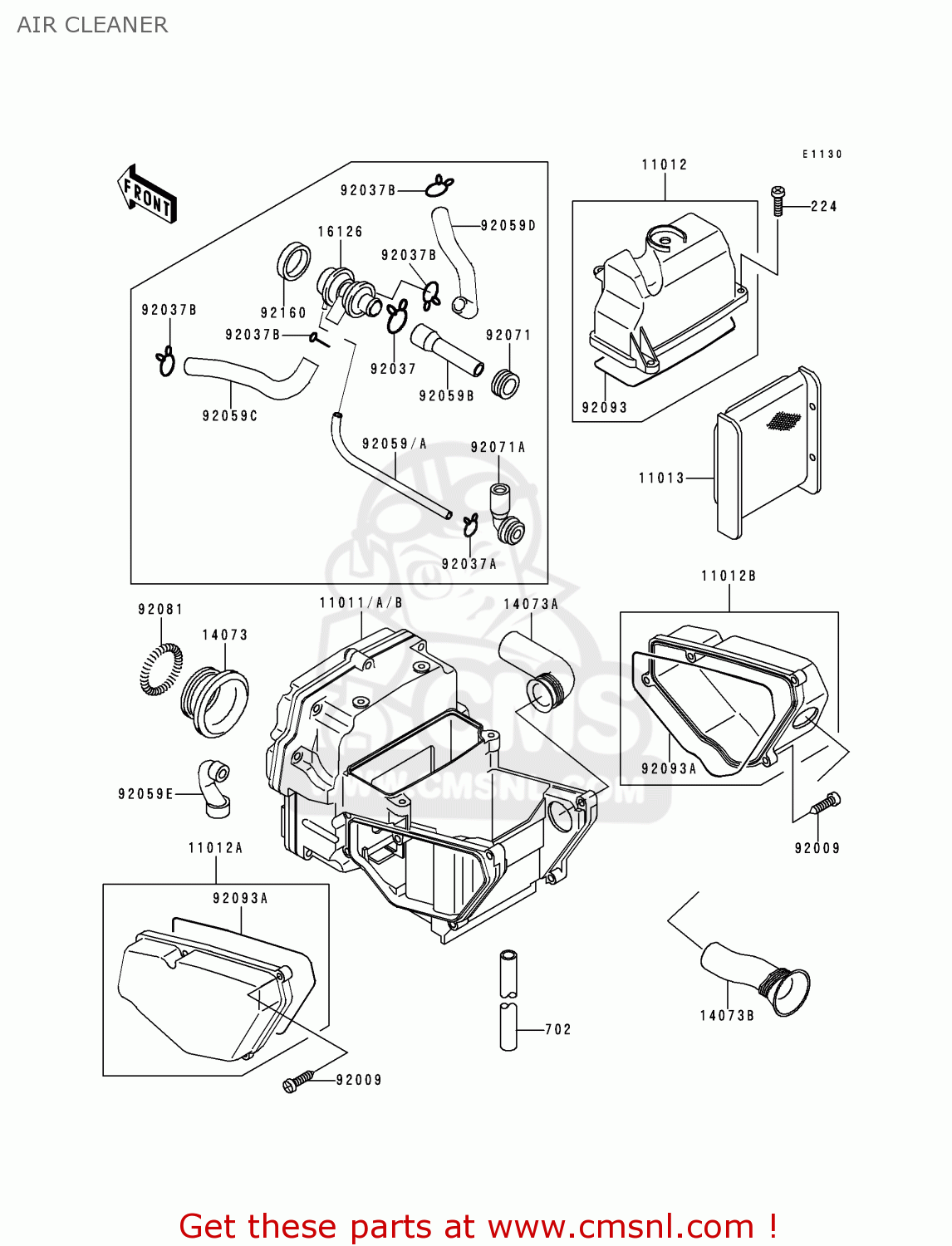

Air cleaner diagram EX500D3 NINJA 500 1996 USA CALIFORNIA CANADA

AIR CLEANER EX500D3 NINJA 500 1996 USA CALIFORNIA CANADA
AIR CLEANER EX500D3 NINJA 500 1996 USA CALIFORNIA CANADA
AIR CLEANER EX500D3 NINJA 500 1996 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11011
110111268
ref: 11011
US
CASE-AIR FILTER
110111268
€ 167.00
11011A
110111269
ref: 11011A
CA
AIR FILTER CASE
€ 106.00
11011B
110111270
ref: 11011B
CN
CASE-AIR FILTER
110111270
€ 122.50
11012
110121571
ref: 11012
CAP,AIR FILTER CASE,U
110121571
€ 32.50
11012A
110121608
ref: 11012A
CAP,AIR FILTER,LH
110121608
€ 28.00
11012B
110121609
ref: 11012B
CAP,AIR FILTER,RH
110121609
€ 28.00
11013
110131252
ref: 11013
ELEMENT-AIR FILTER
110131252
€ 28.00
14073
140731292
ref: 14073
DUCT,CARBURATOR
140731292
€ 17.00
14073A
140731293
ref: 14073A
DUCT,INTAKE
140731293
€ 10.00
14073B
140731295
ref: 14073B
DUCT
140731295
€ 14.00
16126
161261005
ref: 16126
CAUS
VALVE,AIR SWITCH
161261005
€ 130.50
92009
920091488
ref: 92009
SCREW
920091488
€ 3.00
92037
920371076
ref: 92037
CAUS
CLAMP,TUBE
920371076
€ 4.00
92037A
920371712
ref: 92037A
CAUS
CLAMP
920371712
€ 3.00
92037B
92037213
ref: 92037B
CAUS
CLAMP, BREATHER TUBE
92037213
€ 2.50
92059
920591043
ref: 92059
US
TUBE,TUBE 4X9X290
€ 7.00
92059A
920591131
ref: 92059A
CA
TUBE,4X9X110
€ 12.50
92059B
920591770
ref: 92059B
CAUS
TUBE,AIR FILTER-ACV
920591770
€ 9.00
92059C
920591771
ref: 92059C
CAUS
TUBE,AIR SWITCH,LH
920591771
€ 14.50
92059D
920591772
ref: 92059D
CAUS
TUBE,AIR SWITCH,RH
920591772
€ 14.00
92059E
920591773
ref: 92059E
TUBE,BREATHER
920591773
€ 7.50
92071
920711028
ref: 92071
CAUS
GROMMET AIR FILTER
€ 4.50
92071A
920711114
ref: 92071A
CA
GROMMET,AIR FILTER
€ 16.50
92081
920811457
ref: 92081
SPRING,COIL,BLACK
920811457
€ 7.00
92093
920931233
ref: 92093
SEAL,AIR FILTER CAP
€ 6.00
92093A
920931234
ref: 92093A
SEAL,AIR FILTER
920931234
€ 7.50
224
224B0620
ref: 224
SCREW-PAN-WP-CROS
€ 0.50
702
702A05350
ref: 702
TUBE-RUBBER,5X350
€ 50.00
92160
921601454
ref: 92160
CAUS
DAMPER,VALVE
€ 10.50
