FRONT MASTER CYLINDER

EX500D3 NINJA 500 1996 USA CALIFORNIA CANADA

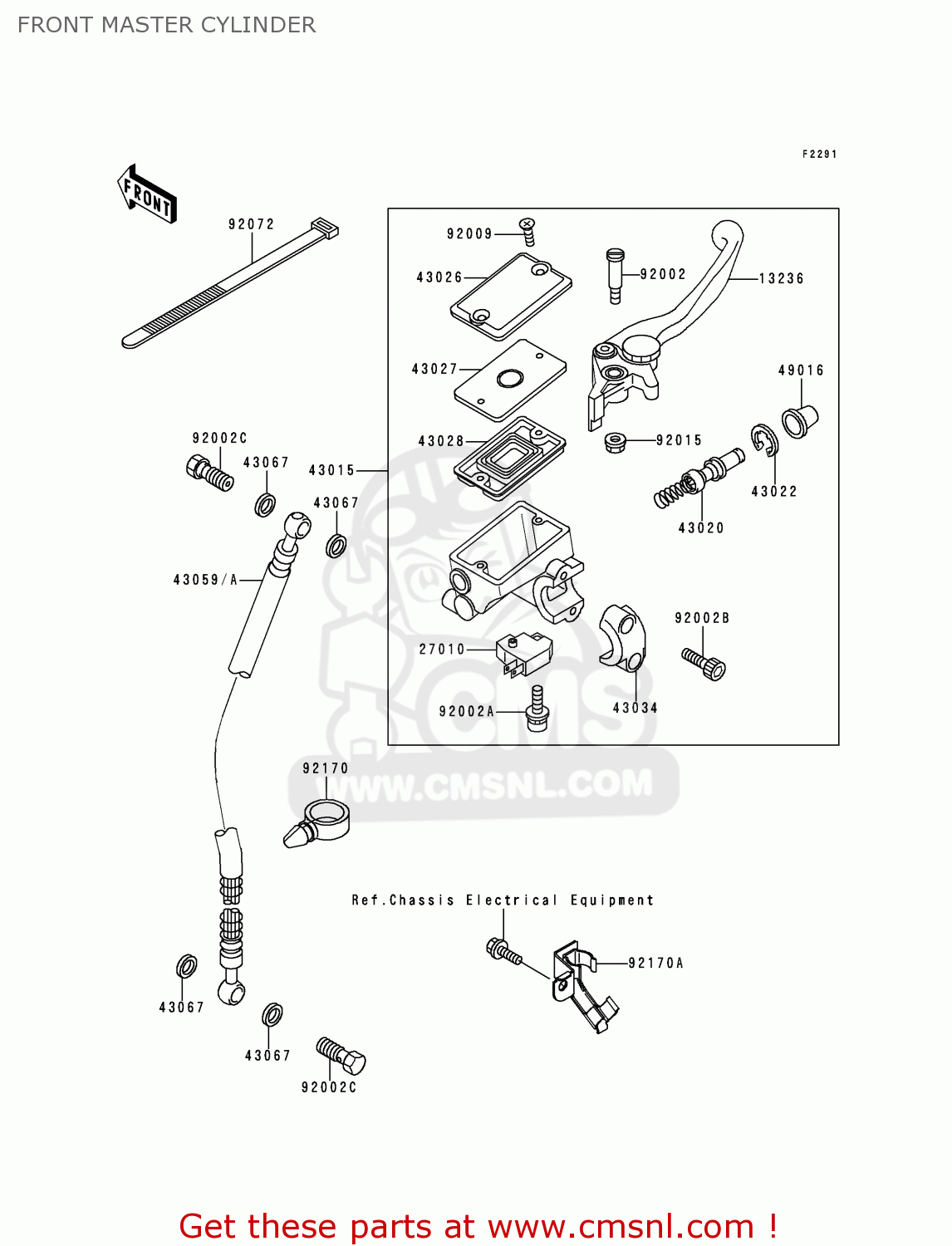

Front master cylinder diagram EX500D3 NINJA 500 1996 USA CALIFORNIA CANADA

FRONT MASTER CYLINDER EX500D3 NINJA 500 1996 USA CALIFORNIA CANADA
FRONT MASTER CYLINDER EX500D3 NINJA 500 1996 USA CALIFORNIA CANADA
FRONT MASTER CYLINDER EX500D3 NINJA 500 1996 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
13236
132361185
ref: 13236
LEVER-COMP,FRONT BRAK
132361185
€ 51.00
27010
270101170
ref: 27010
SWITCH,BRAKE
270101170
€ 26.00
43015
430151479
ref: 43015
CYLINDER-ASSY-MASTER,
€ 350.00
43020
430201056
ref: 43020
PISTON-COMP-BRAKE,FR
430201056
€ 47.50
43022
430221010
ref: 43022
STOPPER-BRAKE,PISTON
430221010
€ 3.00
43026
430261076
ref: 43026
CAP-BRAKE
430261076
€ 31.00
43027
430271055
ref: 43027
PLATE-DIAPHRAGM
430271055
€ 5.50
43028
430281058
ref: 43028
DIAPHRAGM,MASTER CYLI
430281058
€ 15.50
43034
430341053
ref: 43034
HOLDER-BRAKE,MASTER C
430341053
€ 26.00
43059A
430591860
ref: 43059A
HOSE-BRAKE,FR
€ 129.00
43067
43067001
ref: 43067
WASHER,10.5X15X1.5
43067001
€ 1.50
49016
490161044
ref: 49016
COVER-SEAL,MASTER CYL
490161044
€ 7.00
92002
920021322
ref: 92002
BOLT,LEVER SET
920021322
€ 8.00
92002A
920021323
ref: 92002A
BOLT
920021323
€ 2.50
92002B
920021324
ref: 92002B
BOLT,SOCKET,6X20
920021324
€ 5.00
92002C
920021907
ref: 92002C
BOLT
920021907
€ 3.50
92009
920091458
ref: 92009
SCREW,4MM
920091458
€ 2.00
92015
920151233
ref: 92015
NUT,FLANGED,6MM
920151233
€ 3.50
92072
920721195
ref: 92072
BAND,L=185
920721195
€ 1.00
92170
921701067
ref: 92170
CLAMP,HOSE
921701067
€ 5.00
92170A
921701499
ref: 92170A
CLAMP,HOSE
€ 7.00
