SWINGARM

EX500D3 GPZ500S 1996 UNITED KINGDOM

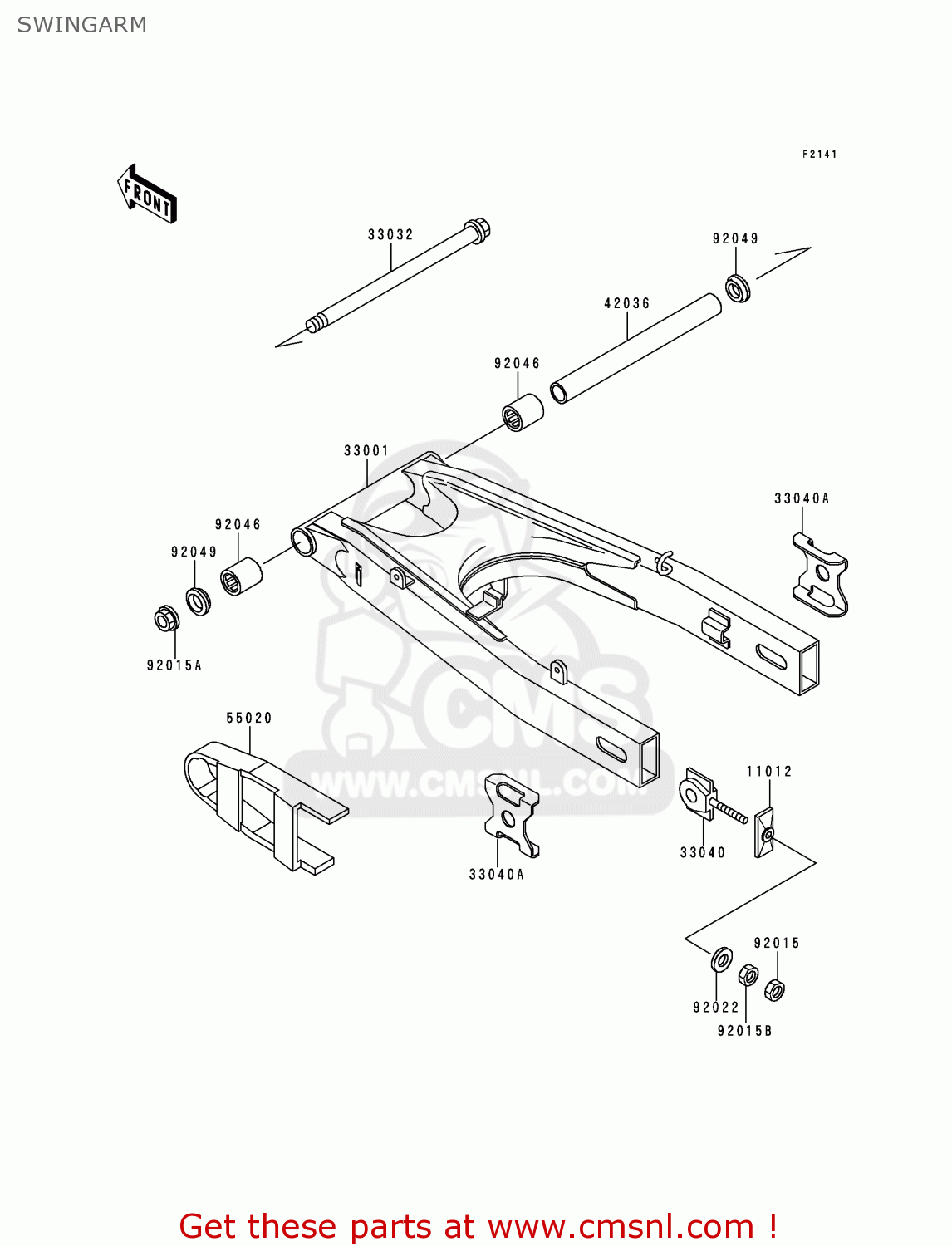

Swingarm diagram EX500D3 GPZ500S 1996 UNITED KINGDOM

prices are in EUR

ref

part #

description

quantity

11012

11012187110
ref: 11012

CAP,CHAIN ADJUSTER,BL

€ 15.50

33001

33001144410
ref: 33001

ARM-COMP-SWING,BLACK

€ 463.00

33032

330321109
ref: 33032

SHAFT-SWING ARM

€ 31.50

33040

330401116
ref: 33040

ADJUSTER-CHAIN,INNER

€ 20.50

33040A

33040113710
ref: 33040A

ADJUSTER-CHAIN,OUTER,

€ 12.00

42036

420361212
ref: 42036

SLEEVE,14.1X22X220

€ 45.50

55020

550201500
ref: 55020

GUARD,CHAIN

€ 35.50

92015

920151364
ref: 92015

NUT,8MM

€ 2.50

92015A

920151407
ref: 92015A

NUT,14MM

€ 6.50

92015B

920151658
ref: 92015B

NUT,FLANGED,8MM

€ 3.00

92022

920221582
ref: 92022

WASHER,8.5X16X1.2

€ 0.50

92046

920461162
ref: 92046

BEARING-NEEDLE,F-2220

€ 20.50

92049

920491254
ref: 92049

SEAL-OIL,MHA22 28 5.7

€ 6.50
