FRONT HUB

EX500D3 GPZ500S 1996 UNITED KINGDOM

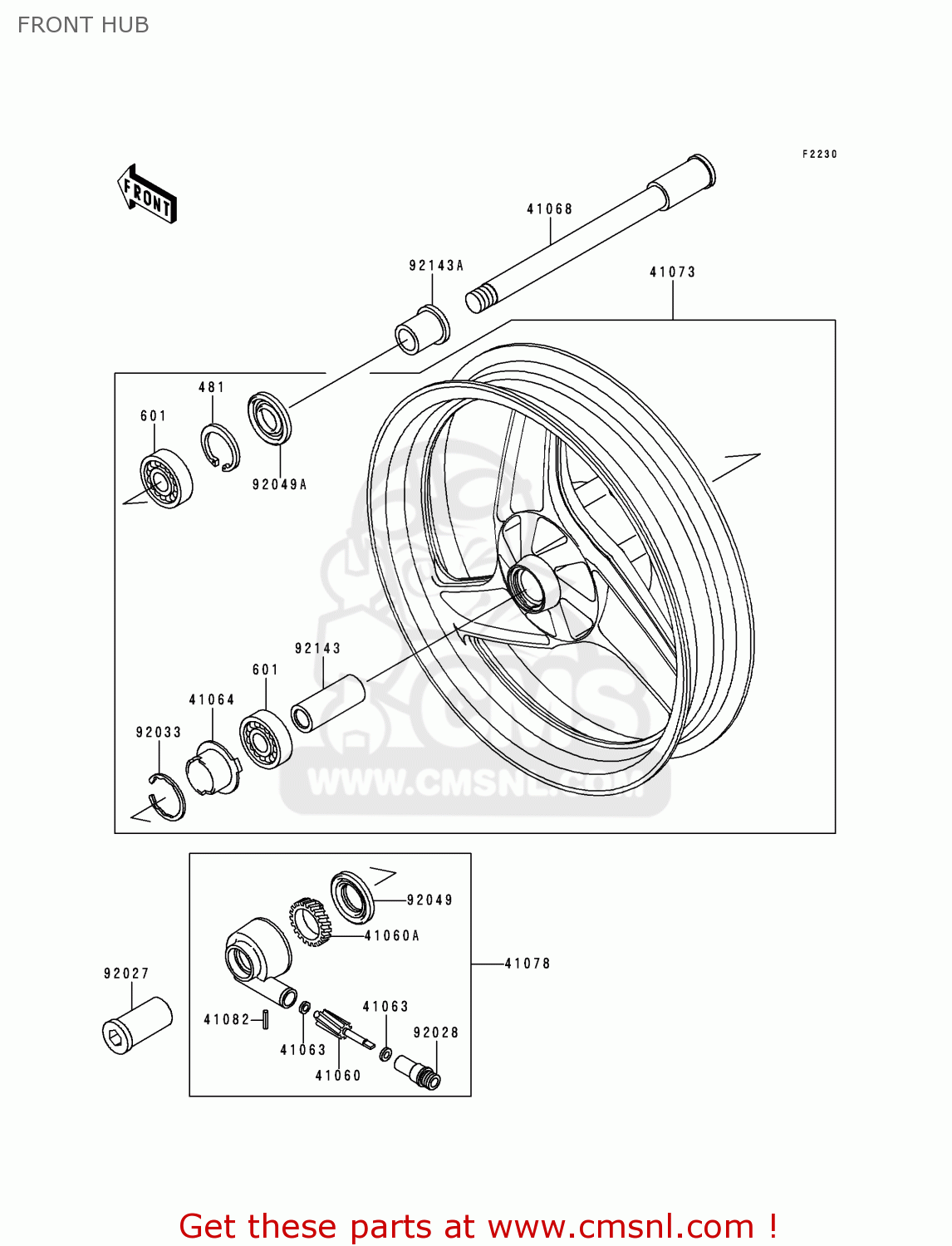

Front hub diagram EX500D3 GPZ500S 1996 UNITED KINGDOM

FRONT HUB EX500D3 GPZ500S 1996 UNITED KINGDOM
FRONT HUB EX500D3 GPZ500S 1996 UNITED KINGDOM
FRONT HUB EX500D3 GPZ500S 1996 UNITED KINGDOM
prices are in EUR
ref
part #
description
quantity
481
481J3500
ref: 481
CIRCLIP-TYPE-C,35MM
481J3500
€ 1.00
601
601B6202UU
ref: 601
BEARING-BALL
601B6202UU
€ 21.00
41060
410601123
ref: 41060
GEAR-METER SCREW,9T
410601123
€ 19.50
41060A
410601124
ref: 41060A
GEAR-METER SCREW,23T
410601124
€ 23.50
41063
41063001
ref: 41063
WASHER-THRST SPD PINI
41063001
€ 3.00
41064
410641006
ref: 41064
RECEIVER,SPEEDOMETER
410641006
€ 9.50
41068
410681175
ref: 41068
AXLE,FR
410681175
€ 49.50
41073
410731543GE
ref: 41073
WHEEL-ASSY,FR,G.GRAY
410731543GE
€ 769.00
41078
410781068
ref: 41078
CASE-ASSY-METER GEAR
410781068
€ 96.50
41082
41082001
ref: 41082
PIN-SPRING
41082001
€ 2.50
92027
920271726
ref: 92027
COLLAR,FR AXLE,L=36.5
920271726
€ 17.50
92028
920281066
ref: 92028
BUSHING,SPEEDOMET CAB
920281066
€ 7.50
92033
920331041
ref: 92033
CIRCLIP,42MM
920331041
€ 4.00
92049
920491057
ref: 92049
OIL SEAL,BJN30427-C3
920491057
€ 7.50
92049A
920491176
ref: 92049A
SEAL-OIL,MH20354.5
920491176
€ 10.00
92143
921431185
ref: 92143
COLLAR,15.1X20X70
€ 12.50
92143A
921431187
ref: 92143A
COLLAR,FR AXLE,L=24
921431187
€ 13.00
