IGNITION SWITCH
EX500D3 GPZ500S 1996 UNITED KINGDOM

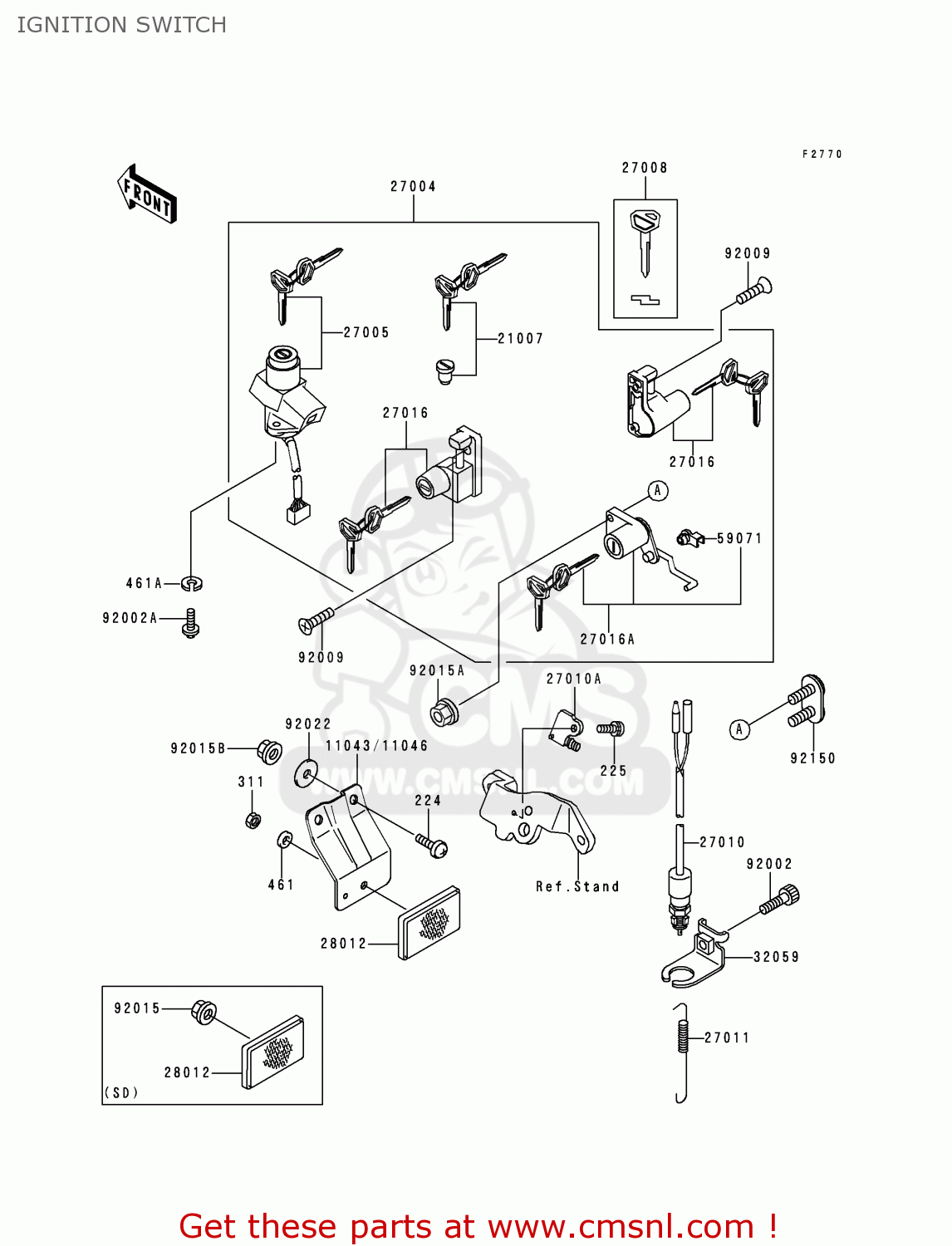

Ignition switch diagram EX500D3 GPZ500S 1996 UNITED KINGDOM
IGNITION SWITCH EX500D3 GPZ500S 1996 UNITED KINGDOM
×
prices are in EUR
ref
part #
description
quantity
224
224C0614
ref: 224
SCREW-PAN-WP-CROS
€ 2.50
225
225C0416
ref: 225
SCREW-PAN-WSP-CROS
€ 2.50
311
311B0500
ref: 311
NUT-HEX
€ 0.50
461
461F0500
ref: 461
WASHER-SPRING,5MM
€ 0.50
461A
461L0600
ref: 461A
WASHER-SPRING
€ 0.50
11043
110431078
ref: 11043
BRACKET-B,REFLECTOR
€ 13.50
21007
210075037
ref: 21007
ROTOR,LOCK,TANK CAP
€ 65.50
27004
270045465
ref: 27004
SWITCH-ASSY
€ 496.00
27005
270055102
ref: 27005
SWITCH-ASSY-IGNITION
€ 249.50
27008
270081173
ref: 27008
KEY-LOCK,BLANK
€ 13.00
27010
270101152
ref: 27010
SWITCH,BRAKE LAMP
€ 20.00
27010A
270101185
ref: 27010A
SWITCH,BRAKE/SIDE STA
€ 25.50
27011
27011006
ref: 27011
SPRING-BRAKE LAMP SW
€ 3.50
27016
270165211
ref: 27016
LOCK-ASSY,HELMET
€ 56.50
27016A
270165217
ref: 27016A
LOCK-ASSY,SEAT
€ 54.00
28012
280121078
ref: 28012
REFLECTOR-REFLEX,RR
€ 15.00
32059
320591121
ref: 32059
BRACKET-SWITCH,REAR B
€ 6.50
59071
590711103
ref: 59071
JOINT
€ 5.50
92002
920021175
ref: 92002
BOLT,SOCKET,6X14
€ 3.00
92002A
920021333
ref: 92002A
BOLT
€ 1.50
92009
920091305
ref: 92009
SCREW,5X16
€ 2.50
92015A
920151328
ref: 92015A
NUT,FLANGED,5MM
€ 2.00
92015B
920151367
ref: 92015B
NUT,FLANGED,6MM
€ 0.50
92022
920221557
ref: 92022
WASHER,6.5X20X1.6
€ 1.00
92150
921501820
ref: 92150
BOLT,SEAT LOCK
€ 2.00
