REAR WHEEL/CHAIN

EX500D2 NINJA 500 1995 USA CALIFORNIA CANADA

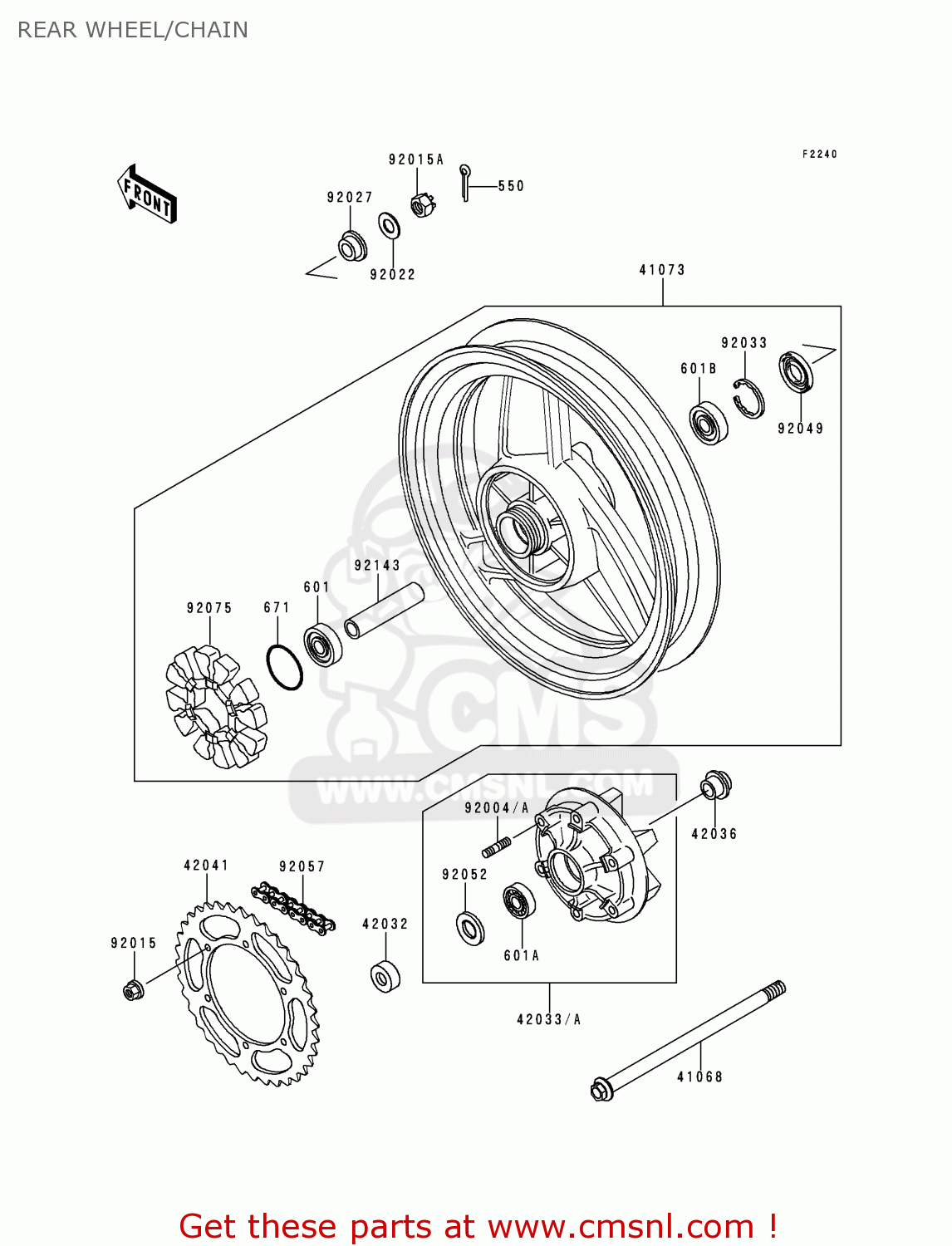

Rear wheel/chain diagram EX500D2 NINJA 500 1995 USA CALIFORNIA CANADA

REAR WHEEL/CHAIN EX500D2 NINJA 500 1995 USA CALIFORNIA CANADA
REAR WHEEL/CHAIN EX500D2 NINJA 500 1995 USA CALIFORNIA CANADA
REAR WHEEL/CHAIN EX500D2 NINJA 500 1995 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
550
550D4035
ref: 550
PIN-COTTER,4.0X35
550D4035
€ 1.00
601
601B6203UU
ref: 601
BEARING-BALL,#6203UUC
601B6203UU
€ 25.00
601A
601B6205G
ref: 601A
BEARING BALL
601B6205G
€ 14.00
601B
601B6303UU
ref: 601B
BEARING-BALL,6303LLUC
601B6303UU
€ 30.50
671
671B2550
ref: 671
O RING,50MM
671B2550
€ 1.50
41068
410681223
ref: 41068
AXLE,RR
410681223
€ 48.00
41073
410731474GE
ref: 41073
WHEEL-ASSY,RR,G.GRAY
€ 837.50
42032
42032063
ref: 42032
COLLAR,RR AXLE,L=13
42032063
€ 15.00
42033
4203311417J
ref: 42033
COUPLING-ASSY,RR HUB,
€ 213.00
42036
420361055
ref: 42036
SLEEVE,L=25
420361055
€ 19.00
42041
420411354
ref: 42041
SPROCKET-HUB,41T
420411354
€ 42.50
92004
920041062
ref: 92004
STUD,10X18
920041062
€ 5.00
92015
920151720
ref: 92015
NUT,10MM
920151720
€ 3.50
92015A
920151947
ref: 92015A
NUT
920151947
€ 6.50
92022
920221916
ref: 92022
WASHER
920221916
€ 3.00
92027
920271785
ref: 92027
COLLAR,RR HUB
920271785
€ 20.50
92033
920331042
ref: 92033
CIRCLIP,47M/M
920331042
€ 4.00
92049
920491056
ref: 92049
OIL SEAL,BJN28475
920491056
€ 8.50
92052
92052006
ref: 92052
OIL SEAL WTC35527
92052006
€ 6.50
92057
920571296
ref: 92057
CHAIN,DRIVE,EK520SX-O
€ 151.50
92075
920751436
ref: 92075
DAMPER,RR HUB SHOCK
920751436
€ 65.00
92143
921431416
ref: 92143
COLLAR,RR HUB,L=111
€ 16.50
