RADIATOR

EX500D2 NINJA 500 1995 USA CALIFORNIA CANADA

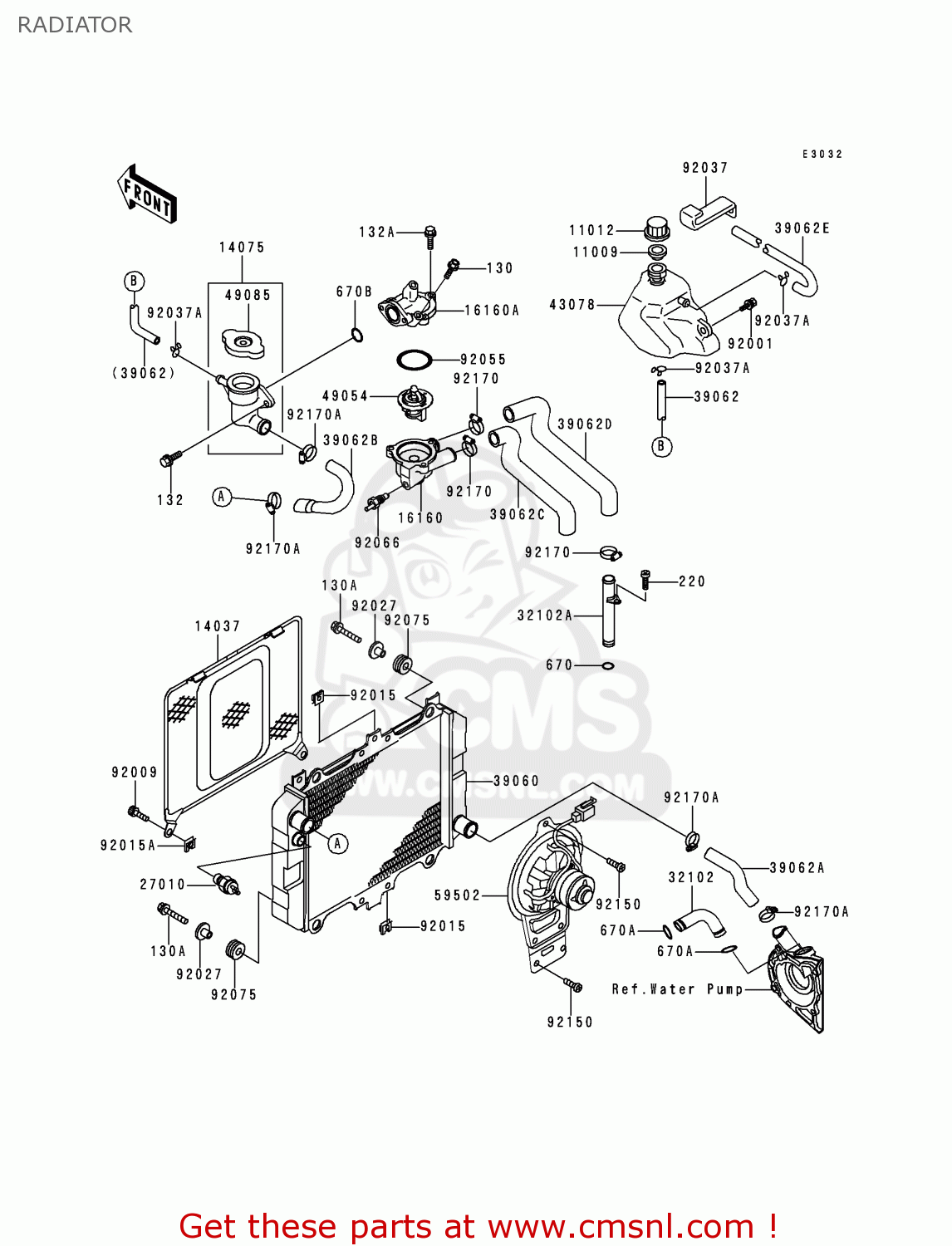

Radiator diagram EX500D2 NINJA 500 1995 USA CALIFORNIA CANADA

RADIATOR EX500D2 NINJA 500 1995 USA CALIFORNIA CANADA
RADIATOR EX500D2 NINJA 500 1995 USA CALIFORNIA CANADA
RADIATOR EX500D2 NINJA 500 1995 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
130
130B0614
ref: 130
BOLT-FLANGED
130B0614
€ 0.50
130A
130J0620
ref: 130A
BOLT-FLANGED,6X20
130J0620
€ 2.50
132
132G0616
ref: 132
BOLT-FLANGED-SMALL
132G0616
€ 1.00
132A
132G0620
ref: 132A
BOLT-FLANGED-SMALL
132G0620
€ 1.50
220
220B0612
ref: 220
SCREW-PAN HEAD,6X12
220B0612
€ 1.00
670
670B2014
ref: 670
O RING,14MM
670B2014
€ 1.00
670A
670B2018
ref: 670A
O RING,18MM
670B2018
€ 1.00
11009
110091145
ref: 11009
GASKET,RESERVOIR TANK (NAS)
110091145
€ 1.00
11012
110121084
ref: 11012
CAP
110121084
€ 1.50
14037
140371143
ref: 14037
SCREEN
140371143
€ 69.50
14075
140751085
ref: 14075
CAP-ASSY,RADIATOR
140751085
€ 120.00
16160
161601138
ref: 16160
BODY,THERMOSTAT,LWR
161601138
€ 24.50
16160A
161601170
ref: 16160A
BODY,THERMOSTAT,UPP
161601170
€ 49.00
27010
270101304
ref: 27010
SWITCH,THERMOSTAT
270101304
€ 63.00
32102
321021405
ref: 32102
PIPE,PUMP-CYLINDER
321021405
€ 29.50
32102A
321021473
ref: 32102A
PIPE
321021473
€ 25.50
39060
390601084
ref: 39060
RADIATOR
€ 681.50
39062
390621195
ref: 39062
HOSE-COOLING,L=447
€ 17.50
39062A
390621222
ref: 39062A
HOSE-COOLING,RADIATOR
390621222
€ 18.00
39062B
390621223
ref: 39062B
HOSE-COOLING,CAP-RADI
390621223
€ 26.50
39062C
390621224
ref: 39062C
HOSE-COOLING,THERMO-H
390621224
€ 20.50
39062D
390621225
ref: 39062D
HOSE-COOLING,THERMO-H
390621225
€ 24.00
39062E
390621257
ref: 39062E
HOSE-COOLING
€ 21.50
43078
430781084
ref: 43078
RESERVOIR
430781084
€ 38.00
49054
490541059
ref: 49054
THERMOSTAT
490541059
€ 41.50
49085
490851066
ref: 49085
CAP-ASSY-PRESSURE
490851066
€ 23.50
59502
595021070
ref: 59502
FAN-ASSY
595021070
€ 570.50
92001
920011516
ref: 92001
BOLT,W/WASHER,6X12
920011516
€ 3.00
92009
920091480
ref: 92009
SCREW
920091480
€ 2.00
92015
920151487
ref: 92015
NUT
920151487
€ 3.00
92015A
920151758
ref: 92015A
NUT
920151758
€ 4.50
92027
920271651
ref: 92027
COLLAR
920271651
€ 2.50
92037
920371316
ref: 92037
CLAMP
€ 1.50
92037A
92037147
ref: 92037A
CLAMP,CHAIN OILER
92037147
€ 4.50
92055
920551279
ref: 92055
RING-O,45MM
920551279
€ 4.50
92066
920661118
ref: 92066
PLUG,SENSOR WATOR
920661118
€ 50.00
92075
92075277
ref: 92075
DAMPER
92075277
€ 1.00
92150
921501186
ref: 92150
BOLT
921501186
€ 3.00
92170
921701077
ref: 92170
CLAMP,COOLING HOSE
921701077
€ 6.50
92170A
921701286
ref: 92170A
CLAMP
921701286
€ 13.00
670B
670B2020
ref: 670B
O RING,20MM
670B2020
€ 1.00
