IGNITION SWITCH/LOCKS/REFLECTORS

EX500D2 NINJA 500 1995 USA CALIFORNIA CANADA

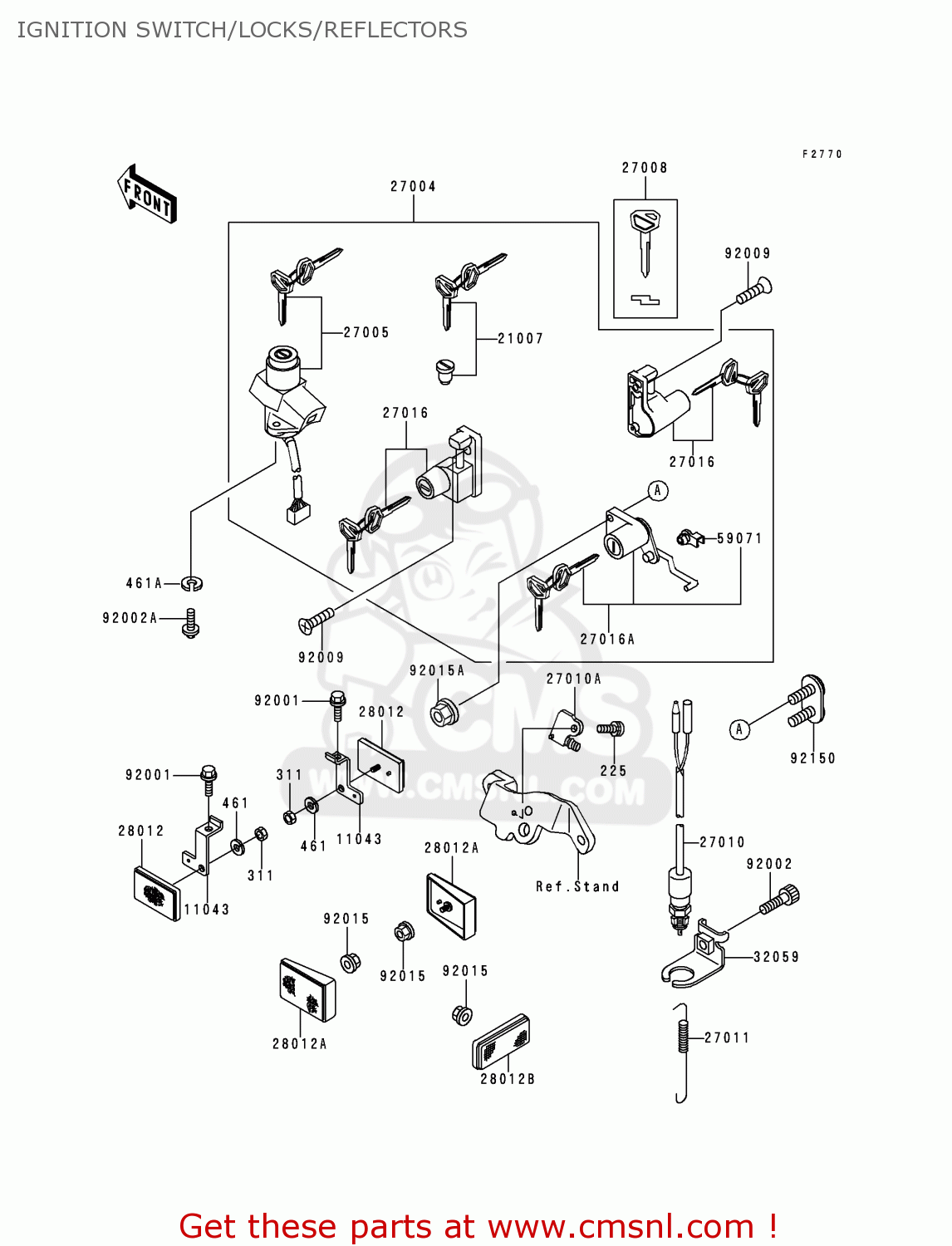

Ignition switch/locks/reflectors diagram EX500D2 NINJA 500 1995 USA CALIFORNIA CANADA

IGNITION SWITCH/LOCKS/REFLECTORS EX500D2 NINJA 500 1995 USA CALIFORNIA CANADA
IGNITION SWITCH/LOCKS/REFLECTORS EX500D2 NINJA 500 1995 USA CALIFORNIA CANADA
IGNITION SWITCH/LOCKS/REFLECTORS EX500D2 NINJA 500 1995 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
225
225C0416
ref: 225
SCREW-PAN-WSP-CROS
€ 2.50
311
311B0500
ref: 311
NUT-HEX
311B0500
€ 0.50
461
461F0500
ref: 461
WASHER-SPRING,5MM
461F0500
€ 0.50
461A
461L0600
ref: 461A
WASHER-SPRING
€ 0.50
11043
110431423
ref: 11043
BRACKET,FR,REFLECTOR
€ 6.50
21007
210075037
ref: 21007
ROTOR,LOCK,TANK CAP
210075037
€ 65.50
27004
270045464
ref: 27004
SWITCH ASSEMBLY
€ 235.00
27005
270055101
ref: 27005
SWITCH-ASSY-IGNITION
€ 246.00
27008
270081173
ref: 27008
KEY-LOCK,BLANK
270081173
€ 13.00
27010
270101152
ref: 27010
SWITCH,BRAKE LAMP
270101152
€ 20.00
27010A
270101185
ref: 27010A
SWITCH,BRAKE/SIDE STA
270101185
€ 25.50
27011
27011006
ref: 27011
SPRING-BRAKE LAMP SW
27011006
€ 3.50
27016
270165211
ref: 27016
LOCK-ASSY,HELMET
270165211
€ 56.50
27016A
270165217
ref: 27016A
LOCK-ASSY,SEAT
270165217
€ 54.00
28012
280121003
ref: 28012
REFLECTOR,REFLEX
280121003
€ 15.00
28012A
280121056
ref: 28012A
REFLECTOR,REAR,REFLEX
280121056
€ 13.50
28012B
280121077
ref: 28012B
REFLECTOR-REFLEX
280121077
€ 16.00
32059
320591121
ref: 32059
BRACKET-SWITCH,REAR B
€ 6.50
59071
590711103
ref: 59071
JOINT
590711103
€ 5.50
92001
920011847
ref: 92001
BOLT,6X14,BLACK
920011847
€ 2.50
92002
920021175
ref: 92002
BOLT,SOCKET,6X14
920021175
€ 3.00
92002A
920021333
ref: 92002A
BOLT
920021333
€ 1.50
92009
920091305
ref: 92009
SCREW,5X16
920091305
€ 2.50
92015
920151259
ref: 92015
NUT,FLANGED,5MM
920151259
€ 2.50
92015A
920151328
ref: 92015A
NUT,FLANGED,5MM
920151328
€ 2.00
92150
921501820
ref: 92150
BOLT,SEAT LOCK
921501820
€ 2.00
