OWNER'S TOOLS

EX500D1 GPZ500S 1994 UNITED KINGDOM SD

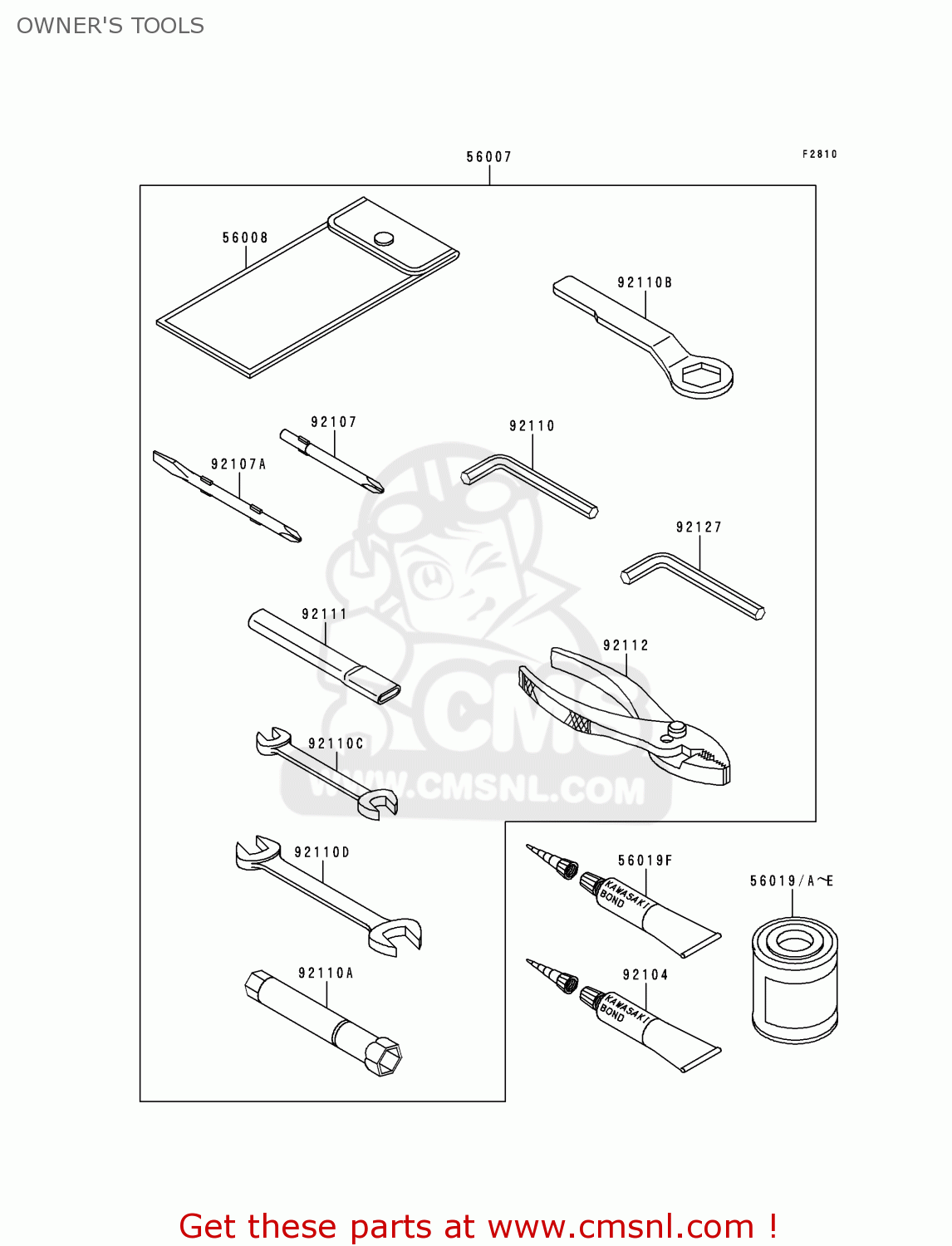

Owner's tools diagram EX500D1 GPZ500S 1994 UNITED KINGDOM SD

OWNER'S TOOLS EX500D1 GPZ500S 1994 UNITED KINGDOM SD

OWNER'S TOOLS EX500D1 GPZ500S 1994 UNITED KINGDOM SD

prices are in EUR

ref

part #

description

quantity

56007

560071385
ref: 56007

TOOL-KIT

€ 127.50

56008

560081075
ref: 56008

BAG TOOL

€ 12.00

56019C

56019108H3
ref: 56019C

PAINT,1/12L,C.W.RED

€ 18.00

56019E

5601910820
ref: 56019E

PAINT,1/12L,P.P.BLACK

€ 18.00

56019F

56019120
ref: 56019F

BOND,#10

€ 41.00

92104

92104002
ref: 92104

LIQUID GASKET

€ 69.50

92107

92107005
ref: 92107

SCREW DRIVER-#3 PHLIP

€ 7.00

92107A

921071053
ref: 92107A

TOOL DRIVER#2PHILLIPS

€ 6.50

92110

921101015
ref: 92110

WRENCH,ALLEN

€ 7.50

92110A

921101112
ref: 92110A

TOOL-WRENCH,BOX,18MM

€ 13.50

92110B

921101150
ref: 92110B

TOOL-WRENCH,BOX END,2

€ 14.50

92110C

921101152
ref: 92110C

TOOL-WRENCH,OPEN END,

€ 13.50

92110D

921101153
ref: 92110D

TOOL-WRENCH,OPEN END,

€ 12.50

92111

921111051
ref: 92111

TOOL-BAR

€ 8.00

92112

92112003
ref: 92112

PLIERS,150MM

€ 18.00

92127

92127003
ref: 92127

TOOL-WRENCH,ALLEN,6MM

€ 7.50
