Genuine EX Kawasaki Parts delivered quickly!


CARBURETOR PARTS

EX500D1 GPZ500S 1994 UNITED KINGDOM SD

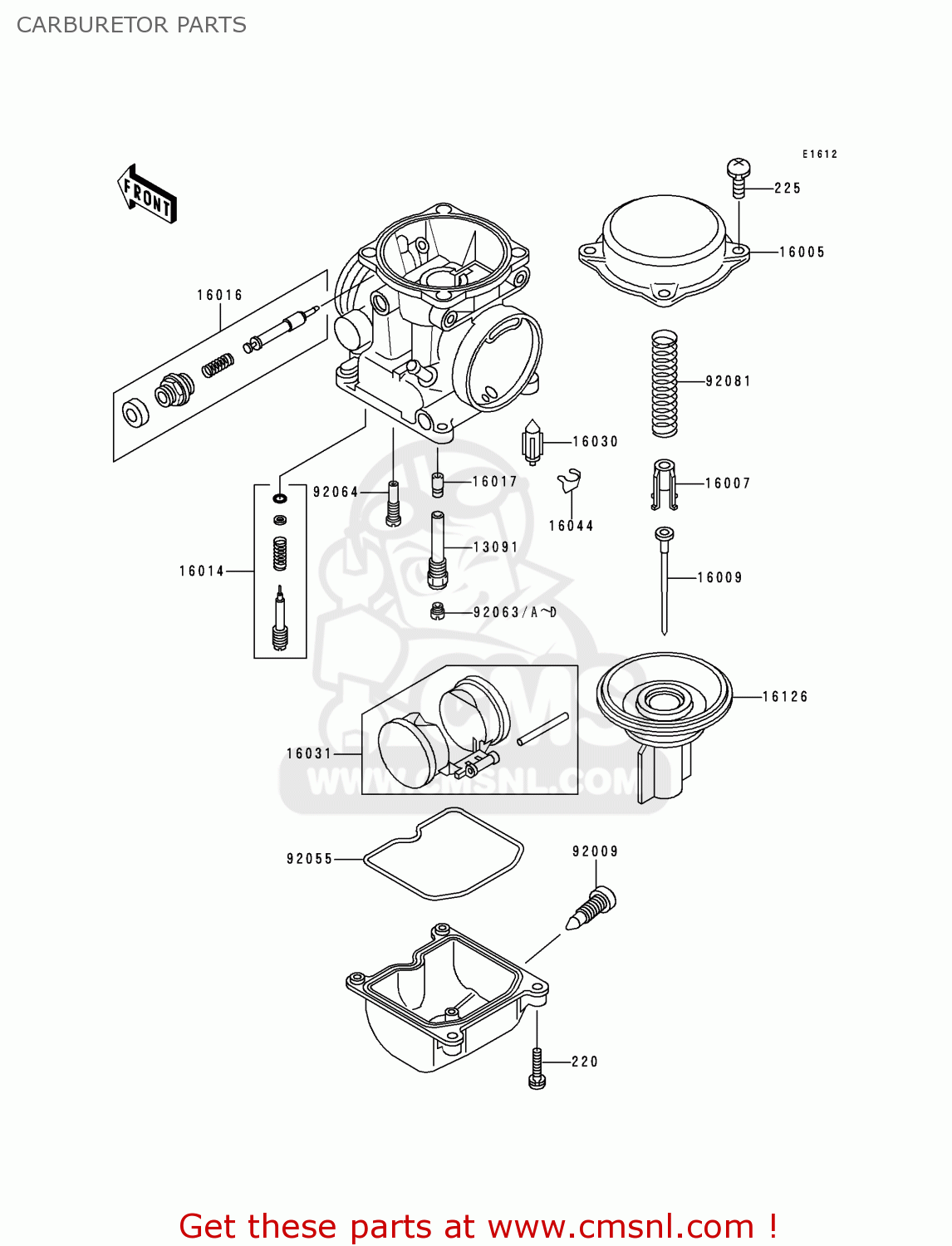

Carburetor parts diagram EX500D1 GPZ500S 1994 UNITED KINGDOM SD

CARBURETOR PARTS EX500D1 GPZ500S 1994 UNITED KINGDOM SD
CARBURETOR PARTS EX500D1 GPZ500S 1994 UNITED KINGDOM SD
CARBURETOR PARTS EX500D1 GPZ500S 1994 UNITED KINGDOM SD
prices are in EUR
ref
part #
description
quantity
220
220D0414
ref: 220
SCREW-PAN-CROS
220D0414
€ 2.00
225
225C0418
ref: 225
SCREW-PAN-WSP-CROS
225C0418
€ 2.50
13091
130911406
ref: 13091
HOLDER,NEEDLE JET
130911406
€ 19.00
16005
160051057
ref: 16005
TOP-CHAMBER,MIXING,27
160051057
€ 30.50
16007
160071117
ref: 16007
SEAT-SPRING,THROTTLE
160071117
€ 16.50
16009
160091342
ref: 16009
NEEDLE-JET,N36N
160091342
€ 24.00
16014
160141081
ref: 16014
SCREW-PILOT AIR
160141081
€ 15.50
16016
160161090
ref: 16016
PLUNGER,STARTER
160161090
€ 46.50
16017
160171208
ref: 16017
JET-NEEDLE,#6
€ 37.00
16030
160301007
ref: 16030
FLOAT VALVE ASSY
160301007
€ 37.00
16031
160311077
ref: 16031
FLOAT
160311077
€ 39.00
16044
16044007
ref: 16044
CLIP, FLOAT VALVE
16044007
€ 4.00
16126
161261173
ref: 16126
VALVE,VACUUM
161261173
€ 159.50
92009
920091551
ref: 92009
SCREW,DRAIN
920091551
€ 6.50
92055
920551222
ref: 92055
RING-O,FLOAT CHAMBER
920551222
€ 12.50
92063
920631014
ref: 92063
MAIN JET,#135
920631014
€ 9.50
92063A
920631069
ref: 92063A
MAIN JET,2ND #125
920631069
€ 9.50
92063B
920631074
ref: 92063B
MAIN JET,2ND #128
920631074
€ 9.50
92063C
920631075
ref: 92063C
MAIN JET,2ND #130
920631075
€ 9.50
92063D
920631076
ref: 92063D
JET-MAIN,#132
920631076
€ 9.50
92064
920641101
ref: 92064
JET-PILOT,#35
920641101
€ 11.50
92081
920811874
ref: 92081
SPRING,VACUUM VALVE
920811874
€ 17.50
