GEAR CHANGE DRUM/SHIFT FORK(S)

EX500D1 GPZ500S 1994 UNITED KINGDOM SD

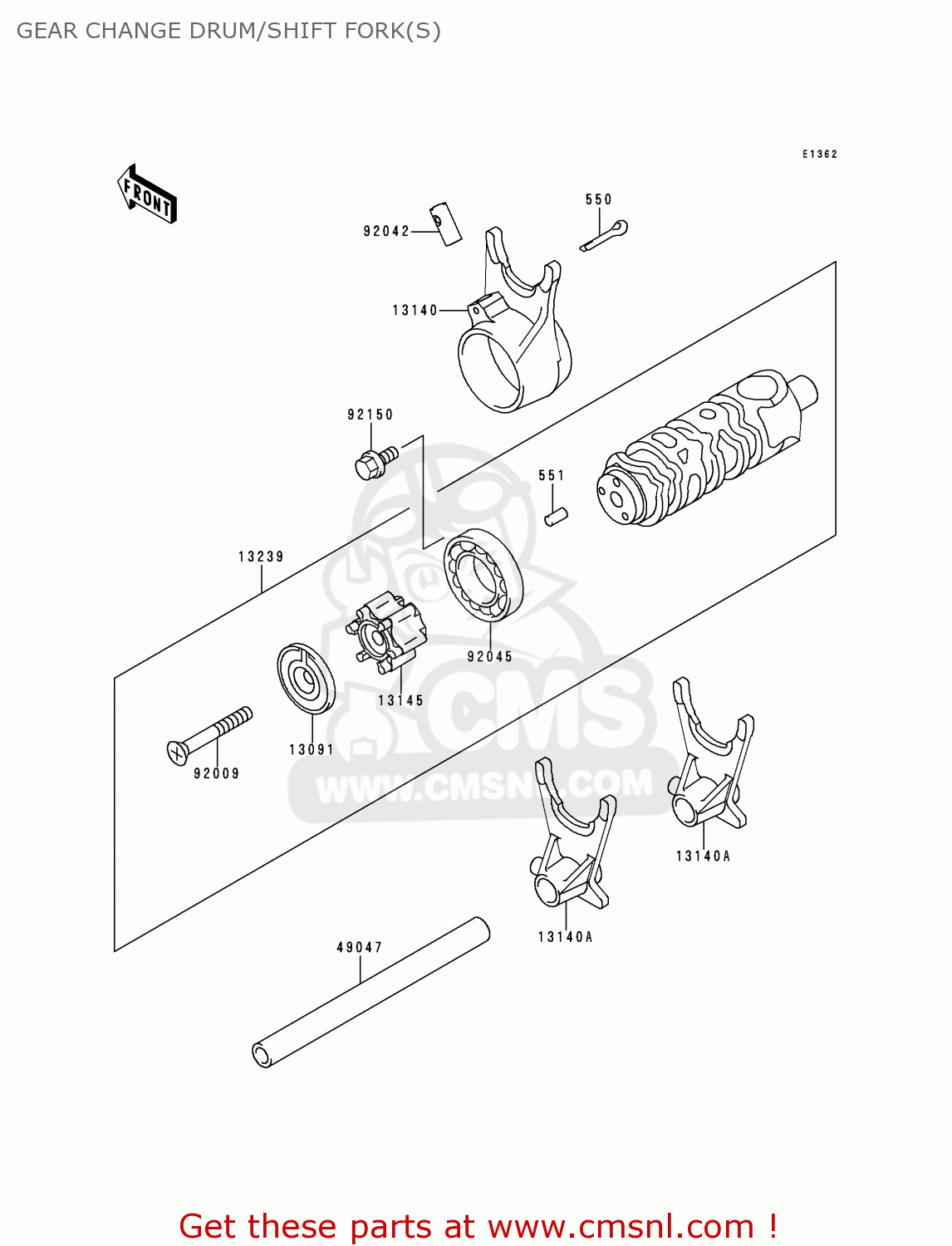

Gear change drum/shift fork(s) diagram EX500D1 GPZ500S 1994 UNITED KINGDOM SD

GEAR CHANGE DRUM/SHIFT FORK(S) EX500D1 GPZ500S 1994 UNITED KINGDOM SD

GEAR CHANGE DRUM/SHIFT FORK(S) EX500D1 GPZ500S 1994 UNITED KINGDOM SD

prices are in EUR

ref

part #

description

quantity

550

550D3020
ref: 550

PIN-COTTER,3.0X20

€ 2.00

551

551A0408
ref: 551

PIN-DOWEL,4X8

€ 0.50

13091

130911351
ref: 13091

HOLDER,CHANGE DRUM

€ 18.00

13140

131401016
ref: 13140

FORK-SHIFT,DRIVE

€ 74.50

13140A

131401062
ref: 13140A

FORK-SHIFT,OUTPUT

€ 74.50

13145

131451056
ref: 13145

CAM-CHANGE DRUM

€ 39.50

13239

132391118
ref: 13239

DRUM-ASSY-CHANGE

€ 176.00

49047

490471061
ref: 49047

ROD-SHIFT

€ 14.50

92009

920091599
ref: 92009

SCREW

€ 2.50

92042

92042021
ref: 92042

PIN,DOWEL,8X18

€ 7.00

92045

92045036
ref: 92045

BEARING-BALL,#6905

€ 29.00

92150

921501826
ref: 92150

BOLT,6X12

€ 2.50
