RADIATOR/FAN/WATER PUMP

EX500A7 1993 USA CALIFORNIA CANADA

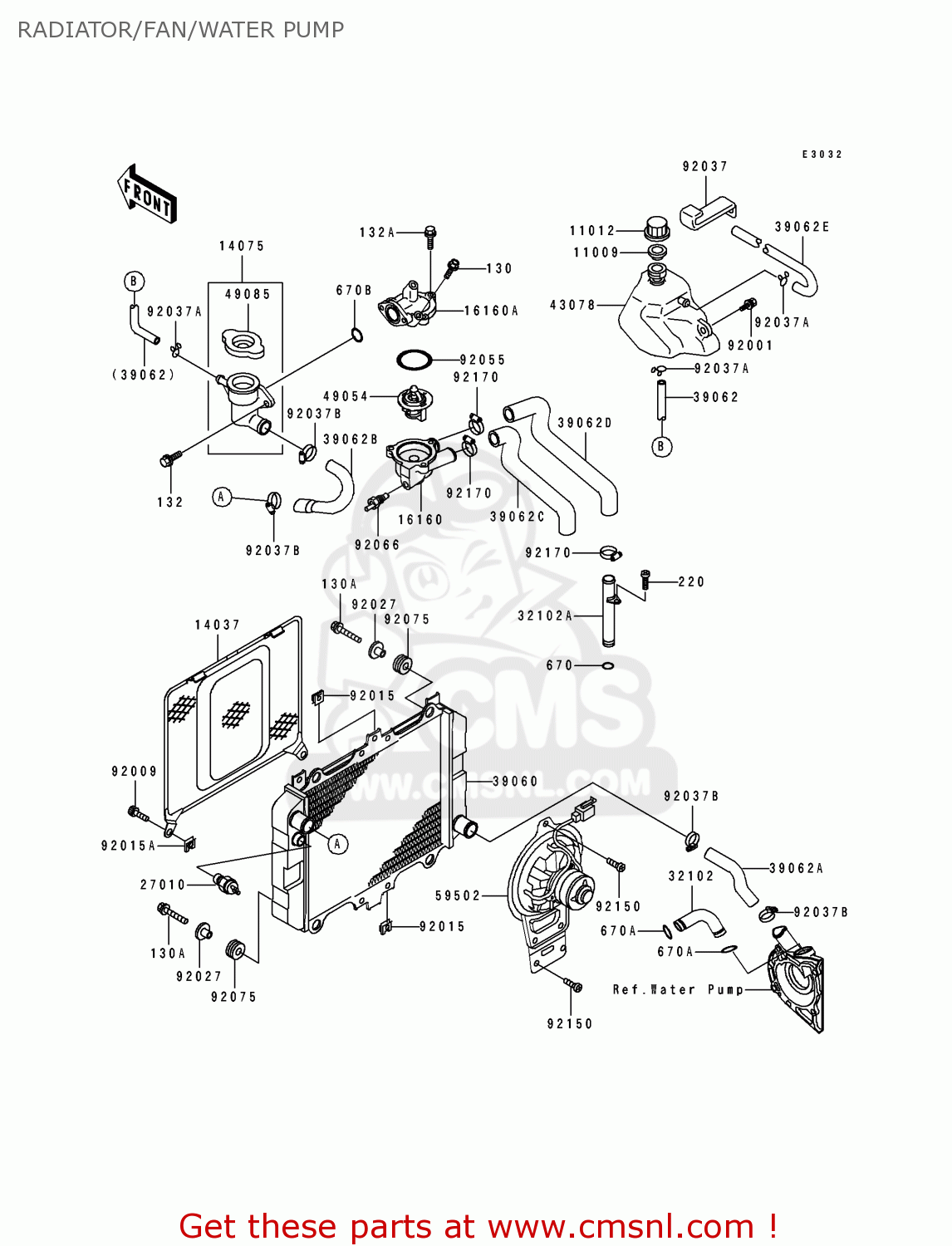

Radiator/fan/water pump diagram EX500A7 1993 USA CALIFORNIA CANADA

RADIATOR/FAN/WATER PUMP EX500A7 1993 USA CALIFORNIA CANADA
RADIATOR/FAN/WATER PUMP EX500A7 1993 USA CALIFORNIA CANADA
RADIATOR/FAN/WATER PUMP EX500A7 1993 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
130
130B0614
ref: 130
BOLT-FLANGED
130B0614
€ 0.50
130A
130J0620
ref: 130A
BOLT-FLANGED,6X20
130J0620
€ 2.50
132
132G0616
ref: 132
BOLT-FLANGED-SMALL
132G0616
€ 1.00
132A
132G0620
ref: 132A
BOLT-FLANGED-SMALL
132G0620
€ 1.50
220
220B0612
ref: 220
SCREW-PAN HEAD,6X12
220B0612
€ 1.00
670
670B2014
ref: 670
O RING,14MM
670B2014
€ 1.00
670A
670B2018
ref: 670A
O RING,18MM
670B2018
€ 1.00
11009
110091145
ref: 11009
GASKET,RESERVOIR TANK (NAS)
110091145
€ 1.00
11012
110121084
ref: 11012
CAP
110121084
€ 1.50
14037
140371143
ref: 14037
SCREEN
140371143
€ 69.50
14075
140751085
ref: 14075
CAP-ASSY,RADIATOR
140751085
€ 120.00
16160
161601138
ref: 16160
BODY,THERMOSTAT,LWR
161601138
€ 24.50
16160A
161601170
ref: 16160A
BODY,THERMOSTAT,UPP
161601170
€ 49.00
27010
270101304
ref: 27010
SWITCH,THERMOSTAT
270101304
€ 63.00
32102
321021405
ref: 32102
PIPE,PUMP-CYLINDER
321021405
€ 29.50
32102A
321021473
ref: 32102A
PIPE
321021473
€ 25.50
39060
390601084
ref: 39060
RADIATOR
€ 681.50
39062
390621195
ref: 39062
HOSE-COOLING,L=447
€ 17.50
39062A
390621222
ref: 39062A
HOSE-COOLING,RADIATOR
390621222
€ 18.00
39062B
390621223
ref: 39062B
HOSE-COOLING,CAP-RADI
390621223
€ 26.50
39062C
390621224
ref: 39062C
HOSE-COOLING,THERMO-H
390621224
€ 20.50
39062D
390621225
ref: 39062D
HOSE-COOLING,THERMO-H
390621225
€ 24.00
39062E
390621257
ref: 39062E
HOSE-COOLING
€ 21.50
43078
430781084
ref: 43078
RESERVOIR
430781084
€ 38.00
49054
490541059
ref: 49054
THERMOSTAT
490541059
€ 41.50
49085
490851062
ref: 49085
CAP-ASSY-PRESSURE
€ 23.50
59502
595021070
ref: 59502
FAN-ASSY
595021070
€ 570.50
92001
920011516
ref: 92001
BOLT,W/WASHER,6X12
920011516
€ 3.00
92009
920091480
ref: 92009
SCREW
920091480
€ 2.00
92015
920151487
ref: 92015
NUT
920151487
€ 3.00
92015A
920151758
ref: 92015A
NUT
920151758
€ 4.50
92027
920271651
ref: 92027
COLLAR
920271651
€ 2.50
92037
920371316
ref: 92037
CLAMP
€ 1.50
92037A
92037147
ref: 92037A
CLAMP,CHAIN OILER
92037147
€ 4.50
92037B
920371989
ref: 92037B
CLAMP
€ 13.00
92055
920551279
ref: 92055
RING-O,45MM
920551279
€ 4.50
92066
920661118
ref: 92066
PLUG,SENSOR WATOR
920661118
€ 50.00
92075
92075277
ref: 92075
DAMPER
92075277
€ 1.00
92150
921501186
ref: 92150
BOLT
921501186
€ 3.00
92170
921701077
ref: 92170
CLAMP,COOLING HOSE
921701077
€ 6.50
670B
670B2020
ref: 670B
O RING,20MM
670B2020
€ 1.00
