CARBURETOR PARTS
EX500A7 1993 USA CALIFORNIA CANADA

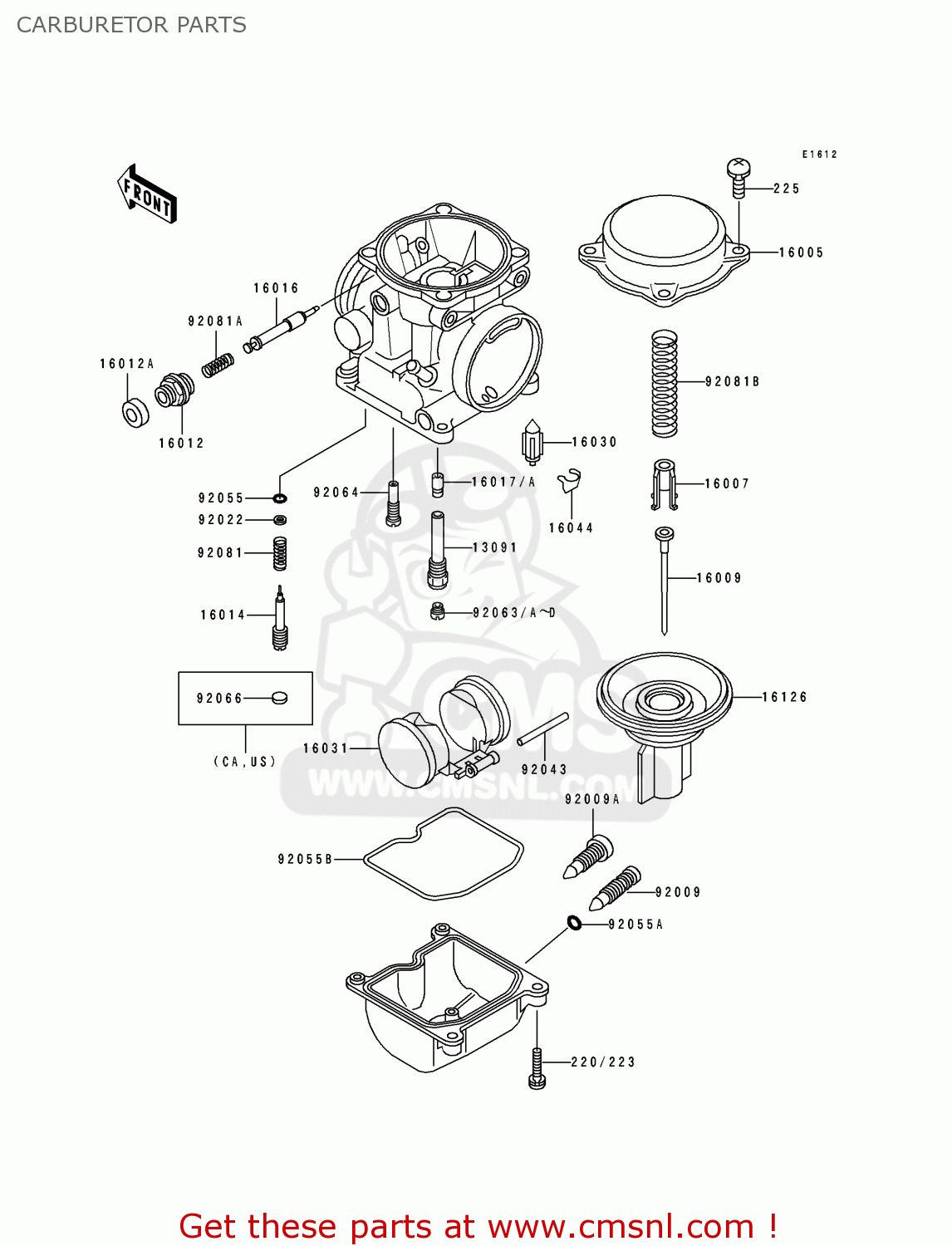

Carburetor parts diagram EX500A7 1993 USA CALIFORNIA CANADA
CARBURETOR PARTS EX500A7 1993 USA CALIFORNIA CANADA
×
prices are in EUR
ref
part #
description
quantity
220
220D0414
ref: 220
CN
SCREW-PAN-CROS
€ 2.00
223
223C0416
ref: 223
CAUS
SCREW-PAN-WS-CROS
€ 2.50
13091
130911406
ref: 13091
HOLDER,NEEDLE JET
€ 19.00
16005
160051057
ref: 16005
TOP-CHAMBER,MIXING,27
€ 30.50
16007
160071117
ref: 16007
SEAT-SPRING,THROTTLE
€ 16.50
16009
160091342
ref: 16009
NEEDLE-JET,N36N
€ 24.00
16012
160121051
ref: 16012
CAP-STARTER PLUNGER
€ 7.00
16012A
160121052
ref: 16012A
CAP-STARTER PLUNGER
€ 10.00
16014
160141054
ref: 16014
SCREW-PILOT AIR
€ 15.50
16016
160161061
ref: 16016
PLUNGER,STARTER
€ 30.50
16017
160171059
ref: 16017
CAUS
JET-NEEDLE
€ 33.00
16017A
160171208
ref: 16017A
CN
JET-NEEDLE,#6
€ 37.00
16030
160301007
ref: 16030
FLOAT VALVE ASSY
€ 37.00
16031
160311056
ref: 16031
FLOAT
€ 39.00
16044
16044007
ref: 16044
CLIP, FLOAT VALVE
€ 4.00
16126
161261173
ref: 16126
VALVE,VACUUM
€ 159.50
92009
920091095
ref: 92009
SCREW,DRAIN
€ 10.00
92009A
920091551
ref: 92009A
SCREW,DRAIN
€ 6.50
92022
920221003
ref: 92022
WASHER,PLAIN
€ 2.50
92043
920431207
ref: 92043
PIN,FLOAT
€ 6.00
92055
920551002
ref: 92055
O RING,PILOT ADJUST
€ 2.50
92055A
920551053
ref: 92055A
O RING,DRAIN SCREW
€ 3.00
92055B
920551222
ref: 92055B
RING-O,FLOAT CHAMBER
€ 12.50
92063
920631014
ref: 92063
MAIN JET,#135
€ 9.50
92063A
920631069
ref: 92063A
MAIN JET,2ND #125
€ 9.50
92063B
920631074
ref: 92063B
MAIN JET,2ND #128
€ 9.50
92063C
920631075
ref: 92063C
MAIN JET,2ND #130
€ 9.50
92063D
920631076
ref: 92063D
JET-MAIN,#132
€ 9.50
92064
920641101
ref: 92064
JET-PILOT,#35
€ 11.50
92066
920661051
ref: 92066
CAUS
PLUG,PILOT AIR SCREW,
€ 3.00
92081
920811002
ref: 92081
SPRING,PIROT ADJ SCRW
€ 3.50
92081A
920811761
ref: 92081A
SPRING,STARTER PLUNGE
€ 6.00
92081B
920811874
ref: 92081B
SPRING,VACUUM VALVE
€ 17.50
225
225C0418
ref: 225
SCREW-PAN-WSP-CROS
€ 2.50
