CRANKCASE BOLT PATTERN
EX500A7 1993 USA CALIFORNIA CANADA

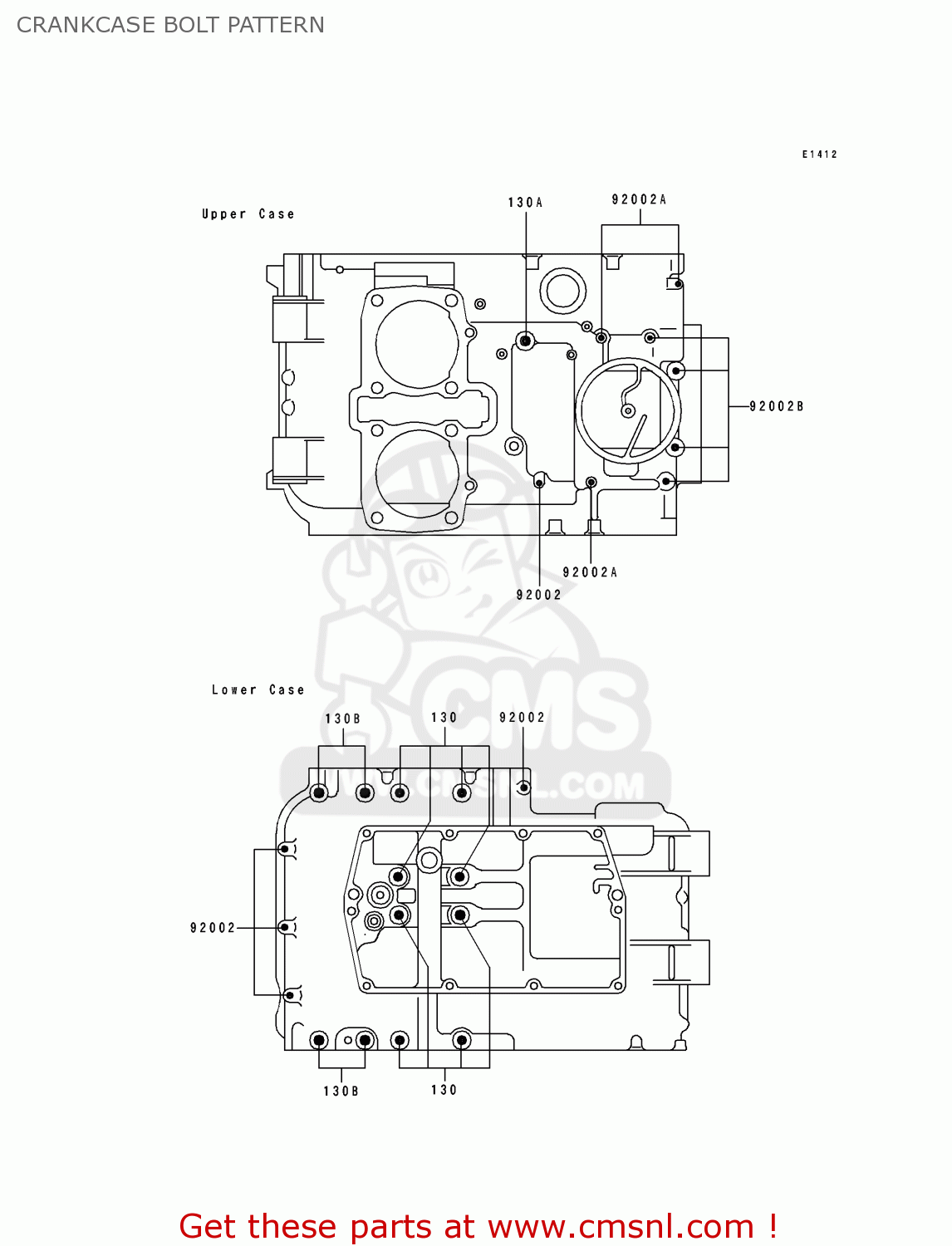

Crankcase bolt pattern diagram EX500A7 1993 USA CALIFORNIA CANADA
CRANKCASE BOLT PATTERN EX500A7 1993 USA CALIFORNIA CANADA
×
prices are in EUR
ref
part #
description
quantity
130
130Z08100
ref: 130
BOLT-FLANGED
€ 7.50
130A
130Z0855
ref: 130A
BOLT-FLANGED
€ 3.50
130B
130Z0875
ref: 130B
BOLT-FLANGED
€ 6.00
92002
920021566
ref: 92002
BOLT,6X40
€ 3.00
92002A
920021567
ref: 92002A
BOLT,6X60
€ 3.50
92002B
920021568
ref: 92002B
BOLT,6X80
€ 4.00
