STANDS

EX500A4 1990 USA CALIFORNIA CANADA

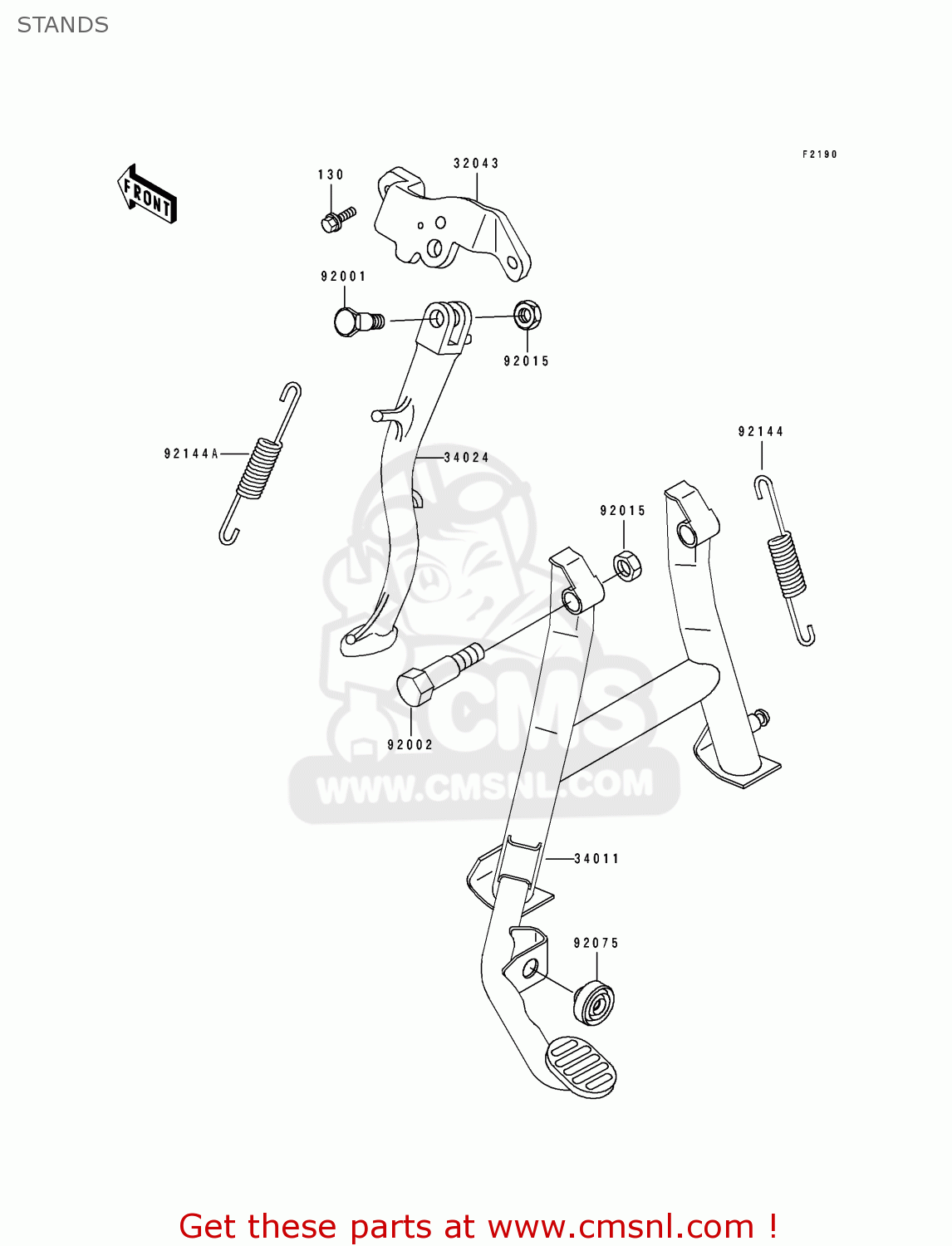

Stands diagram EX500A4 1990 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

130

130J0816
ref: 130

BOLT-FLANGED,8X16,BLA

€ 0.50

32043

320431329
ref: 32043

SIDE STAND BRACKET

€ 35.00

34011

340111138
ref: 34011

STAND-CENTER

€ 137.50

34024

340241255
ref: 34024

STAND-SIDE

€ 74.50

92001

920011788
ref: 92001

BOLT,SIDE STAND

€ 6.50

92002

920021954
ref: 92002

BOLT,CENTER STAND

€ 7.00

92015

920151188
ref: 92015

NUT,LOCK,10MM,BLACK

€ 4.00

92075

920751045
ref: 92075

DAMPER,STAND STOPPER

€ 5.00

92144

921441366
ref: 92144

SPRING,CENTER STAND

€ 8.50

92144A

921441367
ref: 92144A

SIDE STAND SPRING

€ 6.00
