FRAME
EX500A4 1990 USA CALIFORNIA CANADA

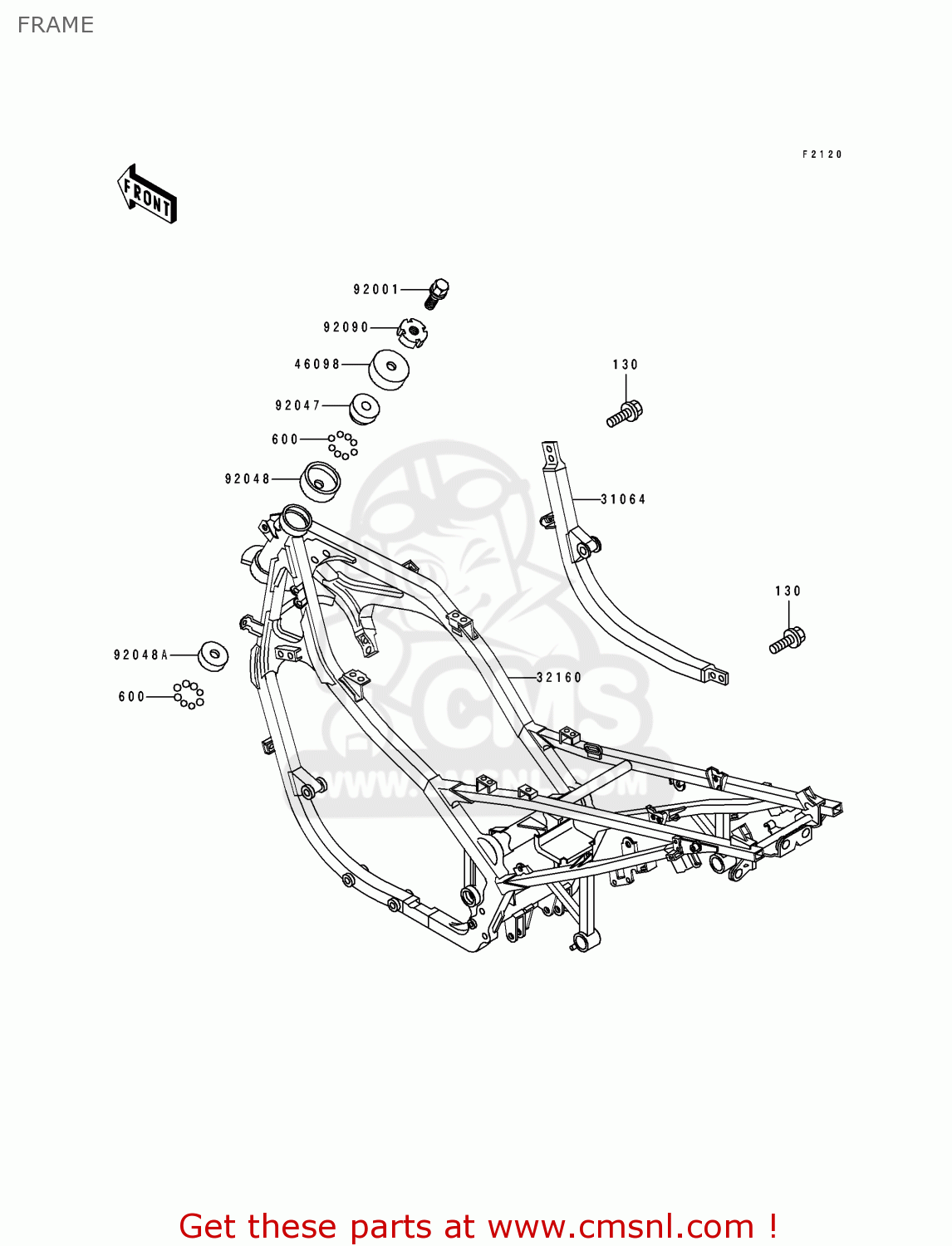

Frame diagram EX500A4 1990 USA CALIFORNIA CANADA
FRAME EX500A4 1990 USA CALIFORNIA CANADA
×
prices are in EUR
ref
part #
description
quantity
130
130J1020
ref: 130
BOLT-FLANGED
€ 3.50
600
600A0800
ref: 600
BALL-STEEL,1/4
€ 0.50
31064
310641107
ref: 31064
FRAME PIPE,COMPLETE,RH
€ 92.50
32160
321601036
ref: 32160
FRAME,COMPLETE
€ 932.00
46098
46098016
ref: 46098
CAP,STEERING STEM
€ 4.00
92001
920011488
ref: 92001
BOLT,FLANGED,16X22
€ 13.50
92047
92047011
ref: 92047
CONE-STRNG STM BRNG
€ 14.50
92048
92048006
ref: 92048
RACE-STRNG BEARIN-STE
€ 11.50
92048A
92048008
ref: 92048A
RACE-STRNG STM BRNG
€ 16.00
92090
92090007
ref: 92090
NUT-STEERING STEM LCK
€ 8.00
