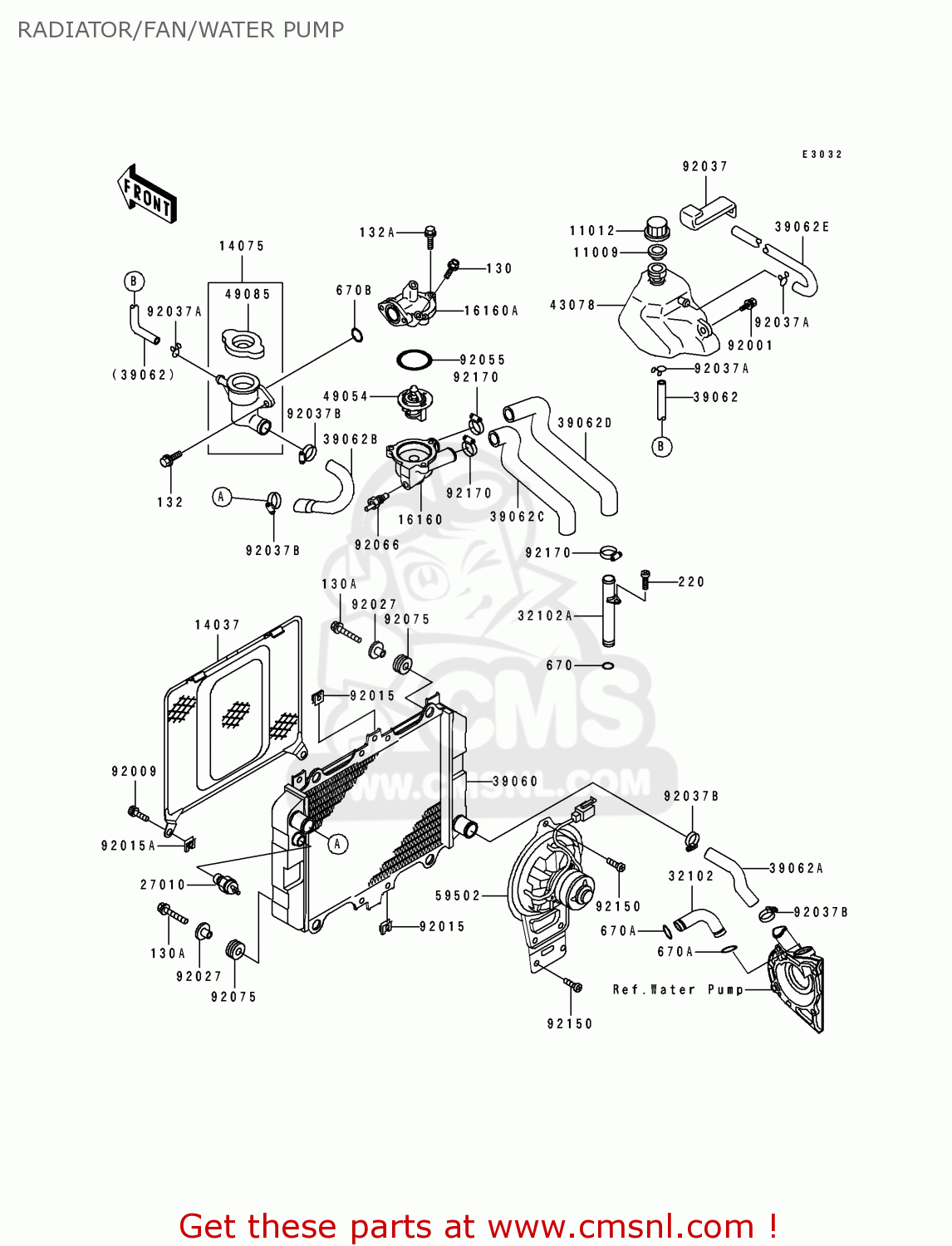

RADIATOR/FAN/WATER PUMP

ref

part #

description

quantity

130

130B0614
ref: 130

BOLT-FLANGED

€ 0.50

130A

130J0620
ref: 130A

BOLT-FLANGED,6X20

€ 2.50

132

132G0616
ref: 132

BOLT-FLANGED-SMALL

€ 1.00

132A

132G0620
ref: 132A

BOLT-FLANGED-SMALL

€ 1.50

220

220B0612
ref: 220

SCREW-PAN HEAD,6X12

€ 1.00

670

670B2014
ref: 670

O RING,14MM

€ 1.00

670A

670B2018
ref: 670A

O RING,18MM

€ 1.00

11009

110091145
ref: 11009

GASKET,RESERVOIR TANK (NAS)

€ 1.00

11012

110121084
ref: 11012

CAP

€ 1.50

14037

140371143
ref: 14037

SCREEN

€ 69.50

14075

140751085
ref: 14075

CAP-ASSY,RADIATOR

€ 120.00

16160

161601138
ref: 16160

BODY,THERMOSTAT,LWR

€ 24.50

16160A

161601170
ref: 16160A

BODY,THERMOSTAT,UPP

€ 49.00

27010

270101304
ref: 27010

SWITCH,THERMOSTAT

€ 63.00

32102

321021405
ref: 32102

PIPE,PUMP-CYLINDER

€ 29.50

32102A

321021473
ref: 32102A

PIPE

€ 25.50

39060

390601084
ref: 39060

RADIATOR

€ 681.50

39062

390621195
ref: 39062

HOSE-COOLING,L=447

€ 17.50

39062A

390621222
ref: 39062A

HOSE-COOLING,RADIATOR

€ 18.00

39062B

390621223
ref: 39062B

HOSE-COOLING,CAP-RADI

€ 26.50

39062C

390621224
ref: 39062C

HOSE-COOLING,THERMO-H

€ 20.50

39062D

390621225
ref: 39062D

HOSE-COOLING,THERMO-H

€ 24.00

39062E

390621257
ref: 39062E

HOSE-COOLING

€ 21.50

43078

430781084
ref: 43078

RESERVOIR

€ 38.00

49054

490541059
ref: 49054

THERMOSTAT

€ 41.50

49085

490851062
ref: 49085

CAP-ASSY-PRESSURE

€ 23.50

59502

595021070
ref: 59502

FAN-ASSY

€ 570.50

92001

920011516
ref: 92001

BOLT,W/WASHER,6X12

€ 3.00

92009

920091480
ref: 92009

SCREW

€ 2.00

92015

920151487
ref: 92015

NUT

€ 3.00

92015A

920151758
ref: 92015A

NUT

€ 4.50

92027

920271651
ref: 92027

COLLAR

€ 2.50

92037

920371316
ref: 92037

CLAMP

€ 1.50

92037A

92037147
ref: 92037A

CLAMP,CHAIN OILER

€ 4.50

92037B

920371989
ref: 92037B

CLAMP

€ 13.00

92055

920551279
ref: 92055

RING-O,45MM

€ 4.50

92066

920661118
ref: 92066

PLUG,SENSOR WATOR

€ 50.00

92075

92075277
ref: 92075

DAMPER

€ 1.00

92150

921501186
ref: 92150

BOLT

€ 3.00

92170

921701077
ref: 92170

CLAMP,COOLING HOSE

€ 6.50

670B

670B2020
ref: 670B

O RING,20MM

€ 1.00

all assemblies
