REAR HUB

EX400A3 GPZ400S 1989 SWEDEN

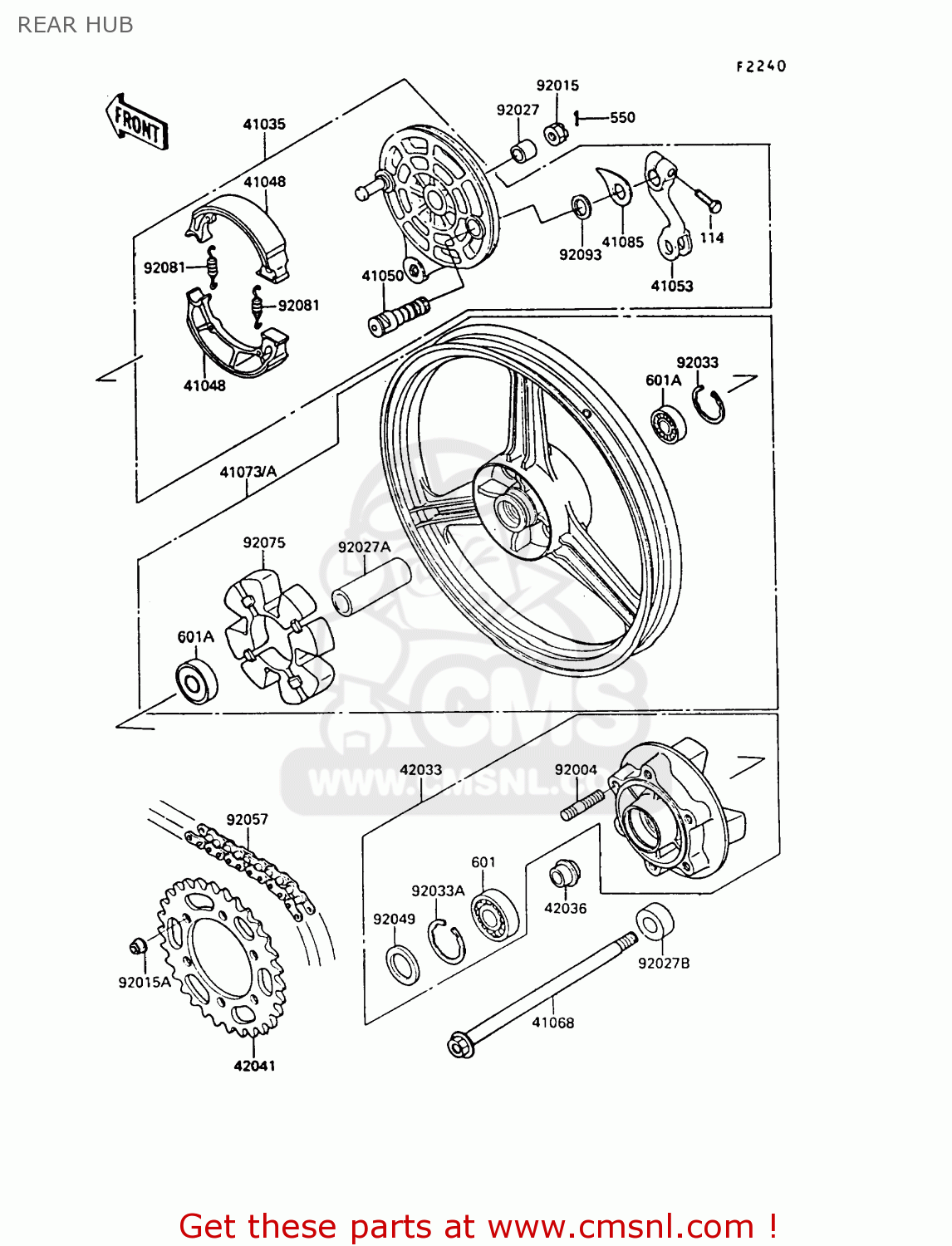

Rear hub diagram EX400A3 GPZ400S 1989 SWEDEN

REAR HUB EX400A3 GPZ400S 1989 SWEDEN
REAR HUB EX400A3 GPZ400S 1989 SWEDEN
REAR HUB EX400A3 GPZ400S 1989 SWEDEN
prices are in EUR
ref
part #
description
quantity
114
114G0828
ref: 114
BOLT-SMALL,8X28
€ 2.50
550
550D4035
ref: 550
PIN-COTTER,4.0X35
550D4035
€ 1.00
601
601B6205G
ref: 601
BEARING BALL
601B6205G
€ 14.00
601A
601B6303ZZ
ref: 601A
BEARING-BALL,#6303ZZC
601B6303ZZ
€ 32.50
41035
410351244
ref: 41035
PANEL-ASSY-BRAKE,RR
410351244
€ 351.50
41048
410481069
ref: 41048
SHOE-BRAKE (NAS)
410481069
€ 26.00
41050
410501065
ref: 41050
CAM-BRAKE
410501065
€ 29.00
41053
410531069
ref: 41053
LEVER-BRAKE CAM
410531069
€ 36.50
41068
42031053
ref: 41068
AXLE,REAR
€ 49.50
41073A
410731413X4
ref: 41073A
WHEEL-ASSY,RR,F.RED
€ 619.00
41085
41085004
ref: 41085
INDICATOR,BRAKE SHOE
41085004
€ 10.00
42033
420331114
ref: 42033
COUPLING-ASSY,RR HUB
420331114
€ 204.50
42036
420361146
ref: 42036
SLEEVE,RR HUB,L=33
420361146
€ 34.00
42041
420411279
ref: 42041
SPROCKET-HUB,42T
420411279
€ 40.00
92004
920041146
ref: 92004
STUD,10X24
920041146
€ 4.00
92015
42045014
ref: 92015
NUT CASTLE, 16M/M
42045014
€ 6.50
92015A
920151502
ref: 92015A
NUT,FLANGED,10MM
920151502
€ 7.00
92027
920271484
ref: 92027
COLLAR,REAR AXLE,RH,L
€ 7.50
92027A
920271772
ref: 92027A
COLLAR,REAR BRAKE DRU
920271772
€ 9.50
92027B
920271784
ref: 92027B
COLLAR,RR HUB
920271784
€ 16.00
92033
920331042
ref: 92033
CIRCLIP,47M/M
920331042
€ 4.00
92033A
920331043
ref: 92033A
RING,SNAP,56.2M/M
920331043
€ 6.00
92049
92052006
ref: 92049
OIL SEAL WTC35527
92052006
€ 6.50
92057
920571228
ref: 92057
CHAIN,DRIVE,104L
€ 151.50
92075
920751687
ref: 92075
DAMPER,SHOCK,RR HUB
920751687
€ 54.50
92081
42020004
ref: 92081
SPRING-BRAKE SHOE
42020004
€ 5.50
92093
41051003
ref: 92093
DUST SHIELD-BRAKE CAM
41051003
€ 2.50
