METER(S)
EX400A3 GPZ400S 1989 SWEDEN

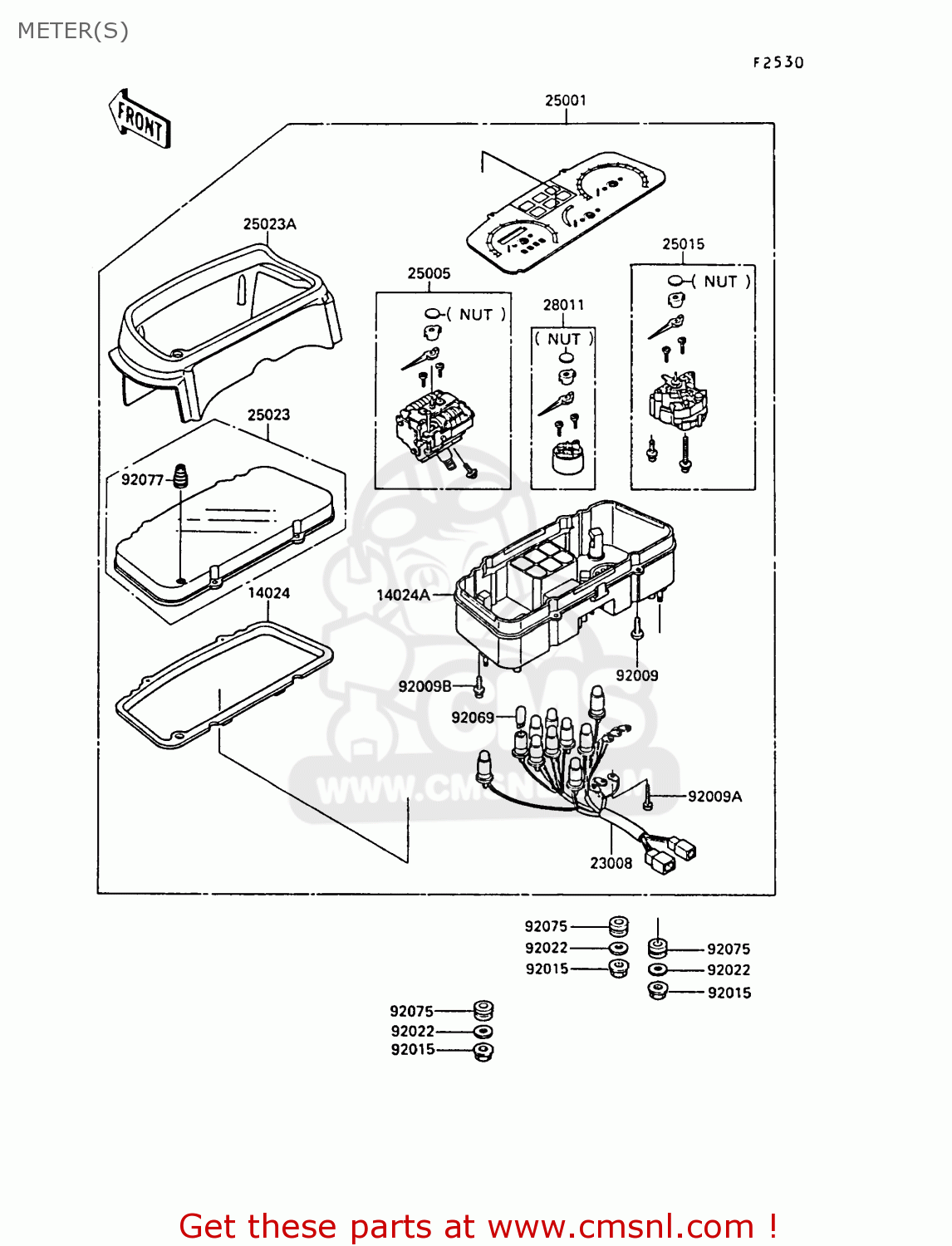

Meter(s) diagram EX400A3 GPZ400S 1989 SWEDEN
METER(S) EX400A3 GPZ400S 1989 SWEDEN
×
prices are in EUR
ref
part #
description
quantity
14024
140241278
ref: 14024
COVER,METER
€ 10.00
14024A
140241393
ref: 14024A
COVER,METER HOUSING
€ 74.50
23008
230081315
ref: 23008
SOCKET-ASSY,METER
€ 56.00
25001
250011681
ref: 25001
METER-ASSY,KPH
€ 1,004.00
25005
250051348
ref: 25005
SPEEDOMETER,KPH
€ 126.00
25015
250151267
ref: 25015
TACHOMETER,X1000R/MIN
€ 171.50
25023
250231141
ref: 25023
COVER-METER CASE,UPP
€ 57.00
25023A
250231151
ref: 25023A
COVER-METER CASE
€ 24.00
28011
280111097
ref: 28011
METER,TEMP
€ 54.50
92009
920091163
ref: 92009
SCREW,TAPPING,4X16
€ 2.50
92009A
920091293
ref: 92009A
SCREW,3X22
€ 2.50
92009B
920091382
ref: 92009B
SCREW
€ 2.00
92015
920151259
ref: 92015
NUT,FLANGED,5MM
€ 2.50
92022
92022263
ref: 92022
WASHER,PLAIN,6MM
€ 1.50
92069
920691007
ref: 92069
BULB,12V3.4W
€ 2.50
92075
920751385
ref: 92075
DAMPER,METER BRACKET
€ 3.00
92077
920771061
ref: 92077
BOOT,TRIP RESET KNOB
€ 6.00
