FRONT FORK
EX400A3 GPZ400S 1989 SWEDEN

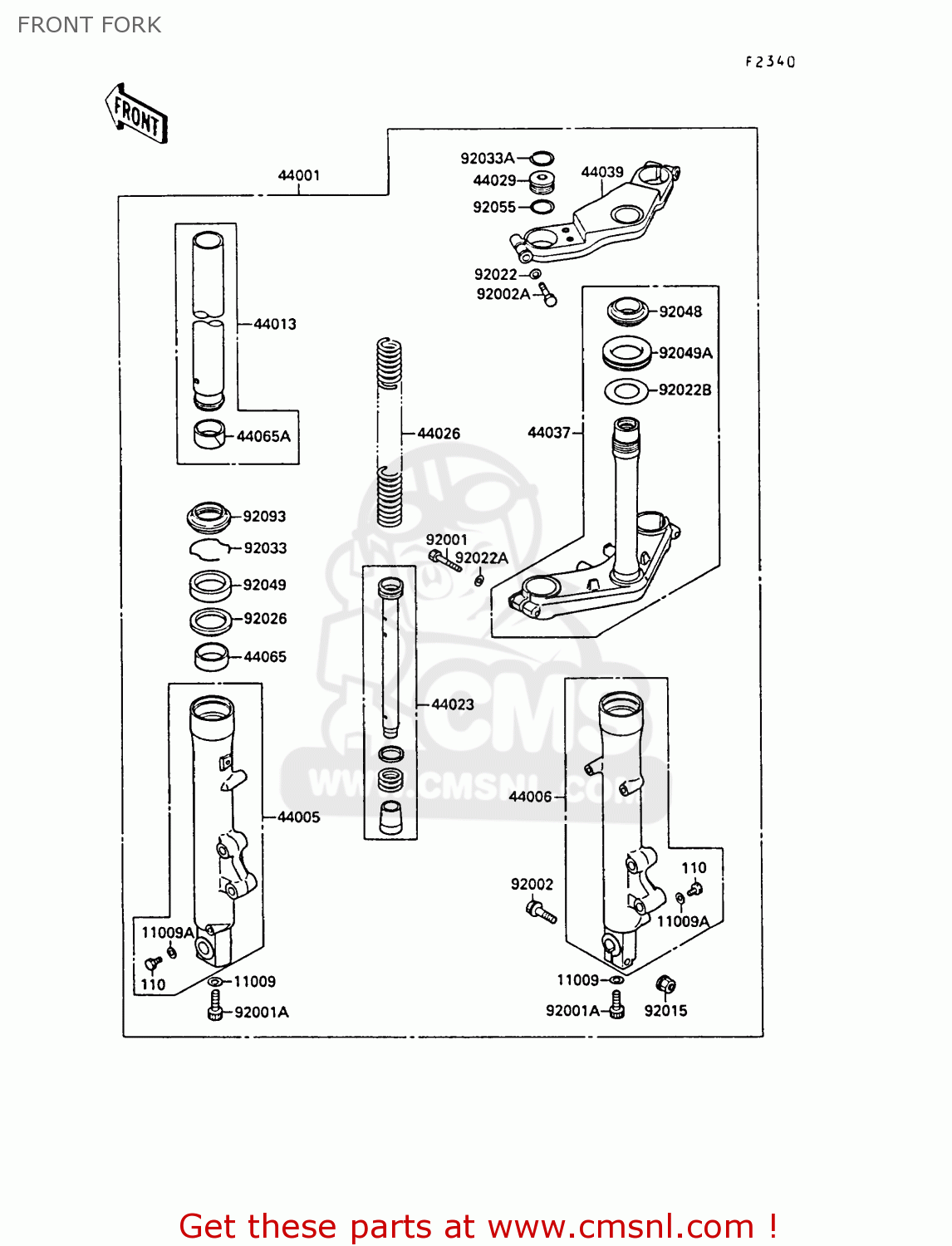

Front fork diagram EX400A3 GPZ400S 1989 SWEDEN
FRONT FORK EX400A3 GPZ400S 1989 SWEDEN
×
prices are in EUR
ref
part #
description
quantity
110
110B0608
ref: 110
BOLT-HEX HEAD,6X8
€ 0.50
11009
44045051
ref: 11009
GASKET,FORK CYLINDER (NAS)
€ 4.00
11009A
44045052
ref: 11009A
GASKET,DRAIN PLUG (NAS)
€ 6.00
44001
440011652
ref: 44001
FORK-FRONT
€ 1,440.00
44005
440051261
ref: 44005
PIPE-LEFT FORK OUTER
€ 202.50
44006
440061258
ref: 44006
PIPE-RIGHT FORK OUTER
€ 184.50
44013
440131262
ref: 44013
PIPE-FORK INNER
€ 120.50
44023
440231058
ref: 44023
CYLINDER-COMP-FORK
€ 82.50
44026
440261366
ref: 44026
SPRING-FRONT FORK
€ 37.50
44029
440291124
ref: 44029
SEAT-FORK SPRING
€ 29.50
44037
440371212
ref: 44037
HOLDER-FORK UNDER
€ 186.00
44039
440391161
ref: 44039
HOLDER-FORK UPPER
€ 104.50
44065
440651068
ref: 44065
BUSHING-FRONT FORK
€ 16.00
44065A
440651069
ref: 44065A
BUSHING-FRONT FORK,IN
€ 16.50
92001
920011454
ref: 92001
BOLT
€ 6.50
92001A
920011464
ref: 92001A
BOLT
€ 4.00
92002
920021159
ref: 92002
BOLT,FLANGED,8X50
€ 4.00
92002A
920021812
ref: 92002A
BOLT
€ 4.50
92015
920151408
ref: 92015
NUT,FLANGED,8MM
€ 1.00
92022
920221703
ref: 92022
WASHER,SPRING,8MM
€ 2.00
92022A
920221704
ref: 92022A
WASHER,SPRING,10MM
€ 2.00
92022B
92022231
ref: 92022B
WASHER,PLAIN
€ 3.00
92026
920261038
ref: 92026
SPACER,FORK
€ 6.50
92033
920331219
ref: 92033
RING-SNAP,FORK
€ 4.00
92033A
920331220
ref: 92033A
RING-SNAP,FORK TOP
€ 6.00
92048
92047012
ref: 92048
CONE-STRNG STM BRNG
€ 14.50
92049
920491226
ref: 92049
SEAL-OIL,FORK
€ 14.50
92049A
92056003
ref: 92049A
OIL SEAL,STEERING STM
€ 6.00
92055
920551359
ref: 92055
RING-O,FORK SPRING SE
€ 6.00
92093
920931196
ref: 92093
SEAL,FORK
€ 15.50
