GENERATOR

EX305B8 GPZ305 1991 EUROPE UK / BELT DRIVE

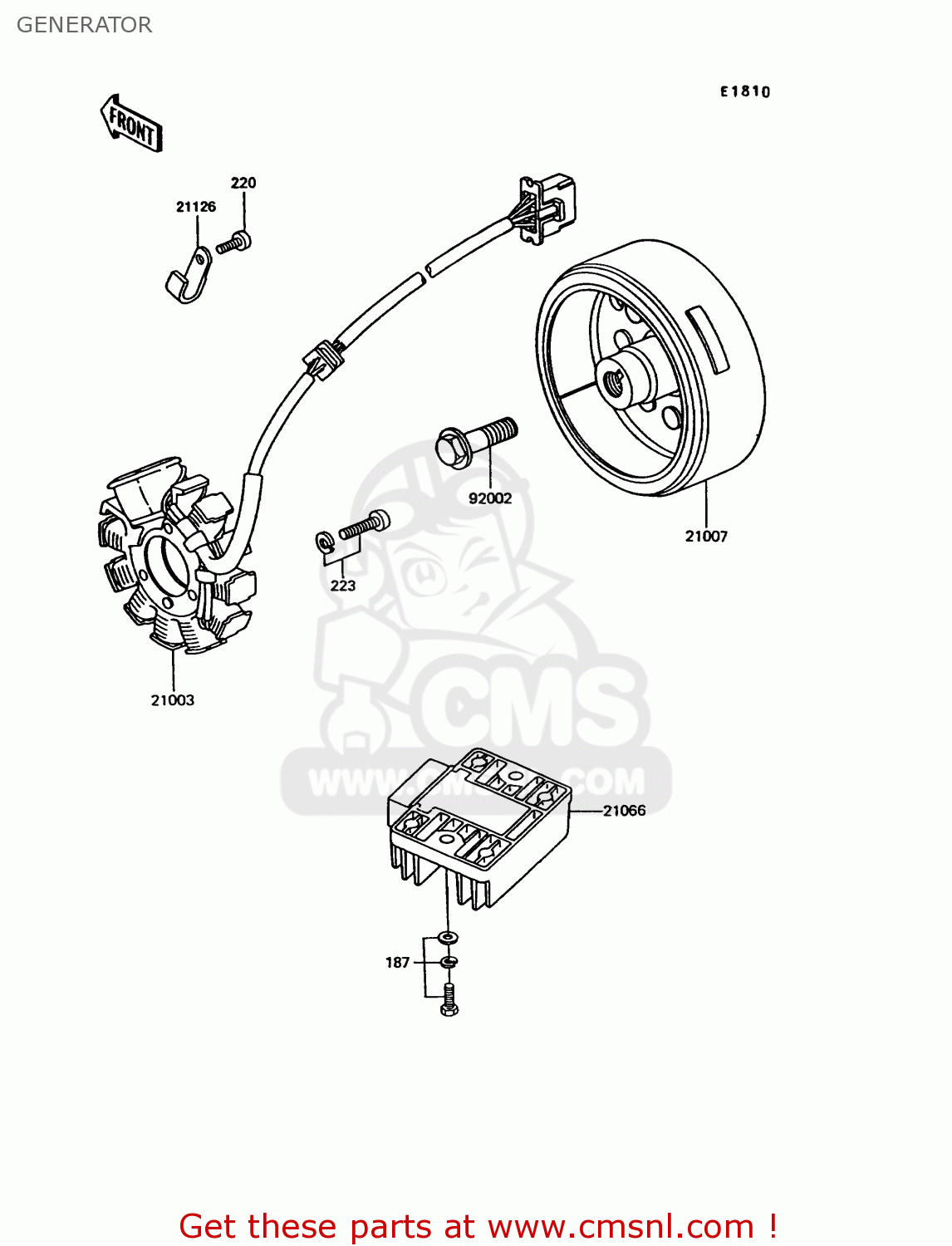

Generator diagram EX305B8 GPZ305 1991 EUROPE UK / BELT DRIVE

GENERATOR EX305B8 GPZ305 1991 EUROPE UK / BELT DRIVE

GENERATOR EX305B8 GPZ305 1991 EUROPE UK / BELT DRIVE

prices are in EUR

ref

part #

description

quantity

187

187B0618
ref: 187

BOLT-UPSET-WSP

€ 0.50

220

220B0612
ref: 220

SCREW-PAN HEAD,6X12

€ 1.00

223

223B0530
ref: 223

SCREW-PAN-WS-CROS

€ 2.50

21003

210031073
ref: 21003

STATOR,GENERATOR

€ 303.00

21007

210071058
ref: 21007

ROTOR,GENERATOR

€ 441.00

21066

210661039
ref: 21066

REGULATOR-VOLTAGE

€ 167.50

21126

21126008
ref: 21126

CLAMP,WIRING HARNESS

€ 3.00

92002

920021296
ref: 92002

BOLT,10X40

€ 7.00
