CRANKCASE BOLT PATTERN

EX305B8 GPZ305 1991 EUROPE UK / BELT DRIVE

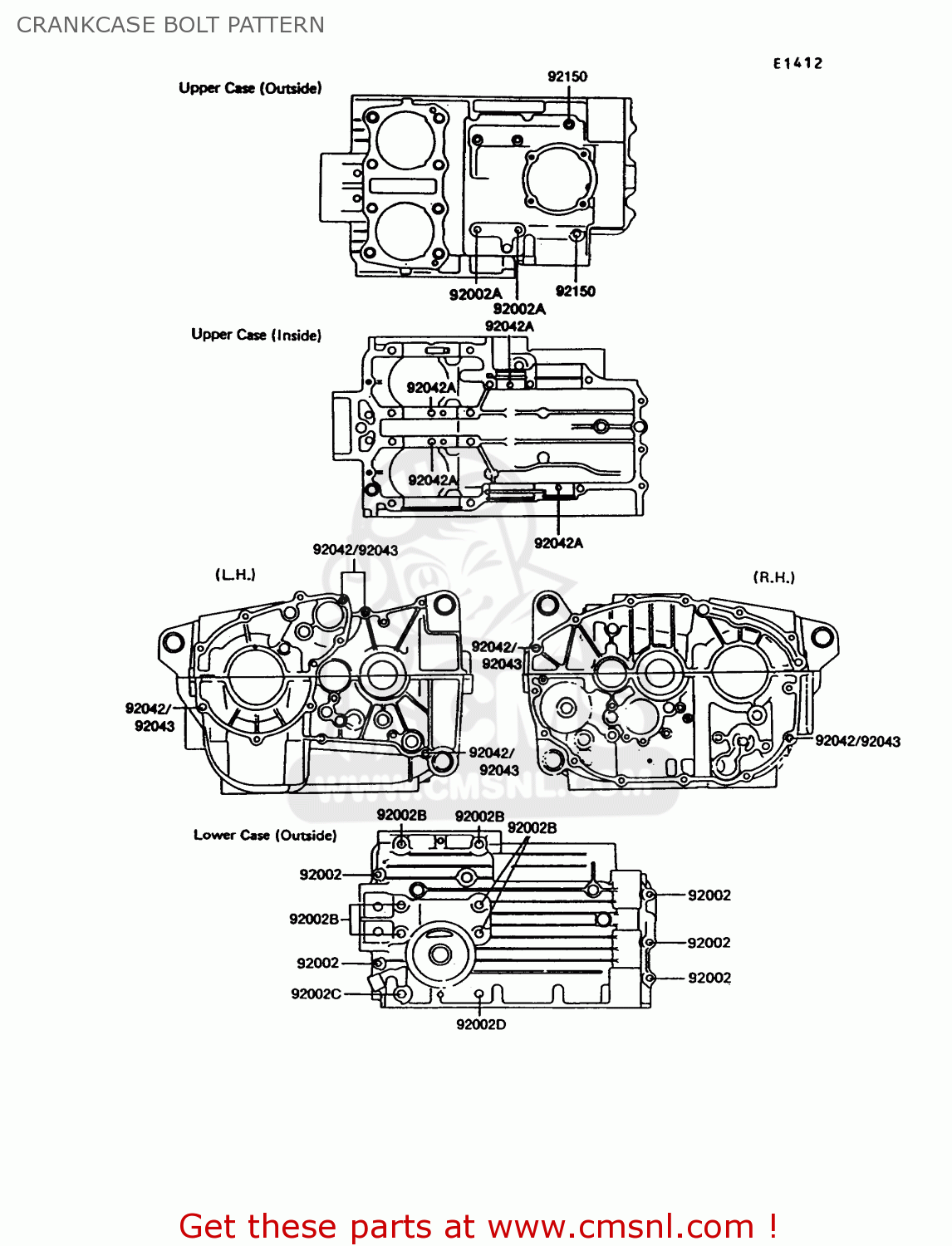

Crankcase bolt pattern diagram EX305B8 GPZ305 1991 EUROPE UK / BELT DRIVE

CRANKCASE BOLT PATTERN EX305B8 GPZ305 1991 EUROPE UK / BELT DRIVE

CRANKCASE BOLT PATTERN EX305B8 GPZ305 1991 EUROPE UK / BELT DRIVE

prices are in EUR

ref

part #

description

quantity

92002

920021051
ref: 92002

BOLT,6X35

€ 3.00

92002A

920021054
ref: 92002A

BOLT,6X55

€ 3.00

92002B

920021057
ref: 92002B

BOLT,8X90

€ 6.50

92002C

920021058
ref: 92002C

BOLT,8X115

€ 6.00

92002D

920021059
ref: 92002D

BOLT,8X140

€ 6.50

92042

92042007
ref: 92042

PIN-DOWEL

€ 4.00

92042A

92042016
ref: 92042A

PIN,DOWEL,6X16

€ 3.50

92150

921501312
ref: 92150

BOLT

€ 3.50
