FRAME

EX305B8 GPZ305 1991 EUROPE UK / BELT DRIVE

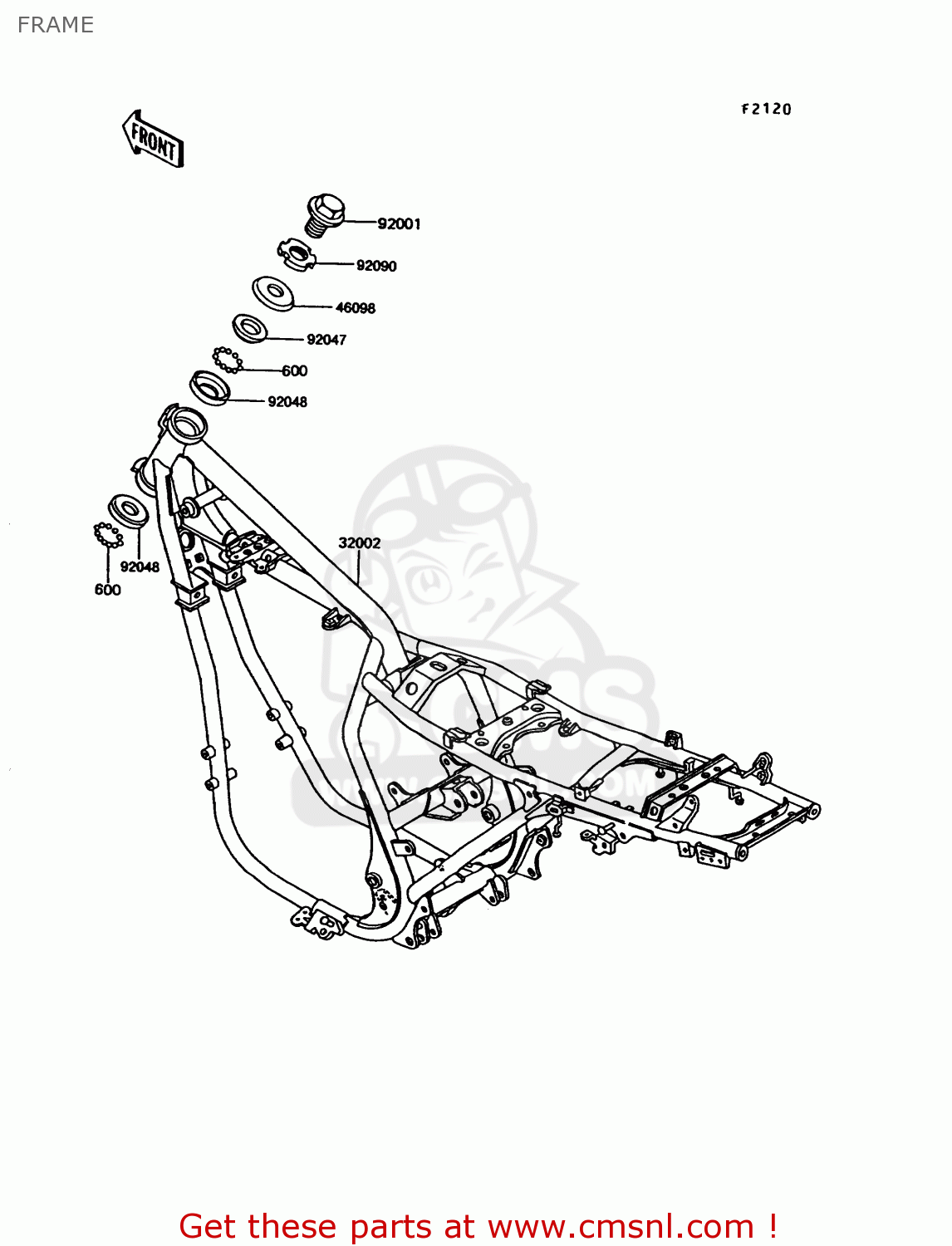

Frame diagram EX305B8 GPZ305 1991 EUROPE UK / BELT DRIVE

FRAME EX305B8 GPZ305 1991 EUROPE UK / BELT DRIVE

FRAME EX305B8 GPZ305 1991 EUROPE UK / BELT DRIVE

prices are in EUR

ref

part #

description

quantity

600

600A0800
ref: 600

BALL-STEEL,1/4

€ 0.50

32002

320021583
ref: 32002

FRAME-COMP

€ 699.50

46098

46098016
ref: 46098

CAP,STEERING STEM

€ 4.00

92001

920011488
ref: 92001

BOLT,FLANGED,16X22

€ 13.50

92047

92047006
ref: 92047

CONE-STRNG STEM

€ 11.00

92048

92048006
ref: 92048

RACE-STRNG BEARIN-STE

€ 11.50

92090

92090007
ref: 92090

NUT-STEERING STEM LCK

€ 8.00
