TAILLIGHT(S)

EX305B4 GPZ305 1986 UNITED KINGDOM / BELT DRIVE

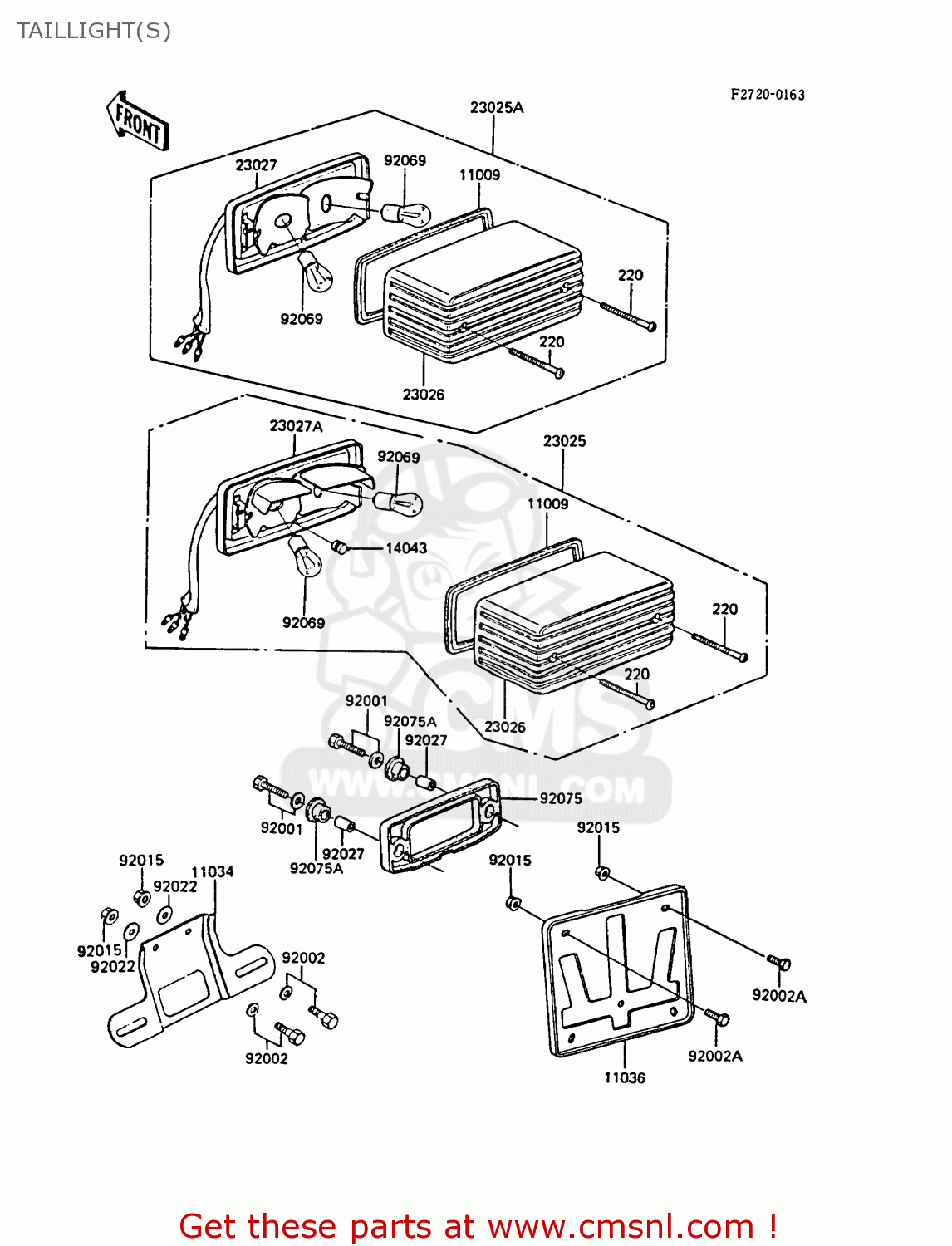

Taillight(s) diagram EX305B4 GPZ305 1986 UNITED KINGDOM / BELT DRIVE

prices are in EUR

ref

part #

description

quantity

220

220C0465
ref: 220

SCREW-PAN-CROS

€ 2.50

11009

110091221
ref: 11009

GASKET,TAIL LAMP (NAS)

€ 8.50

11034

110341923
ref: 11034

BRACKET,LICENSE PLATE

€ 13.50

14043

140431004
ref: 14043
FG

FILTER

€ 2.50

23025

230251040
ref: 23025
FG

LAMP-TAIL

€ 175.00

23025A

230251134
ref: 23025A
UK

LAMP-TAIL

€ 125.50

23026

230261075
ref: 23026

LENS,TAIL LAMP

€ 126.00

23027

230271026
ref: 23027
UK

BODY-COMP-TAIL LAMP,B

€ 121.50

23027A

230271027
ref: 23027A
FG

BODY-COMP-TAIL LAMP

€ 175.00

92001

920011776
ref: 92001

BOLT,6X30

€ 3.00

92002

920021124
ref: 92002

BOLT,6X16

€ 2.50

92015

920151193
ref: 92015

NUT,FLANGED,6MM

€ 0.50

92022

92022125
ref: 92022

WASHER,6.5X20X1.6

€ 1.00

92027

920271400
ref: 92027

COLLAR,6.8X10X21

€ 3.50

92069

92069063
ref: 92069

BULB 12V 21/5W

€ 4.50

92075

920751282
ref: 92075

DAMPER,TAIL LAMP

€ 13.00

92075A

920751367
ref: 92075A

DAMPER,TAIL LAMP

€ 3.00
