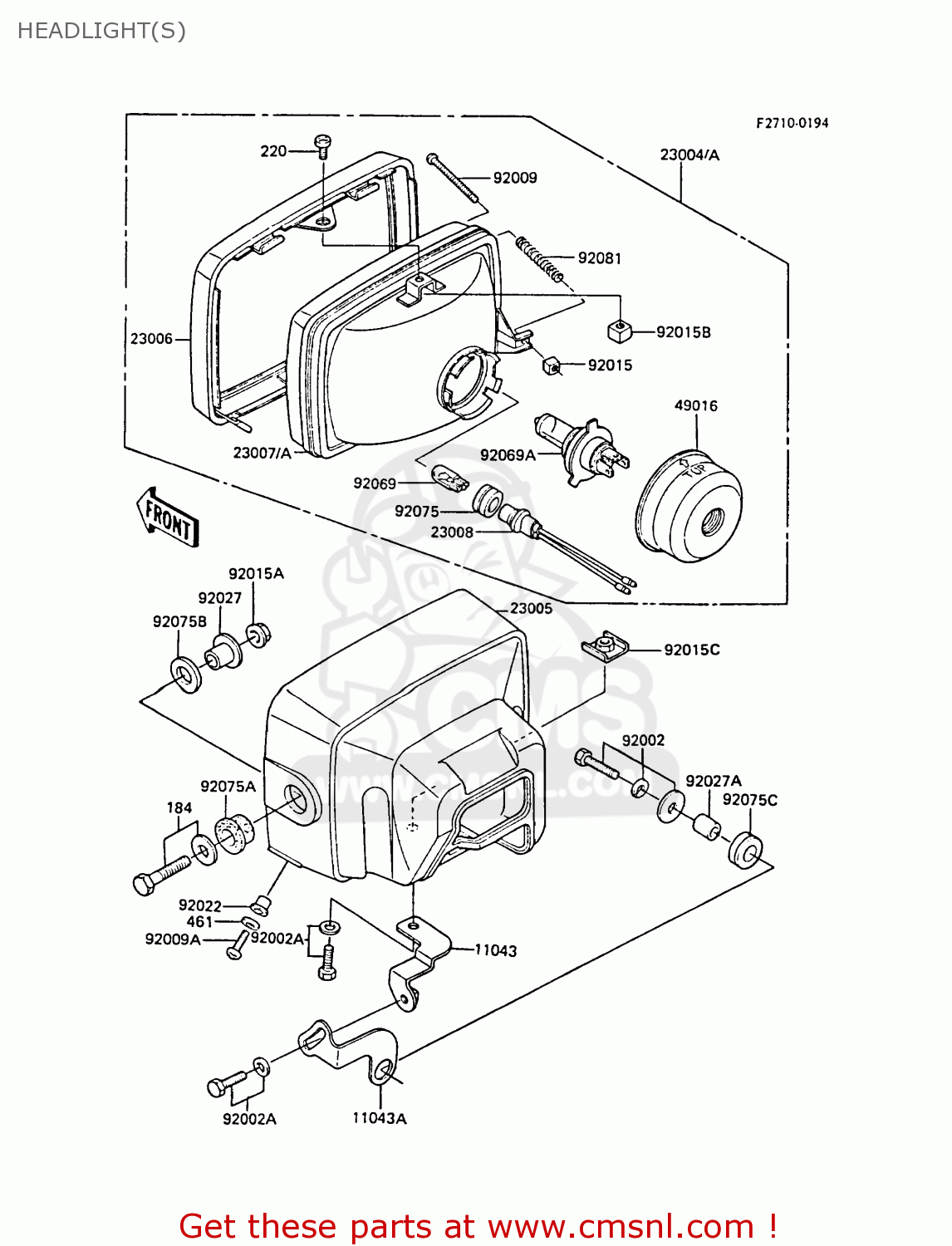

HEADLIGHT(S)

ref

part #

description

quantity

184

184C0835
ref: 184

BOLT-UPSET-WP-SMALL

€ 2.50

220

220B0510
ref: 220

SCREW-PAN-CROS,5X10

€ 0.50

461

461F0500
ref: 461

WASHER-SPRING,5MM

€ 0.50

11043

110431029
ref: 11043

BRACKET-B

€ 6.00

11043A

110431030
ref: 11043A

BRACKET-B

€ 7.00

23004

230041111
ref: 23004
FG

LAMP-HEAD

€ 567.50

23004A

230041112
ref: 23004A
UK

LAMP-HEAD

€ 558.50

23005

2300510306Z
ref: 23005

BODY-COMP-HEAD LAMP

€ 55.00

23006

230061022
ref: 23006

RIM-LAMP,HEAD

€ 60.00

23007

230071051
ref: 23007
FG

LENS-COMP,001-2722 MA

€ 153.00

23007A

230071052
ref: 23007A
UK

LENS-COMP,001-2723 MA

€ 199.50

23008

23008038
ref: 23008

SOCKET-ASSY,PARKING L

€ 7.50

49016

490161046
ref: 49016

COVER-SEAL,HEAD LAMP

€ 7.50

92002

920021137
ref: 92002

BOLT,6X25

€ 2.50

92002A

920021260
ref: 92002A

BOLT,6X14

€ 0.50

92009

920091033
ref: 92009

SCREW,FOCUS ADJUSTING

€ 3.50

92009A

92011024
ref: 92009A

SCREW-PAN HEAD,5MM

€ 2.00

92015

23020018
ref: 92015

NUT,4MM,FOCUS ADJUST

€ 3.00

92015A

920151014
ref: 92015A

NUT,8MM

€ 0.50

92015B

920151157
ref: 92015B

NUT,5MM

€ 3.50

92015C

920151231
ref: 92015C

NUT,6MM,HEAD LAMP

€ 6.50

92022

23021010
ref: 92022

WASHER

€ 2.50

92027

920271131
ref: 92027

COLLAR,HEAD LAMP FITT

€ 6.00

92027A

92027162
ref: 92027A

COLLAR-REAR FENDER

€ 4.50

92069

92069071
ref: 92069

BULB,12V 4W

€ 4.50

92069A

920691002
ref: 92069A

BULB,12V-60155W

€ 15.00

92075

23066008
ref: 92075

DAMPER,PARKING LAMP

€ 3.00

92075A

920751109
ref: 92075A

DAMPER,HEAD LAMP FITT

€ 4.00

92075B

920751110
ref: 92075B

DAMPER,HEAD LAMP FITT

€ 3.00

92075C

92075209
ref: 92075C

DAMPER RUBBER

€ 3.00

92081

920811103
ref: 92081

SPRING,HEAD LAMP LENS

€ 3.00
