CRANKCASE BOLT PATTERN

EX305B4 GPZ305 1986 UNITED KINGDOM / BELT DRIVE

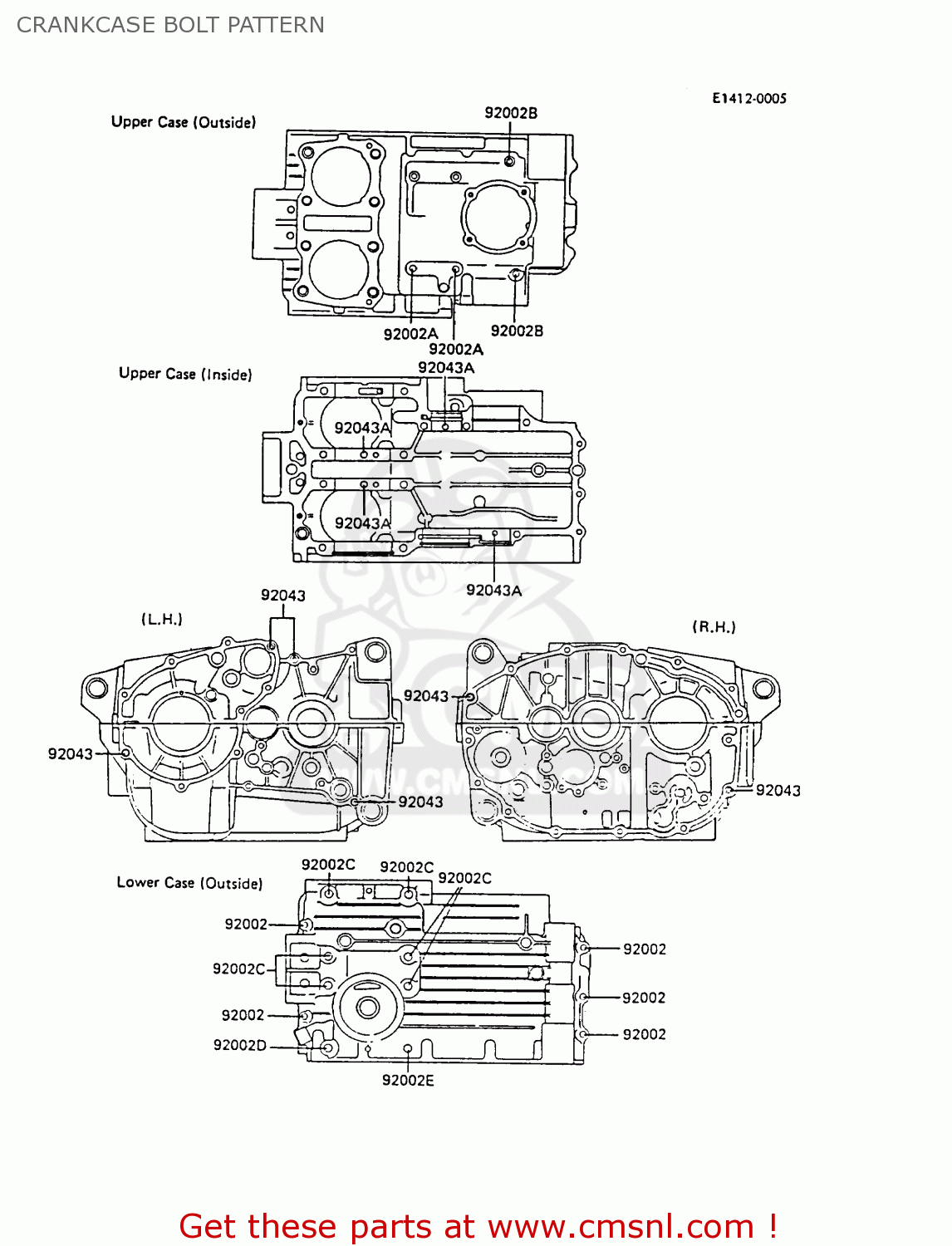

Crankcase bolt pattern diagram EX305B4 GPZ305 1986 UNITED KINGDOM / BELT DRIVE

CRANKCASE BOLT PATTERN EX305B4 GPZ305 1986 UNITED KINGDOM / BELT DRIVE

CRANKCASE BOLT PATTERN EX305B4 GPZ305 1986 UNITED KINGDOM / BELT DRIVE

prices are in EUR

ref

part #

description

quantity

92002

920021051
ref: 92002

BOLT,6X35

€ 3.00

92002A

920021054
ref: 92002A

BOLT,6X55

€ 3.00

92002B

920021055
ref: 92002B

BOLT,6X90

€ 3.00

92002C

920021057
ref: 92002C

BOLT,8X90

€ 6.50

92002D

920021058
ref: 92002D

BOLT,8X115

€ 6.00

92002E

920021059
ref: 92002E

BOLT,8X140

€ 6.50

92043

92042007
ref: 92043

PIN-DOWEL

€ 4.00

92043A

92042016
ref: 92043A

PIN,DOWEL,6X16

€ 3.50
