Genuine EX Kawasaki Parts delivered quickly!


REAR HUB

EX305B10 GPZ305 1994 EUROPE UK

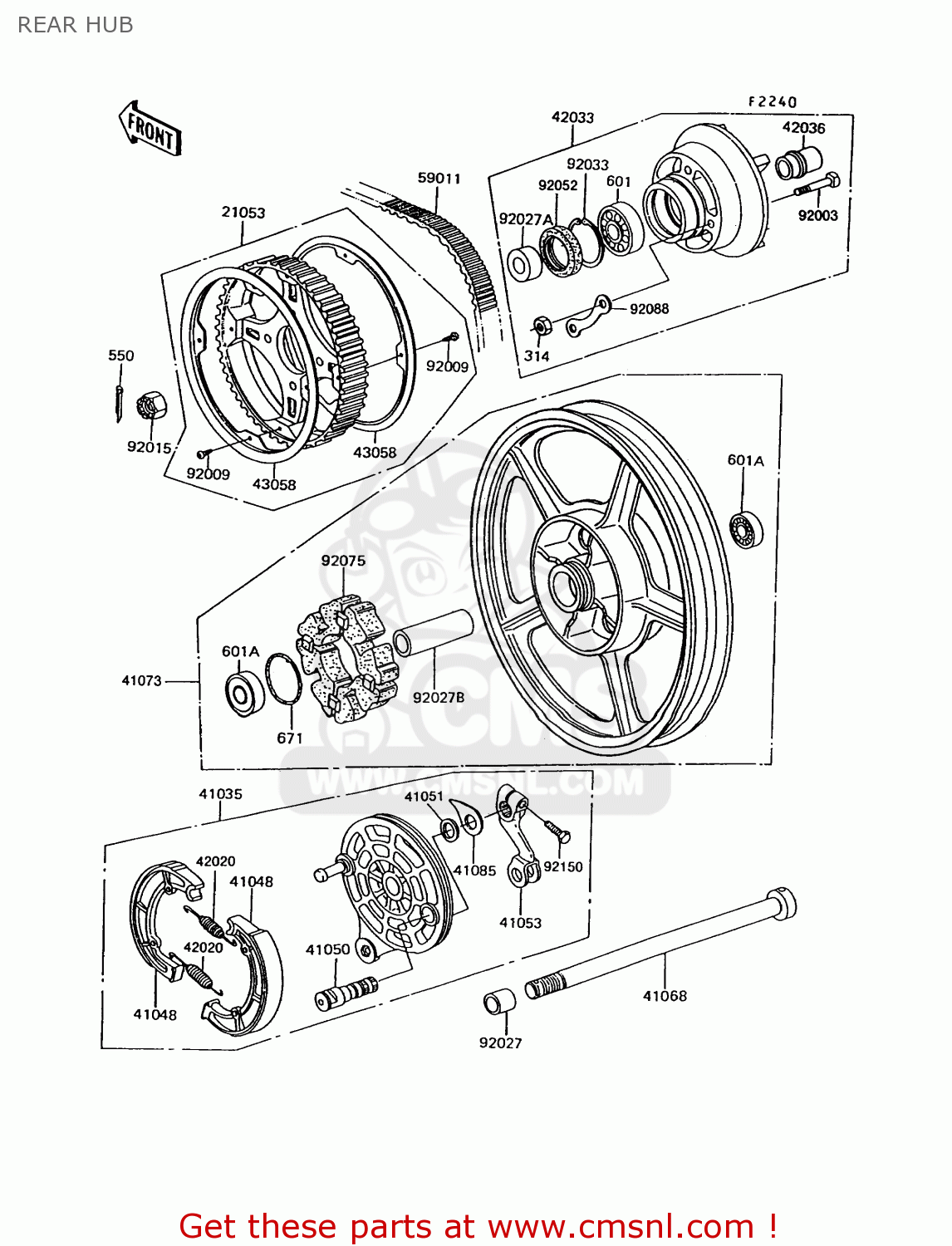

Rear hub diagram EX305B10 GPZ305 1994 EUROPE UK

REAR HUB EX305B10 GPZ305 1994 EUROPE UK
REAR HUB EX305B10 GPZ305 1994 EUROPE UK
REAR HUB EX305B10 GPZ305 1994 EUROPE UK
prices are in EUR
ref
part #
description
quantity
314
314B1000
ref: 314
NUT,10MM
314B1000
€ 0.50
550
550D4035
ref: 550
PIN-COTTER,4.0X35
550D4035
€ 1.00
601
601B6205G
ref: 601
BEARING BALL
601B6205G
€ 14.00
601A
601B6303ZZ
ref: 601A
BEARING-BALL,#6303ZZC
601B6303ZZ
€ 32.50
671
671B2560
ref: 671
O RING,60MM
671B2560
€ 1.50
21053
210531010
ref: 21053
SPROCKET-ASSY,RR,50T
€ 245.50
41035
410351287
ref: 41035
PANEL-ASSY-BRAKE,RR
€ 245.50
41048
410481069
ref: 41048
SHOE-BRAKE (NAS)
410481069
€ 26.00
41050
410501001
ref: 41050
CAM-BRAKE
410501001
€ 24.00
41051
41051003
ref: 41051
DUST SHIELD-BRAKE CAM
41051003
€ 2.50
41053
410531031
ref: 41053
LEVER-BRAKE CAM
410531031
€ 49.00
41068
410681122
ref: 41068
AXLE,RR
€ 45.00
41073
410731566DH
ref: 41073
WHEEL-ASSY,RR,C.GRAY
€ 674.00
41085
41085004
ref: 41085
INDICATOR,BRAKE SHOE
41085004
€ 10.00
42020
42020004
ref: 42020
SPRING-BRAKE SHOE
42020004
€ 5.50
42033
420331101
ref: 42033
COUPLING-ASSY,REAR HU
€ 161.00
42036
420361002
ref: 42036
SLEEVE,COUPLING
420361002
€ 27.50
43058
430581024
ref: 43058
RING,REAR HUB SPROCKE
€ 36.50
59011
590111006
ref: 59011
BELT,125T,125U-14M35
590111006
€ 293.50
92003
92003156
ref: 92003
BOLT,RR SPROCKET FIT
92003156
€ 6.50
92009
920091167
ref: 92009
SCREW,5X10
€ 4.50
92015
920151951
ref: 92015
NUT,CASTLE,16MM
920151951
€ 8.00
92027
920271257
ref: 92027
COLLAR,17.2X30X24.5
920271257
€ 21.50
92027A
920271321
ref: 92027A
COLLAR,REAR AXLE,LH,L
920271321
€ 17.00
92027B
920271506
ref: 92027B
COLLAR,REAR WHEEL,L=6
€ 9.00
92033
920331043
ref: 92033
RING,SNAP,56.2M/M
920331043
€ 6.00
92052
92052006
ref: 92052
OIL SEAL WTC35527
92052006
€ 6.50
92075
920751008
ref: 92075
DAMPER,REAR HUB SHOCK
920751008
€ 53.50
92088
92088005
ref: 92088
WASHER,SPROCKET LOCK
92088005
€ 4.00
92150
921501797
ref: 92150
BOLT
921501797
€ 3.50
