Genuine EX Kawasaki Parts delivered quickly!


GEAR CHANGE MECHANISM

EX305B10 GPZ305 1994 EUROPE UK

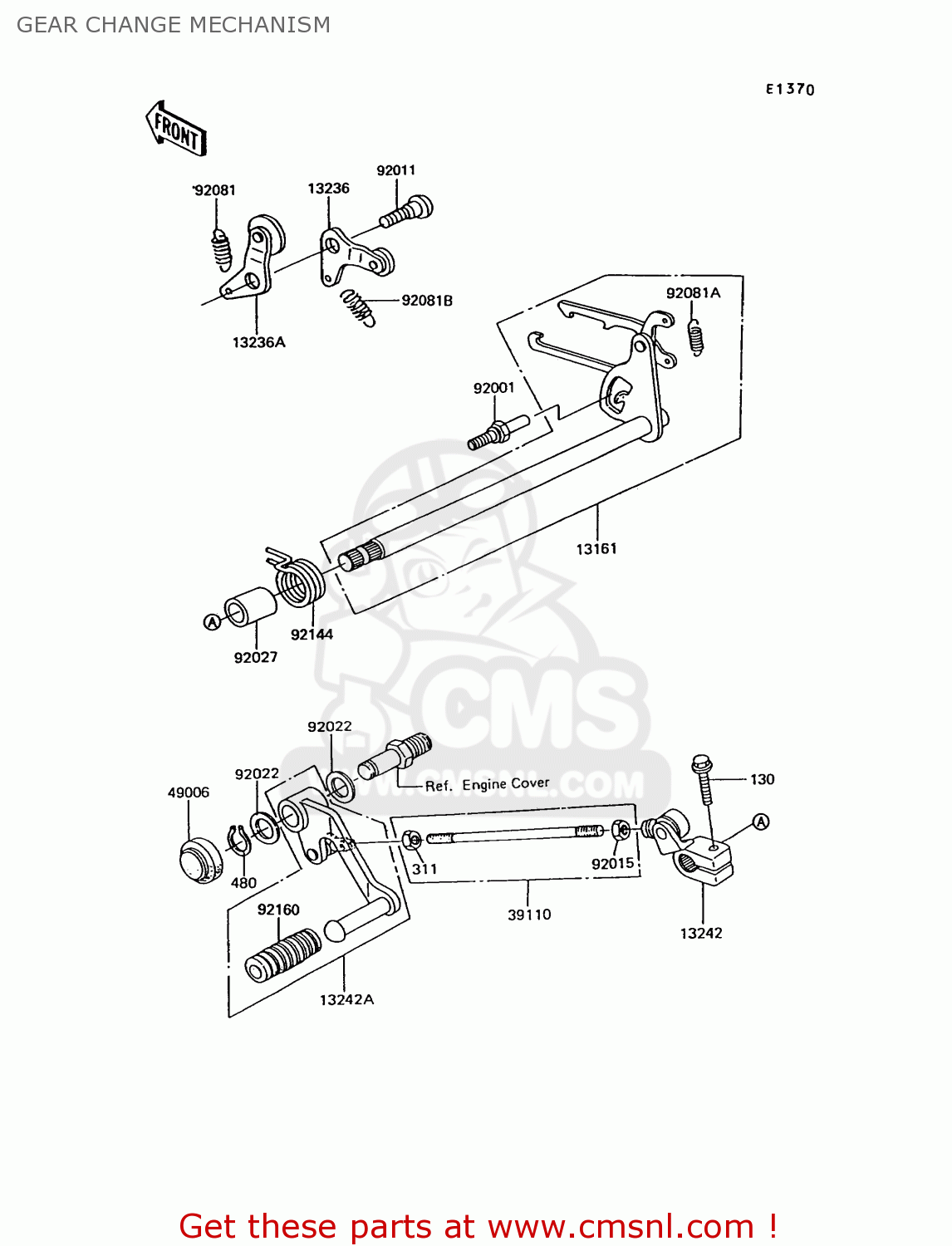

Gear change mechanism diagram EX305B10 GPZ305 1994 EUROPE UK

GEAR CHANGE MECHANISM EX305B10 GPZ305 1994 EUROPE UK
GEAR CHANGE MECHANISM EX305B10 GPZ305 1994 EUROPE UK
GEAR CHANGE MECHANISM EX305B10 GPZ305 1994 EUROPE UK
prices are in EUR
ref
part #
description
quantity
130
130S0620
ref: 130
BOLT-FLANGED,6X20,BLA
130S0620
€ 2.50
311
311J0600
ref: 311
NUT-HEX
311J0600
€ 1.00
480
480J1200
ref: 480
CIRCLIP-TYPE-C,12MM
480J1200
€ 0.50
13161
131611007
ref: 13161
LEVER-COMP-CHANGE SHA
131611007
€ 66.00
13236
132361037
ref: 13236
LEVER-COMP,GEAR POSIT
€ 9.00
13236A
132361038
ref: 13236A
LEVER-COMP,NEUTRAL PO
€ 9.00
13242
132421057
ref: 13242
LEVER-ASSY-CHANGE,ROD
132421057
€ 20.50
13242A
132421096
ref: 13242A
LEVER-ASSY-CHANGE,PED
132421096
€ 51.00
39110
391101014
ref: 39110
ROD-ASSY-TIE,CHANGE P
€ 6.00
49006
490061061
ref: 49006
BOOT,CHANGE LEVER
490061061
€ 6.00
92001
920011455
ref: 92001
BOLT
920011455
€ 3.00
92011
92011023
ref: 92011
SCREW-PAN HEAD
92011023
€ 2.50
92015
920151178
ref: 92015
NUT
920151178
€ 2.50
92022
920221537
ref: 92022
WASHER,12.5X21X1.2,BL
920221537
€ 3.50
92027
920271440
ref: 92027
COLLAR,13X18.3X21.5
920271440
€ 3.50
92081
92081051
ref: 92081
SPRING-CHNG DRUM LEV
92081051
€ 2.50
92081A
92081076
ref: 92081A
SPRING-CHANG LEVER
92081076
€ 3.50
92081B
92081156
ref: 92081B
SPRING,CHANGE LEVER
92081156
€ 4.00
92144
921441074
ref: 92144
SPRING,CHANGE PEDAL R
921441074
€ 6.50
92160
921601036
ref: 92160
DAMPER,CHANGE PEDAL
921601036
€ 3.50
