CARBURETOR
EX305B10 GPZ305 1994 EUROPE UK

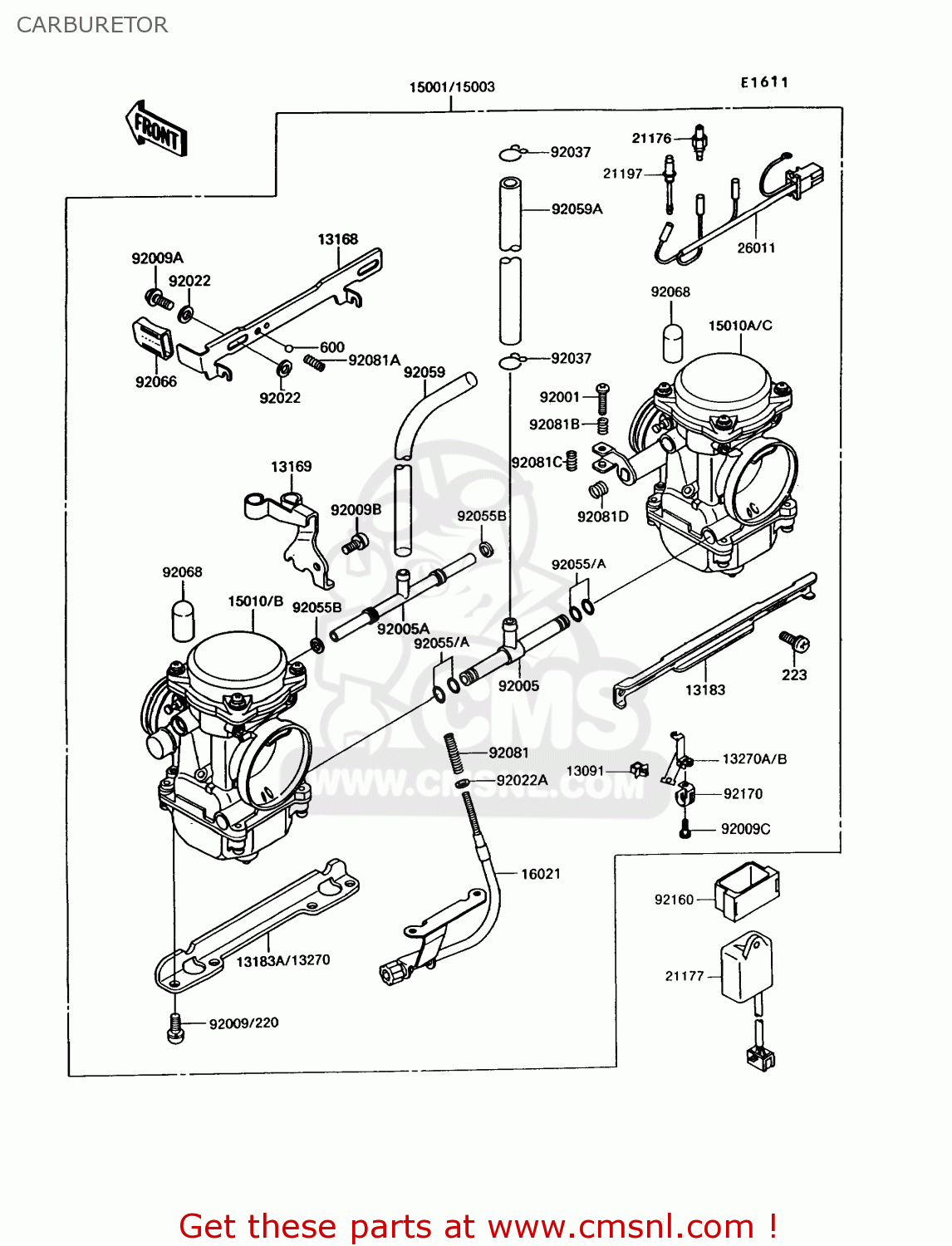

Carburetor diagram EX305B10 GPZ305 1994 EUROPE UK
CARBURETOR EX305B10 GPZ305 1994 EUROPE UK
×
prices are in EUR
ref
part #
description
quantity
13091
130911866
ref: 13091
UK
HOLDER,HEATER
€ 6.50
13168
131681467
ref: 13168
LEVER,STARTER PLUNGER
€ 26.50
13169
131691962
ref: 13169
PLATE,THROTTLE CABLE
€ 48.00
13183
131831712
ref: 13183
PLATE,CARBURETOR STAY
€ 20.50
13183A
131831713
ref: 13183A
EU
PLATE,CARBURETOR STAY
€ 20.50
13270
132701072
ref: 13270
UK
PLATE,CARBURETOR STAY
€ 18.50
13270A
132701143
ref: 13270A
UK
PLATE,HEATER STAY
€ 9.00
13270B
132701144
ref: 13270B
UK
PLATE,HEATER STAY,RH
€ 7.00
15001
150011685
ref: 15001
EU
CARBURETOR-ASSY
€ 569.50
15003
150031086
ref: 15003
UK
CARBURETOR-ASSY
€ 510.00
15010
150101208
ref: 15010
EU
CARBURETOR,LH
€ 465.50
15010A
150101209
ref: 15010A
EU
CARBURETOR,RH
€ 465.50
15010B
150101712
ref: 15010B
UK
CARBURETOR,LH
€ 416.50
15010C
150101713
ref: 15010C
UK
CARBURETOR,RH
€ 416.50
16021
160211115
ref: 16021
SCREW-THROTTLE STOP
€ 84.00
21176
211761068
ref: 21176
UK
SENSOR
€ 94.00
21177
211771052
ref: 21177
UK
CONTROLLER
€ 114.50
21197
211971003
ref: 21197
UK
HEATER
€ 75.50
26011
260111599
ref: 26011
UK
WIRE-LEAD
€ 20.50
92001
920011998
ref: 92001
BOLT,THROTTLE ADJUST
€ 11.50
92005
920051108
ref: 92005
FITTING,FUEL,T-TYPE
€ 16.50
92005A
920051110
ref: 92005A
FITTING,FUEL,T-TYPE
€ 16.00
92009
920091129
ref: 92009
EU
SCREW,6X16
€ 3.00
92009A
920091262
ref: 92009A
SCREW
€ 4.00
92009B
920091365
ref: 92009B
SCREW
€ 4.50
92009C
920091706
ref: 92009C
UK
SCREW
€ 2.00
220
220B0616
ref: 220
UK
SCREW-PAN HEAD,6X16
€ 2.50
223
223C0510
ref: 223
SCREW-PAN-WS-CROS
€ 2.50
600
600A0600
ref: 600
BALL-STEEL,3/16
€ 0.50
92022
920221199
ref: 92022
WASHER,6.1X11X0.8,POL
€ 3.00
92022A
920221480
ref: 92022A
WASHER,PLAIN,STOP SPR
€ 3.00
92037
920371075
ref: 92037
CLAMP,FUEL INLET TUBE
€ 2.50
92055
920551004
ref: 92055
EU
O RING
€ 2.50
92055A
920551223
ref: 92055A
UK
RING-O,FUEL FITTING
€ 3.50
92055B
920551484
ref: 92055B
EU
RING-O
€ 3.00
92059
920591376
ref: 92059
TUBE,6.5X9.5X290
€ 20.50
92059A
920591487
ref: 92059A
TUBE,7.3X12.5X240
€ 25.00
92066
920661157
ref: 92066
PLUG,STARTER LEVER
€ 10.50
92068
92068006
ref: 92068
RUBBER PLUG
€ 2.50
92081
920811617
ref: 92081
SPRING,THROTTLE STOP
€ 3.50
92081A
920811619
ref: 92081A
SPRING,SHAFT STOP
€ 4.50
92081B
920811620
ref: 92081B
SPRING,THROTTLE ADJUS
€ 3.00
92081C
920811621
ref: 92081C
SPRING,THROTTLE ADJUS
€ 3.00
92081D
920811876
ref: 92081D
SPRING
€ 6.00
92160
921601537
ref: 92160
UK
DAMPER
€ 4.50
92170
921701396
ref: 92170
UK
CLAMP,HARNESS
€ 3.50
