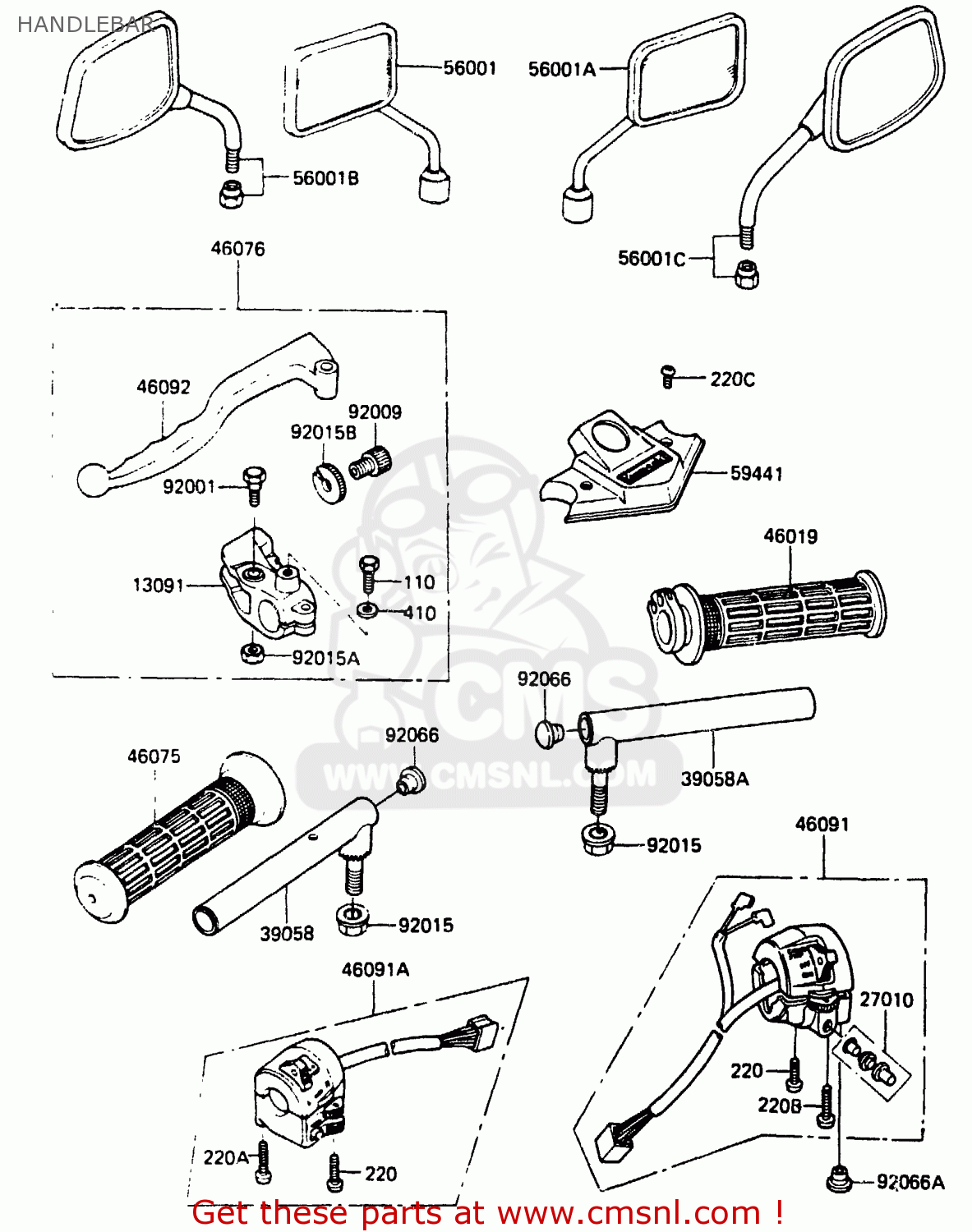

HANDLEBAR

ref

part #

description

quantity

13091

130911046
ref: 13091

HOLDER,CLUTCH LEVER,F

€ 37.00

27010

270101009
ref: 27010

SWITCH ASSY,HORN BUTN

€ 5.50

39038

390581005
ref: 39038

HANDLE-COMP,RH,F.BLAC

€ 62.50

39038A

390581006
ref: 39038A

HANDLE-COMP,LH,F.BLAC

€ 66.00

46019

460191017
ref: 46019

GRIP-ASSY,THROTTLE

€ 24.50

46075

460751022
ref: 46075

GRIP,LH

€ 8.50

46076

460761026
ref: 46076

LEVER-ASSY-GRIP,CLUTC

€ 53.50

46091

460911304
ref: 46091

HOUSING-ASSY-CONTROL,

€ 96.00

46091A

460911307
ref: 46091A

HOUSING-ASSY-CONTROL,

€ 73.00

46092

460921024
ref: 46092

LEVER-GRIP,CLUTCH,BLA

€ 11.50

56001

560011110
ref: 56001
IT, UK

MIRROR-ASSY,LH

€ 67.50

56001A

560011111
ref: 56001A
IT, UK

MIRROR-ASSY,RH

€ 71.50

56001B

560011112
ref: 56001B
EU, WG

MIRROR-ASSY,LH

€ 67.50

56001C

560011113
ref: 56001C
EU, WG

MIRROR-ASSY,RH

€ 61.50

59441

594411016
ref: 59441

COVER-HANDLE

€ 12.50

92001

920011548
ref: 92001

BOLT,CLUTCH LEVER,BLA

€ 5.50

92009

920091134
ref: 92009

SCREW,CBL ADJUST,8MM

€ 10.50

92015

920151180
ref: 92015

NUT,FLANGED,10MM,BLAC

€ 2.50

92015A

920151191
ref: 92015A

NUT,LOCK,6MM,BLACK

€ 2.00

92015B

920151197
ref: 92015B

NUT,CABLE ADJUST LOCK

€ 6.50

92066

32112009
ref: 92066

PLUG,18X3

€ 2.00

92066A

920661077
ref: 92066A

CAP,REAR VIEW MIRROR

€ 3.00

110

110C0622
ref: 110

BOLT,6X22,BLACK

€ 3.00

220

220B0530A
ref: 220

SCREW-PAN HEAD,5X30

€ 2.00

220A

220B0535A
ref: 220A

SCREW-PAN HEAD,5X35

€ 2.00

220B

220B0540A
ref: 220B

SCREW-PAN HEAD,5X40

€ 2.00

220C

220C0430A
ref: 220C

SCREW-PAN-CROS,4X30,B

€ 2.00

410

410F0600
ref: 410

WASHER-PLAIN-SMALL,6M

€ 0.50

all assemblies
