CARBURETOR
EX305A1 Z305GP 1983 EUROPE UK IT WG

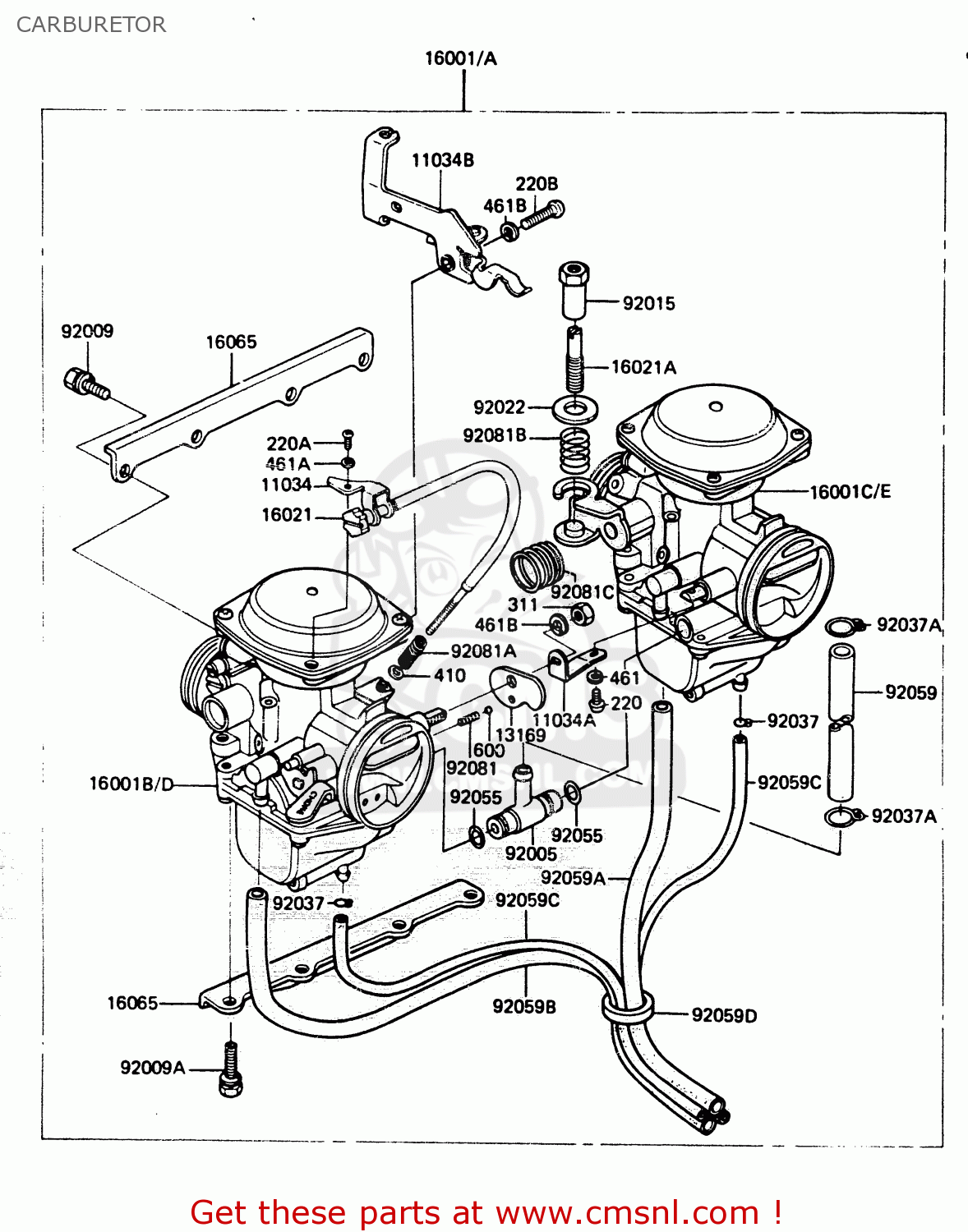

Carburetor diagram EX305A1 Z305GP 1983 EUROPE UK IT WG
CARBURETOR EX305A1 Z305GP 1983 EUROPE UK IT WG
×
prices are in EUR
ref
part #
description
quantity
11034
110341202
ref: 11034
BRACKET,STOP SCREW
€ 17.50
11034A
110341203
ref: 11034A
BRACKET,CHOKE LEVER
€ 6.00
11034B
110341826
ref: 11034B
BRACKET,THROTTLE CABL
€ 36.50
13169
131691303
ref: 13169
PLATE,CHOKE LINK
€ 4.50
16001
160011808
ref: 16001
WG
CARBURETOR
€ 1,051.00
16001A
160011810
ref: 16001A
EU, IT, UK
CARBURETOR
€ 1,051.00
16001B
160011884
ref: 16001B
WG
CARBURETOR,LH
€ 459.00
16001C
160011885
ref: 16001C
WG
CARBURETOR,RH
€ 580.50
16001D
160011888
ref: 16001D
EU, IT, UK
CARBURETOR,LH
€ 459.00
16001E
160011889
ref: 16001E
EU, IT, UK
CARBURETOR,RH
€ 459.00
16021
160211007
ref: 16021
SCREW-THROTTLE STOP
€ 18.50
16021A
160211027
ref: 16021A
SCREW,SLOTTED
€ 12.00
16065
160651012
ref: 16065
PLATE,STAY
€ 23.00
92005
920051032
ref: 92005
FITTING,FUEL HOSE
€ 29.00
92009
920091005
ref: 92009
BOLT, HEX HEAD, 6X16
€ 2.50
92009A
920091006
ref: 92009A
BOLT, HEX HEAD, 6X22
€ 3.00
92015
920151118
ref: 92015
NUT,5MM
€ 4.50
92022
920221204
ref: 92022
WASHER
€ 2.00
92037
920371142
ref: 92037
CLAMP,TUBE
€ 2.50
92037A
920371194
ref: 92037A
CLAMP,TUBE,TAP DIAPRM
€ 4.00
92055
920551004
ref: 92055
O RING
€ 2.50
92059
920591001
ref: 92059
HOSE, FUEL INLET
€ 13.50
92059A
92059110
ref: 92059A
HOSE
€ 11.50
92059B
920591106
ref: 92059B
HOSE,AIR,4.5X8X450
€ 11.50
92059C
92059111
ref: 92059C
HOSE,FUEL OVERFLOW
€ 17.50
92059D
920591114
ref: 92059D
TUBE,CLAMP
€ 7.50
92081
920811004
ref: 92081
SPRING
€ 3.00
92081A
920811062
ref: 92081A
SPRING,STOP SCREW
€ 4.50
92081B
920811252
ref: 92081B
SPRING
€ 2.50
92081C
920811453
ref: 92081C
SPRING,THROTTLE RETRN
€ 6.00
220
220B0306A
ref: 220
SCREW-PAN HEAD,3X6
€ 0.50
220A
220B0410A
ref: 220A
SCREW-PAN HEAD,4X10
€ 2.00
220B
220B0520A
ref: 220B
SCREW-PAN HEAD,5X20
€ 0.50
311
311B0500A
ref: 311
NUT,5MM
€ 0.50
410
410B0500
ref: 410
WASHER-PLAIN-SMALL,5M
€ 0.50
