FRONT HUB
EX305A1 Z305GP 1983 EUROPE UK IT WG

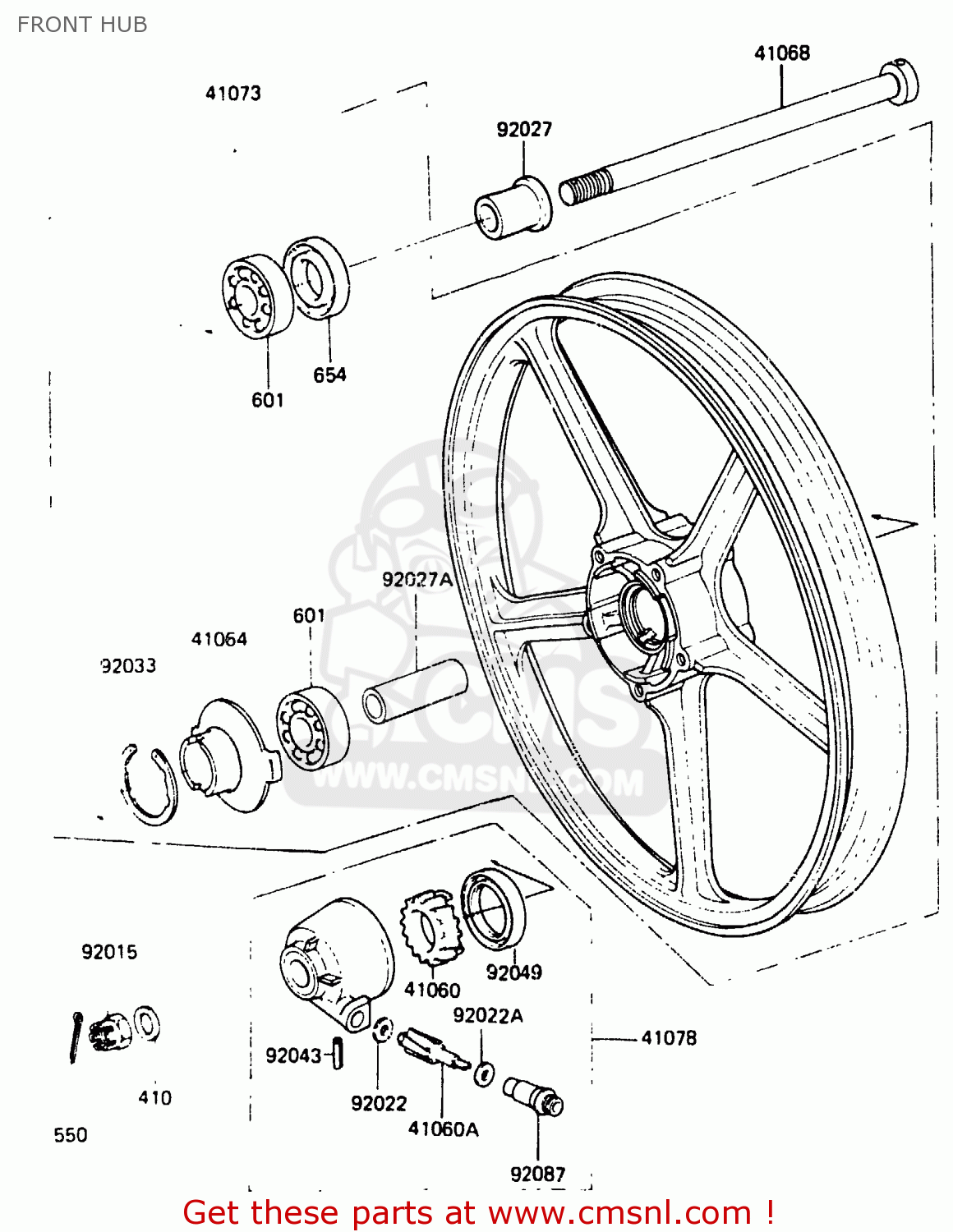

Front hub diagram EX305A1 Z305GP 1983 EUROPE UK IT WG
FRONT HUB EX305A1 Z305GP 1983 EUROPE UK IT WG
×
prices are in EUR
ref
part #
description
quantity
41060
410601025
ref: 41060
GEAR,SPEEDOMETER
€ 18.50
41060A
410601035
ref: 41060A
GEAR-METER SCREW,9T
€ 18.50
41064
410641006
ref: 41064
RECEIVER,SPEEDOMETER
€ 9.50
41068
410681099
ref: 41068
AXLE,FR,L=230
€ 37.50
41073
410731170B1
ref: 41073
WHEEL-ASSY,FR,F.RED
€ 574.00
41078
410781028
ref: 41078
CASE-ASSY-METER GEAR,
€ 97.50
92015
42045020
ref: 92015
NUT,14MM
€ 6.50
92022
41063001
ref: 92022
WASHER-THRST SPD PINI
€ 3.00
92022A
920221062
ref: 92022A
WASHER,PLAIN
€ 3.00
92027
920271118
ref: 92027
COLLAR,L=34
€ 10.00
92027A
920271505
ref: 92027A
COLLAR,15.2X22X55
€ 8.50
92033
920331041
ref: 92033
CIRCLIP,42MM
€ 4.00
92043
41082001
ref: 92043
PIN-SPRING
€ 2.50
92049
920491057
ref: 92049
OIL SEAL,BJN30427-C3
€ 7.50
92087
920871002
ref: 92087
BUSHING-METER GEAR
€ 14.50
410
410B1400
ref: 410
410B1400
550
550D3025
ref: 550
PIN-COTTER,3.0X25
€ 0.50
601
601B6202Z
ref: 601
BEARING-BALL,#6202ZC3
€ 13.00
654
654A223508
ref: 654
OIL SEAL
€ 7.50
