TRANSMISSION
EX250H7 ZZR250 1996 EUROPE NL

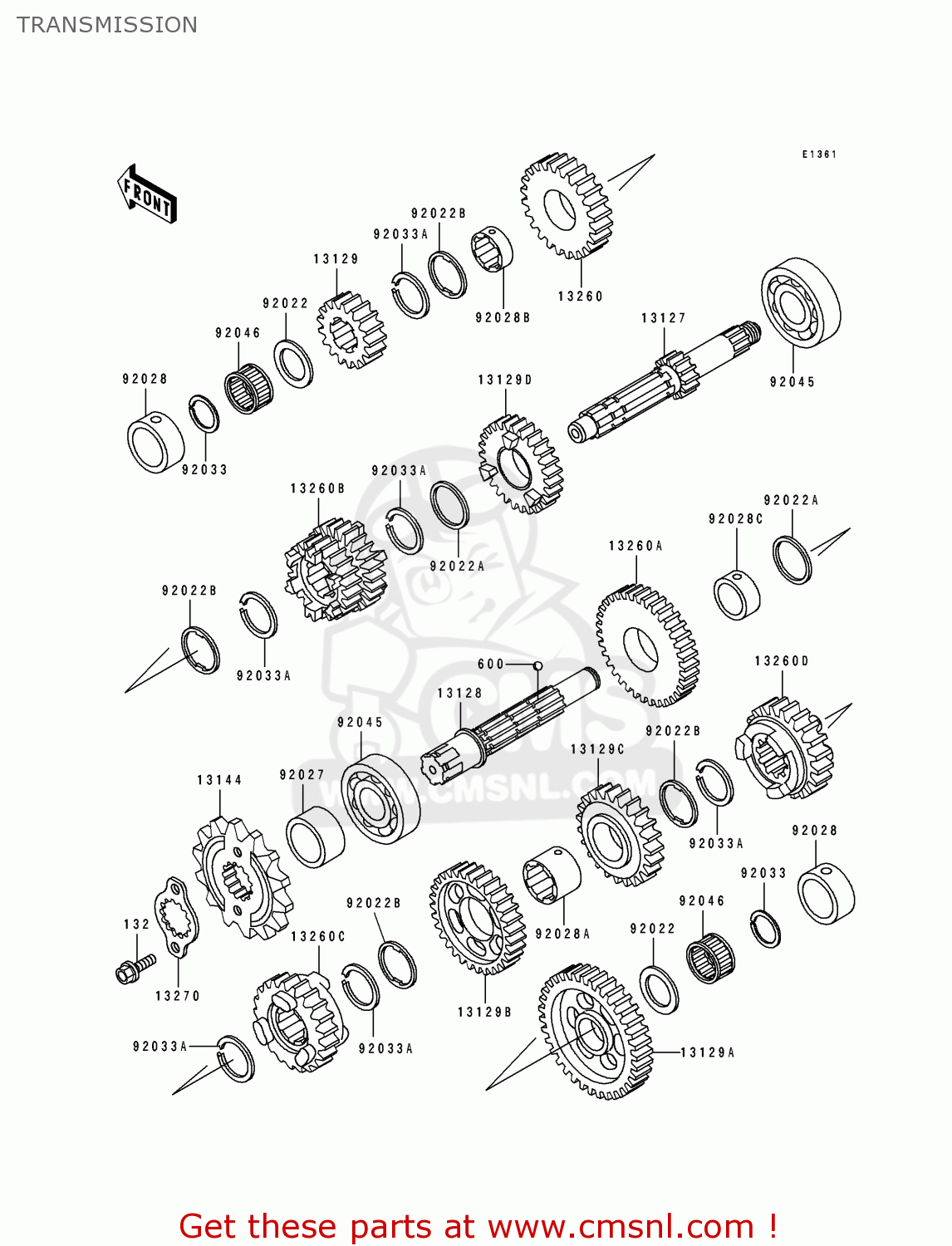

Transmission diagram EX250H7 ZZR250 1996 EUROPE NL
TRANSMISSION EX250H7 ZZR250 1996 EUROPE NL
×
prices are in EUR
ref
part #
description
quantity
132
132G0608
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
600
600A0500
ref: 600
BALL-STEEL,5/32
€ 0.50
13127
131271134
ref: 13127
SHAFT-TRANSMISSION IN
€ 190.50
13128
131281172
ref: 13128
SHAFT-TRANSMISSION OU
€ 167.50
13129
131291086
ref: 13129
GEAR,INPUT 2ND,19T
€ 72.00
13129A
131291254
ref: 13129A
GEAR,OUTPUT LOW,39T
€ 122.50
13129B
131291781
ref: 13129B
GEAR,OUTPUT 3RD,31T
€ 105.00
13129C
131291782
ref: 13129C
GEAR,OUTPUT 4TH,29T
€ 117.50
13129D
131291882
ref: 13129D
GEAR,INPUT 5TH,27T
€ 105.00
13144
131441126
ref: 13144
SPROCKET-OUTPUT,14T
€ 31.00
13260
132601033
ref: 13260
GEAR,INPUT TOP,28T
€ 109.00
13260A
132601034
ref: 13260A
GEAR,OUTPUT 2ND,34T
€ 109.00
13260B
132601098
ref: 13260B
GEAR,INPUT 3RD&4TH,22
€ 121.00
13260C
132601099
ref: 13260C
GEAR,OUTPUT TOP,25T
€ 112.00
13260D
132601267
ref: 13260D
GEAR,OUTPUT 5TH,27T
€ 100.00
13270
132701060
ref: 13270
PLATE,SPROCKET
€ 5.50
92022
92022112
ref: 92022
WASHER,20.5X30X1,STEE
€ 6.00
92022A
92022161
ref: 92022A
WASHER-THRUST,25MM
€ 7.00
92022B
920221935
ref: 92022B
WASHER,23X30X1.0
€ 3.00
92027
920271302
ref: 92027
COLLAR,ENGINE SPROCKE
€ 9.00
92028
920281426
ref: 92028
BUSHING,25X33X14
€ 29.00
92028A
920281437
ref: 92028A
BUSHING
€ 16.50
92028B
920281563
ref: 92028B
BUSHING,TOP GEAR
€ 13.50
92028C
920281564
ref: 92028C
BUSHING,9.4X25X28
€ 15.00
92033
92033015
ref: 92033
CIRCLIP
€ 2.50
92033A
92033026
ref: 92033A
CIRCLIP
€ 6.00
92045
920451013
ref: 92045
BEARING-BALL,#6205NX3
€ 23.00
92046
92046044
ref: 92046
BEARING-NEEDLE,20R251
€ 23.00
