FRONT FORK
EX250H7 ZZR250 1996 EUROPE NL

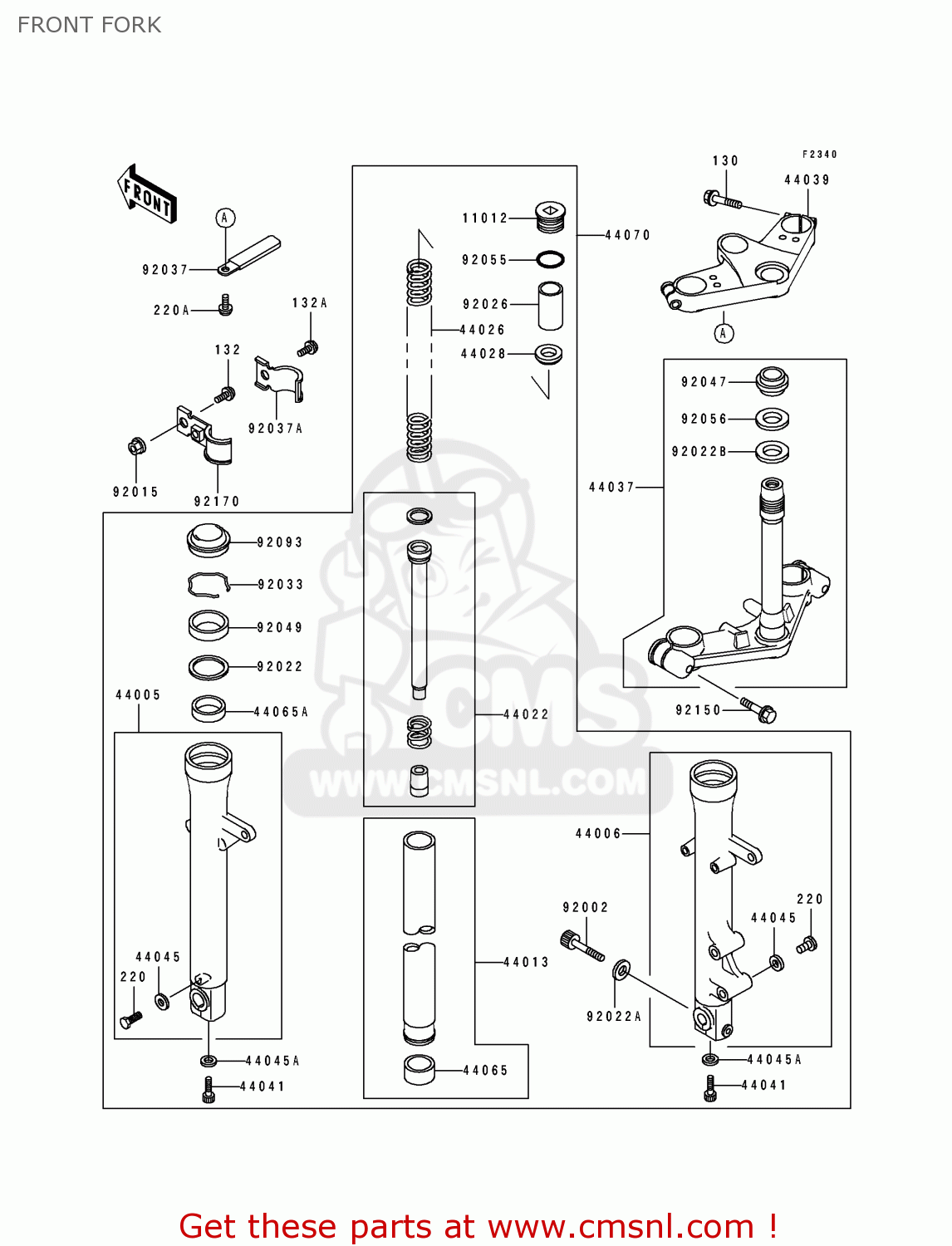

Front fork diagram EX250H7 ZZR250 1996 EUROPE NL
FRONT FORK EX250H7 ZZR250 1996 EUROPE NL
×
prices are in EUR
ref
part #
description
quantity
130
130G0835
ref: 130
BOLT,FLANGED,8X35
€ 1.00
132
132E0620
ref: 132
BOLT-FLANGED-SMALL
€ 2.00
132A
132J0612
ref: 132A
BOLT-FLANGED-SMALL
€ 2.50
220
220B0408
ref: 220
SCREW-PAN-CROS
€ 0.50
220A
220B0608
ref: 220A
SCREW-PAN HEAD,6X8
€ 0.50
11012
110121764
ref: 11012
CAP,FORK TOP
€ 36.50
44005
440051336
ref: 44005
PIPE-LEFT FORK OUTER
€ 345.50
44006
440061334
ref: 44006
PIPE-RIGHT FORK OUTER
€ 345.50
44013
440131332
ref: 44013
PIPE-FORK INNER
€ 162.50
44022
440221261
ref: 44022
CYLINDER-FORK
€ 87.00
44026
440261473
ref: 44026
SPRING-FRONT FORK
€ 26.50
44028
440281003
ref: 44028
GUIDE-FORK SPRING
€ 7.50
44037
440371296
ref: 44037
HOLDER-FORK UNDER
€ 297.50
44039
440391202GD
ref: 44039
HOLDER-FORK UPPER,G.G
€ 230.00
44041
44041040
ref: 44041
BOLT-FORK CYLINDER
€ 4.50
44045
44045002
ref: 44045
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
44045A
44045057
ref: 44045A
GASKET (NAS)
€ 3.00
44065
440651083
ref: 44065
BUSHING-FRONT FORK,IN
€ 17.00
44065A
440651084
ref: 44065A
BUSHING-FRONT FORK
€ 15.00
44070
440705180
ref: 44070
DAMPER-ASSY,FORK
€ 734.00
92002
920021316
ref: 92002
BOLT
€ 3.50
92015
920151233
ref: 92015
NUT,FLANGED,6MM
€ 3.50
92022
920221455
ref: 92022
WASHER,FORK OUTER PIP
€ 4.50
92022A
920221598
ref: 92022A
WASHER
€ 4.50
92022B
92022231
ref: 92022B
WASHER,PLAIN
€ 3.00
92026
920261288
ref: 92026
SPACER,FORK,L=100
€ 11.50
92033
920331047
ref: 92033
SNAP RING,FORK OUTER
€ 4.00
92037
920371539
ref: 92037
CLAMP,L=45
€ 3.00
92037A
920371898
ref: 92037A
CLAMP,HOSE
€ 5.50
92047
92047012
ref: 92047
CONE-STRNG STM BRNG
€ 14.50
92049
920491435
ref: 92049
SEAL-OIL,FORK OUTER T
€ 15.00
92055
920551050
ref: 92055
RING-O,FORK TOP CAP
€ 4.00
92056
92056003
ref: 92056
OIL SEAL,STEERING STM
€ 6.00
92093
920931382
ref: 92093
SEAL,FORK OUTER TUBE
€ 16.50
92150
921501438
ref: 92150
BOLT,FLANGED,10X32
€ 9.00
92170
921701200
ref: 92170
CLAMP,HOSE
€ 7.00
