CAMSHAFT(S)/TENSIONER
EX250H7 ZZR250 1996 EUROPE NL

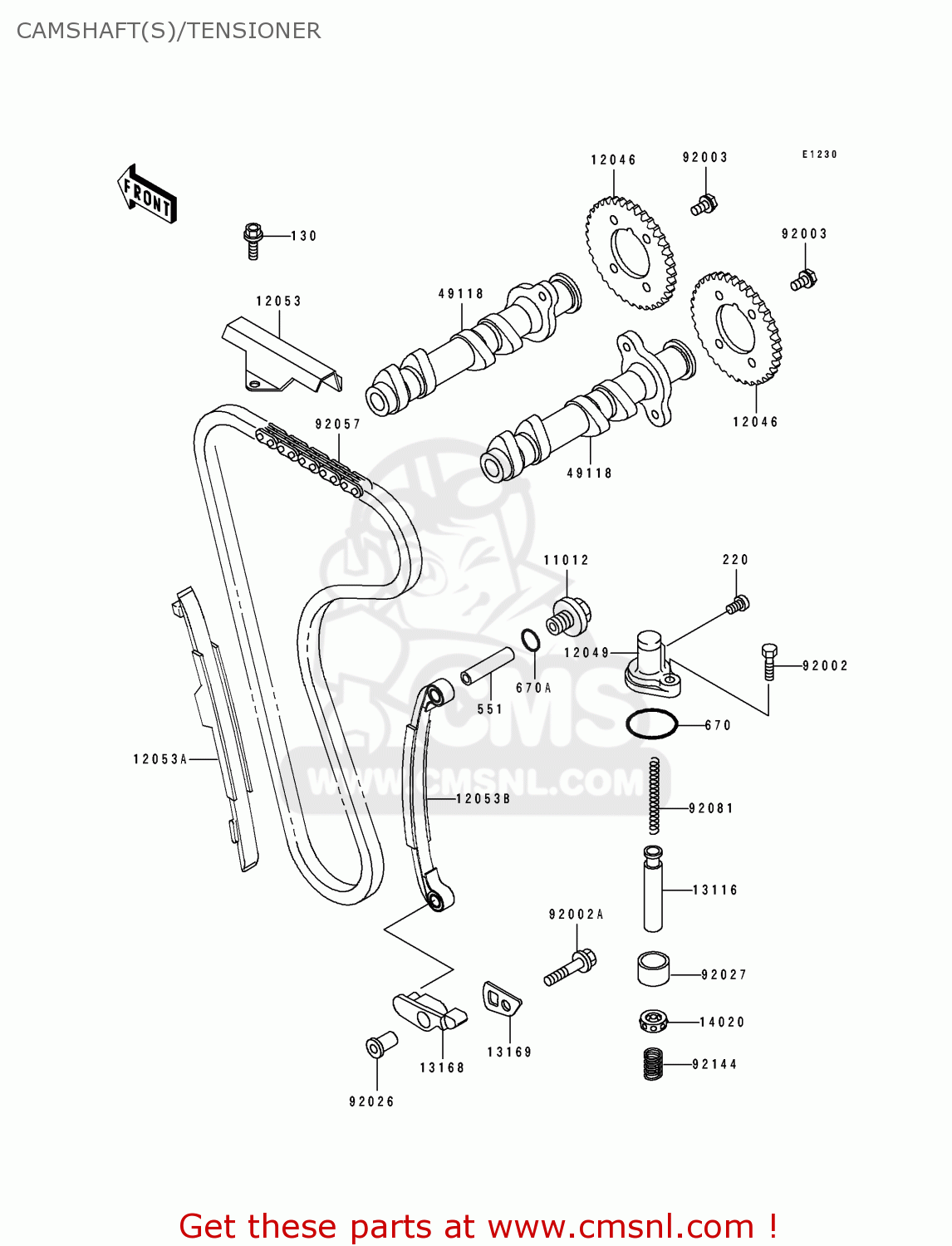

Camshaft(s)/tensioner diagram EX250H7 ZZR250 1996 EUROPE NL
CAMSHAFT(S)/TENSIONER EX250H7 ZZR250 1996 EUROPE NL
×
prices are in EUR
ref
part #
description
quantity
130
130P0614
ref: 130
BOLT-FLANGED,6X14
€ 2.00
220
220C0508
ref: 220
SCREW-PAN-CROS
€ 1.00
551
551A0835
ref: 551
PIN-DOWEL
€ 2.50
670
670B2021
ref: 670
O RING,21MM
€ 3.00
670A
670D2014
ref: 670A
O RING,14MM
€ 3.50
11012
110121677
ref: 11012
CAP,BOLT
€ 9.50
12046
120461085
ref: 12046
SPROCKET,CAMSHAFT,38T
€ 38.50
12048
120481106
ref: 12048
TENSIONER-ASSY
€ 48.50
12053
120531192
ref: 12053
GUIDE-CHAIN,UPP
€ 31.00
12053A
120531205
ref: 12053A
GUIDE-CHAIN,FR
€ 39.50
12053B
120531369
ref: 12053B
GUIDE-CHAIN,RR
€ 37.50
13116
131161138
ref: 13116
ROD-PUSH,TENSIONER
€ 10.50
13168
131681313
ref: 13168
LEVER,TENSIONER
€ 18.00
13169
131691661
ref: 13169
PLATE,CHAIN GUIDE
€ 3.00
14020
140201054
ref: 14020
RETAINER,TENSIONER
€ 14.50
49118
491181054
ref: 49118
CAMSHAFT-COMP
€ 257.00
92002
920021344
ref: 92002
BOLT,6X25
€ 1.50
92002A
920021824
ref: 92002A
BOLT
€ 3.00
92003
92003208
ref: 92003
BOLT,SPROCKET FITTING
€ 2.50
92026
920261266
ref: 92026
SPACER
€ 5.50
92027
920271240
ref: 92027
COLLAR,TENSIONER
€ 10.00
92057
920571210
ref: 92057
CHAIN,CAMSHAFT
€ 25.50
92081
920811984
ref: 92081
SPRING,TENSIONER
€ 4.00
92144
921441274
ref: 92144
SPRING
€ 2.50
