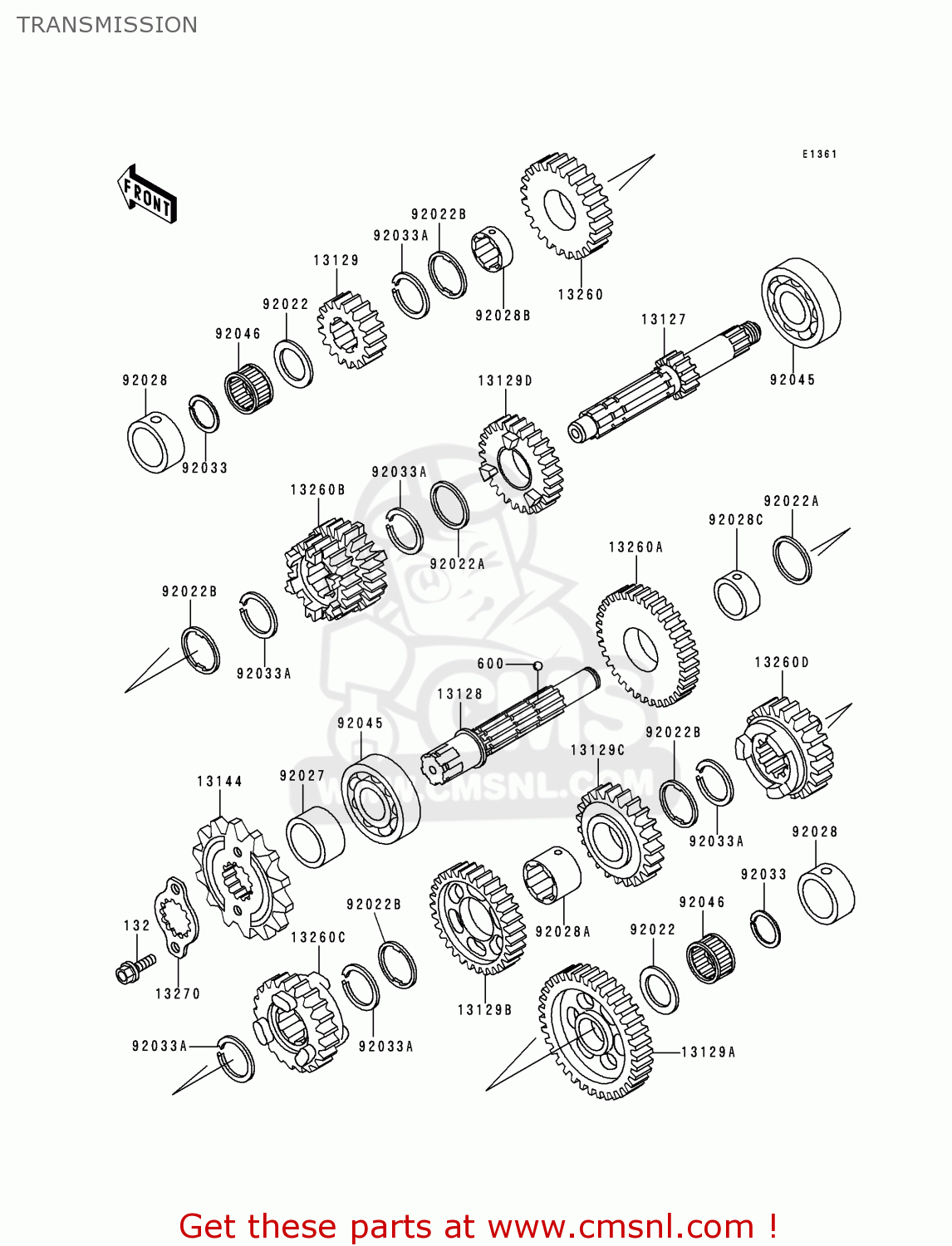

TRANSMISSION

ref

part #

description

quantity

132

132G0608
ref: 132

BOLT-FLANGED-SMALL

€ 1.50

600

600A0500
ref: 600

BALL-STEEL,5/32

€ 0.50

13127

131271134
ref: 13127

SHAFT-TRANSMISSION IN

€ 190.50

13128

131281131
ref: 13128

SHAFT-TRANSMISSION OU

€ 144.00

13129

131291086
ref: 13129

GEAR,INPUT 2ND,19T

€ 72.00

13129A

131291254
ref: 13129A

GEAR,OUTPUT LOW,39T

€ 122.50

13129B

131291781
ref: 13129B

GEAR,OUTPUT 3RD,31T

€ 105.00

13129C

131291782
ref: 13129C

GEAR,OUTPUT 4TH,29T

€ 117.50

13129D

131291882
ref: 13129D

GEAR,INPUT 5TH,27T

€ 105.00

13144

131441126
ref: 13144

SPROCKET-OUTPUT,14T

€ 31.00

13260

132601033
ref: 13260

GEAR,INPUT TOP,28T

€ 109.00

13260A

132601034
ref: 13260A

GEAR,OUTPUT 2ND,34T

€ 109.00

13260B

132601098
ref: 13260B

GEAR,INPUT 3RD&4TH,22

€ 121.00

13260C

132601099
ref: 13260C

GEAR,OUTPUT TOP,25T

€ 112.00

13260D

132601267
ref: 13260D

GEAR,OUTPUT 5TH,27T

€ 100.00

13270

132701060
ref: 13270

PLATE,SPROCKET

€ 5.50

92022

92022112
ref: 92022

WASHER,20.5X30X1,STEE

€ 6.00

92022A

92022161
ref: 92022A

WASHER-THRUST,25MM

€ 7.00

92022B

920221935
ref: 92022B

WASHER,23X30X1.0

€ 3.00

92027

920271302
ref: 92027

COLLAR,ENGINE SPROCKE

€ 9.00

92028

920281426
ref: 92028

BUSHING,25X33X14

€ 29.00

92028A

920281437
ref: 92028A

BUSHING

€ 16.50

92028B

920281563
ref: 92028B

BUSHING,TOP GEAR

€ 13.50

92028C

920281564
ref: 92028C

BUSHING,9.4X25X28

€ 15.00

92033

92033015
ref: 92033

CIRCLIP

€ 2.50

92033A

92033026
ref: 92033A

CIRCLIP

€ 6.00

92045

920451013
ref: 92045

BEARING-BALL,#6205NX3

€ 23.00

92046

92046044
ref: 92046

BEARING-NEEDLE,20R251

€ 23.00
