FRAME

EX250F11 NINJA 250R 1997 USA CALIFORNIA CANADA

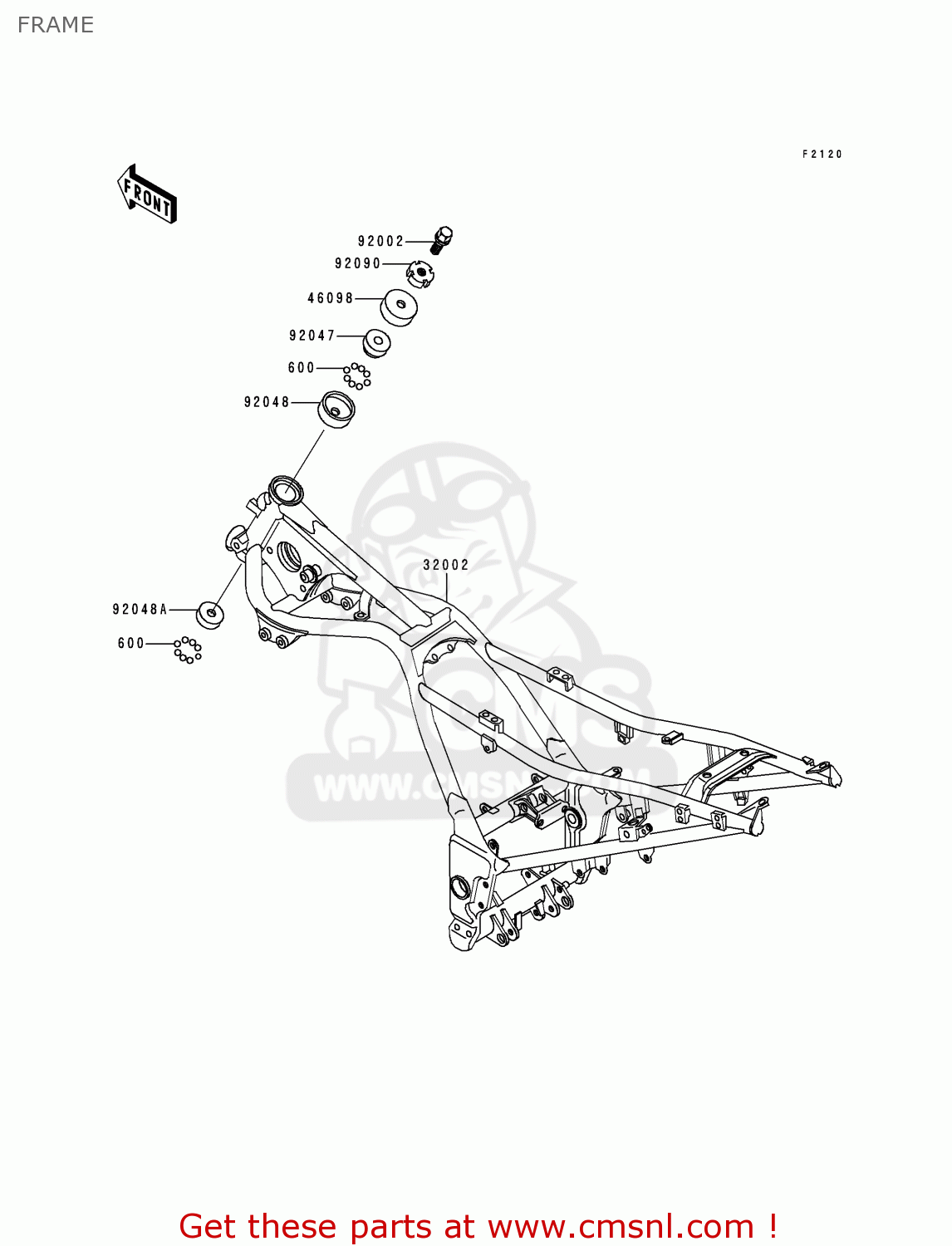

Frame diagram EX250F11 NINJA 250R 1997 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

600

600A0800
ref: 600

BALL-STEEL,1/4

€ 0.50

32002

320021944
ref: 32002

FRAME-COMP

€ 869.50

46098

46098016
ref: 46098

CAP,STEERING STEM

€ 4.00

92002

920021950
ref: 92002

BOLT,FLANGED,16X22

€ 13.50

92047

92047011
ref: 92047

CONE-STRNG STM BRNG

€ 14.50

92048

92048006
ref: 92048

RACE-STRNG BEARIN-STE

€ 11.50

92048A

92048008
ref: 92048A

RACE-STRNG STM BRNG

€ 16.00

92090

92090007
ref: 92090

NUT-STEERING STEM LCK

€ 8.00
