SEAT

EX250F11 NINJA 250R 1997 USA CALIFORNIA CANADA

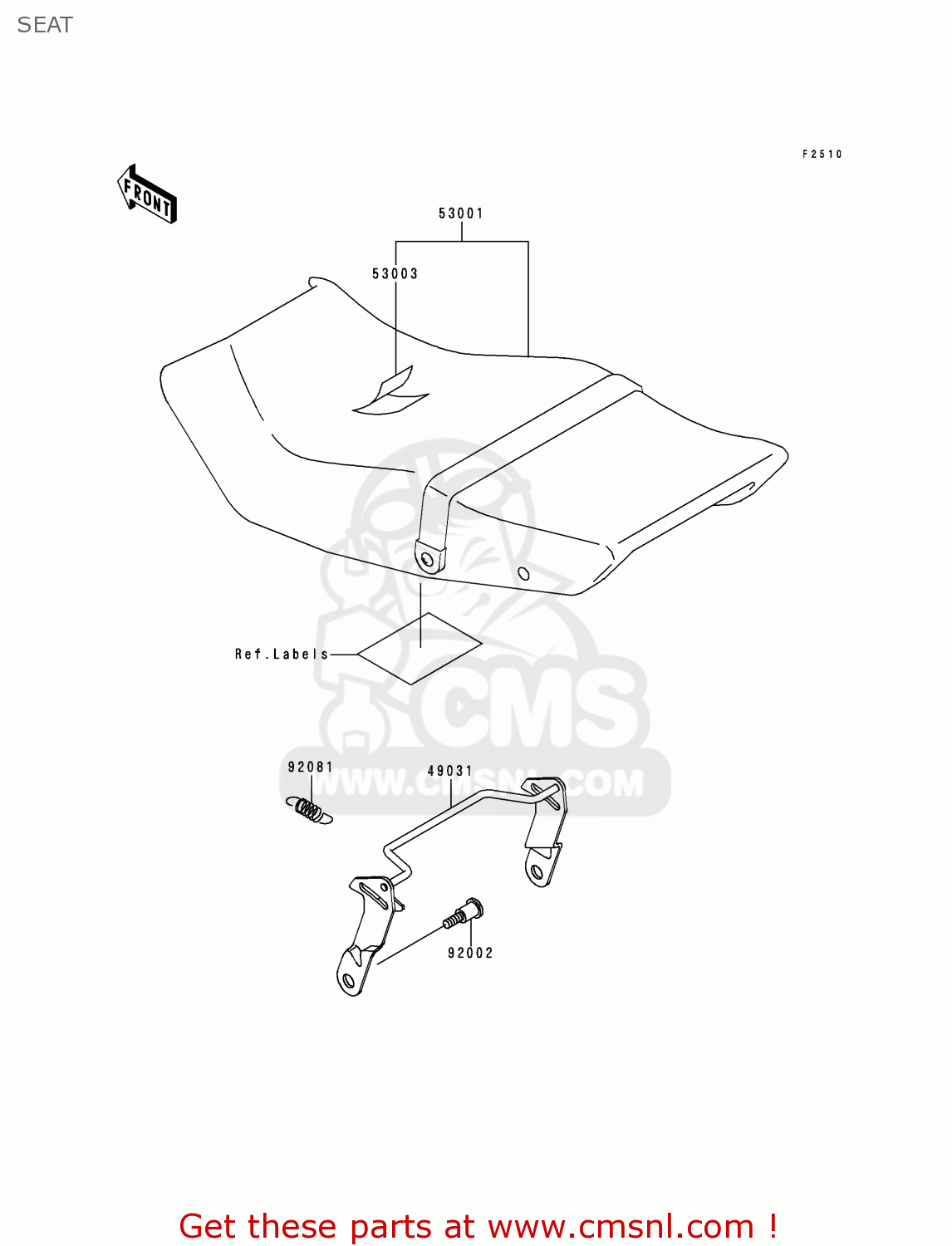

Seat diagram EX250F11 NINJA 250R 1997 USA CALIFORNIA CANADA

SEAT EX250F11 NINJA 250R 1997 USA CALIFORNIA CANADA

SEAT EX250F11 NINJA 250R 1997 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

49031

490311056
ref: 49031

LATCH,SEAT

€ 22.50

53001

530011547MA
ref: 53001

SEAT-ASSY,DUAL,BLACK

€ 326.50

53003

530031192MA
ref: 53003

LEATHER,SEAT,BLACK

€ 99.50

92002

920021616
ref: 92002

BOLT

€ 8.00

92081

920811580
ref: 92081

SPRING,HOOK RETURN

€ 4.50
