TAILLIGHT(S)

EN500C3 1998 EUROPE UK FR NL AR FG GR IT NR SD SP ST

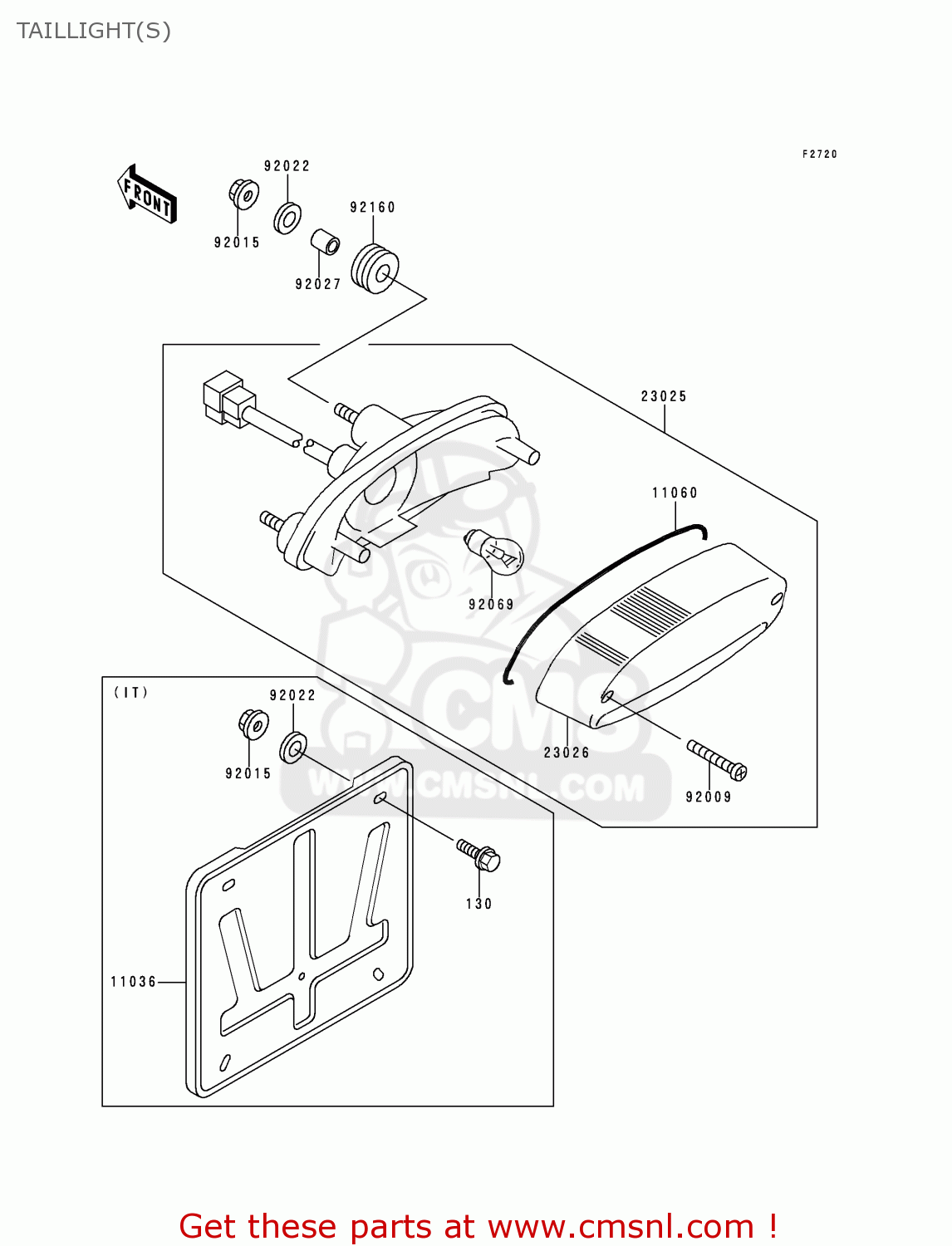

Taillight(s) diagram EN500C3 1998 EUROPE UK FR NL AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

130

130J0616
ref: 130
IT

BOLT-FLANGED,6X16

€ 1.50

11036

110361820
ref: 11036
IT

BRACKET-A,LICENSE PLA

€ 13.50

11060

110601174
ref: 11060

GASKET,TAIL LAMP LENS (NAS)

€ 7.00

23025

230251255
ref: 23025

LAMP-TAIL

€ 143.00

23026

230261183
ref: 23026

LENS,TAIL LAMP

€ 39.00

92009

920091378
ref: 92009

SCREW,TAPPING,4X20

€ 2.50

92015

920151367
ref: 92015
AREUFGFRGRNLNRSDSPST

NUT,FLANGED,6MM

€ 0.50

92015

920151367
ref: 92015
IT

NUT,FLANGED,6MM

€ 0.50

92022

920221557
ref: 92022
AREUFGFRGRNLNRSDSPST

WASHER,6.5X20X1.6

€ 1.00

92022

920221557
ref: 92022
IT

WASHER,6.5X20X1.6

€ 1.00

92027

92027162
ref: 92027

COLLAR-REAR FENDER

€ 4.50

92069

92069063
ref: 92069

BULB 12V 21/5W

€ 4.50

92160

921601162
ref: 92160

DAMPER

€ 3.00

TAILLIGHT(S)

all assemblies
