FRAME

EN500C3 1998 EUROPE UK FR NL AR FG GR IT NR SD SP ST

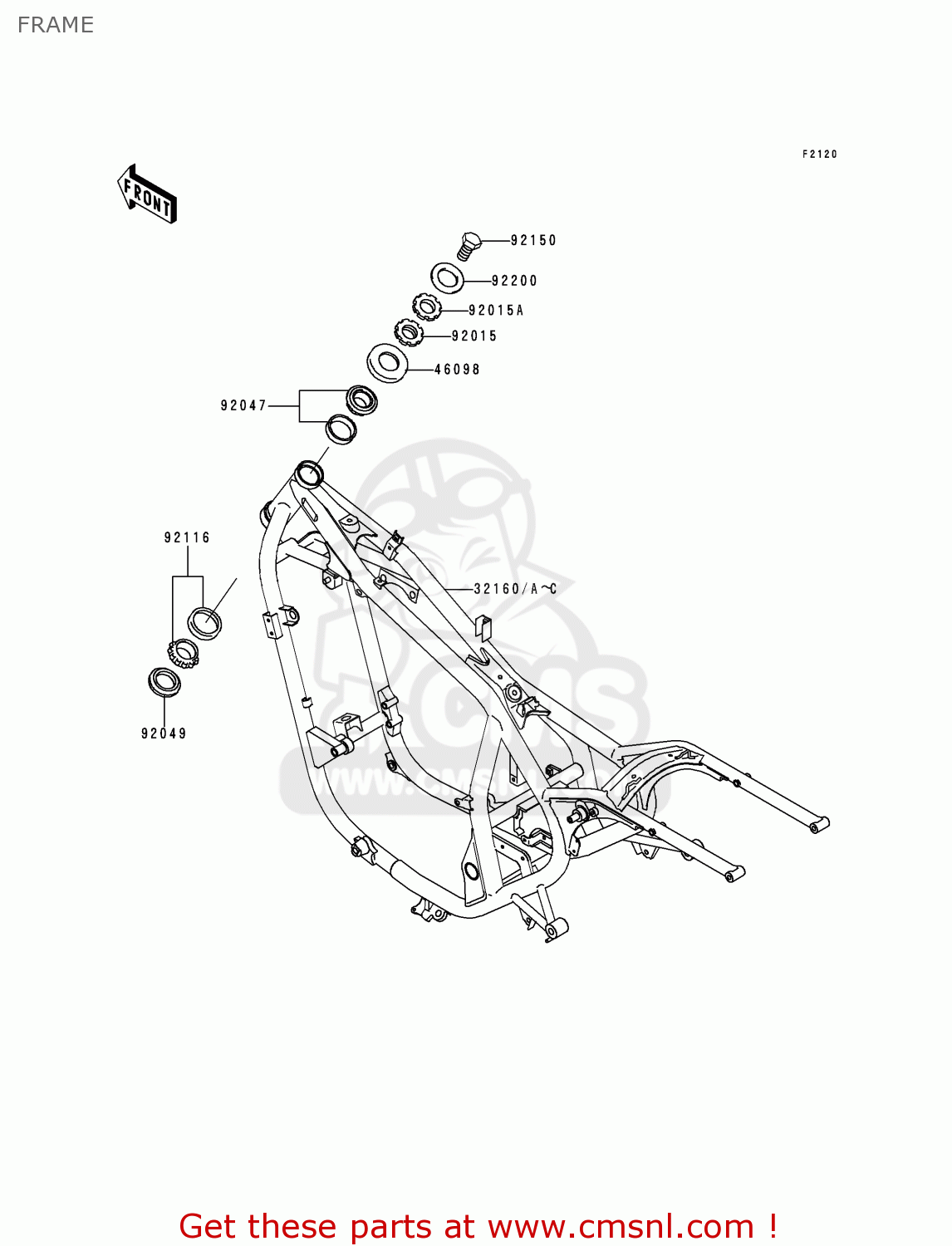

Frame diagram EN500C3 1998 EUROPE UK FR NL AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

32160A

321601470
ref: 32160A
AREUFGFRGRNLNRSDSPST

FRAME-COMP

€ 1,421.50

32160C

321601511
ref: 32160C
IT

FRAME-COMP

€ 1,486.50

46098

46098017
ref: 46098

CAP,STEERING STEM

€ 4.00

92015

920151377
ref: 92015

NUT,25MM,T=10

€ 18.50

92015A

920151378
ref: 92015A

NUT,25MM,T=6

€ 14.50

92047

92047017
ref: 92047

CONE,STRNG,STEM

€ 49.50

92049

920491162
ref: 92049

SEAL-OIL,XMHE36X52X4J

€ 7.50

92116

921161009
ref: 92116

BEARING R,HR320/28XJ

€ 41.00

92150

921501672
ref: 92150

BOLT,14X25

€ 9.50

92200

922001140
ref: 92200

WASHER

€ 8.00
