CARBURETOR

EN500C3 1998 EUROPE UK FR NL AR FG GR IT NR SD SP ST

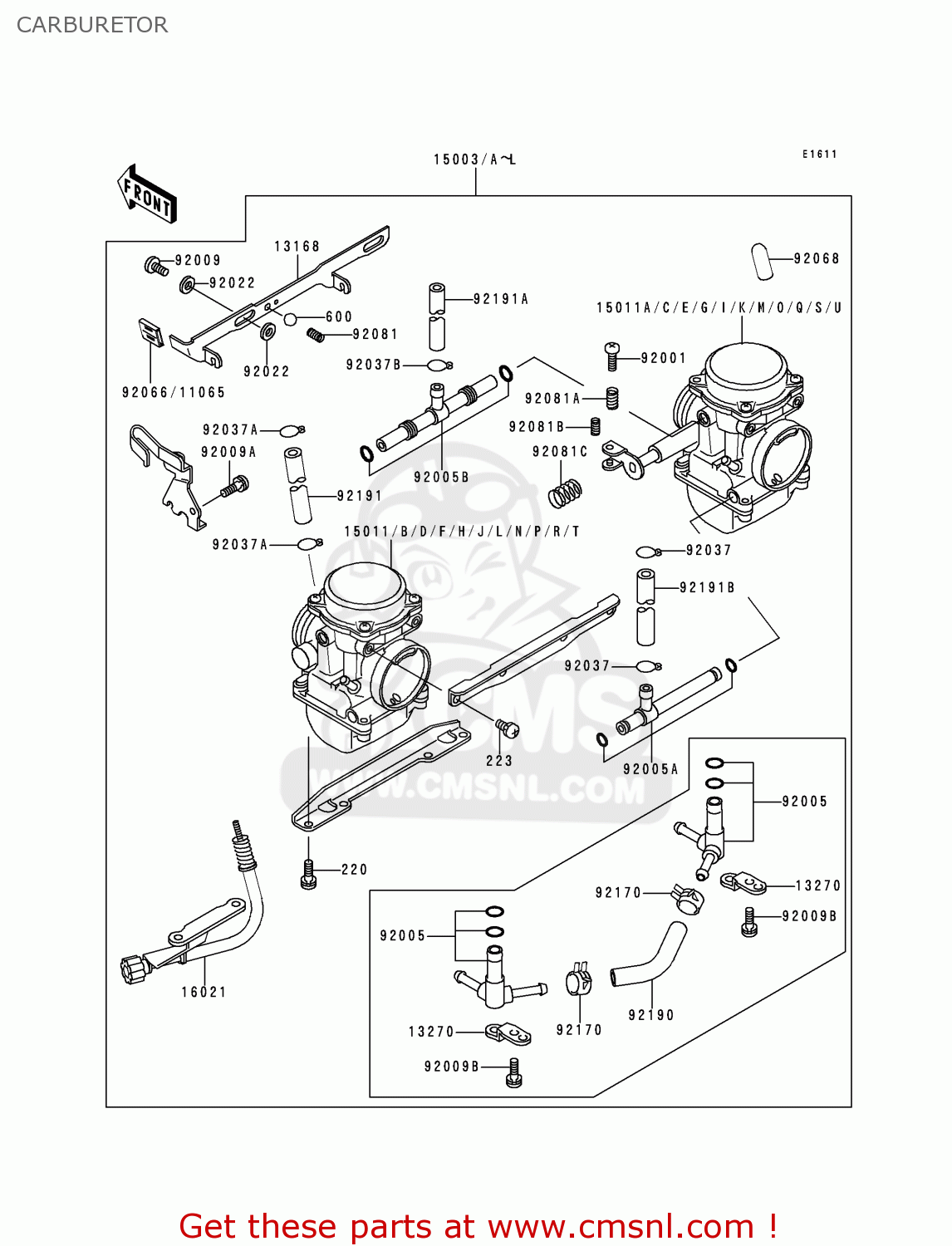

Carburetor diagram EN500C3 1998 EUROPE UK FR NL AR FG GR IT NR SD SP ST

CARBURETOR EN500C3 1998 EUROPE UK FR NL AR FG GR IT NR SD SP ST
CARBURETOR EN500C3 1998 EUROPE UK FR NL AR FG GR IT NR SD SP ST
CARBURETOR EN500C3 1998 EUROPE UK FR NL AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
11065
110651092
ref: 11065
CAP,STARTER LEVER
€ 13.50
13168
131681444
ref: 13168
LEVER,STARTER
€ 65.00
13270
132701286
ref: 13270
ARFGFRITNLSTUK
PLATE,FITTING STAY
€ 46.00
15003G
150031381
ref: 15003G
FRITNLUK
CARBURETOR-ASSY
€ 1,079.50
15003H
150031382
ref: 15003H
FG
CARBURETOR-ASSY
€ 1,332.50
15003I
150031382
ref: 15003I
AR
CARBURETOR-ASSY
€ 1,332.50
15003J
150031383
ref: 15003J
EUGRNRSDSP
CARBURETOR-ASSY
€ 1,332.50
15003K
150031384
ref: 15003K
AR
CARBURETOR-ASSY
€ 1,079.50
15003L
150031385
ref: 15003L
ST
CARBURETOR-ASSY
€ 1,079.50
15011L
150111411
ref: 15011L
FG
CARBURETOR,LH
€ 1,038.50
15011M
150111412
ref: 15011M
FG
CARBURETOR,RH
€ 1,038.50
15011N
150111413
ref: 15011N
EUGRNRSDSP
CARBURETOR,LH
€ 975.50
15011O
150111414
ref: 15011O
EUGRNRSDSP
CARBURETOR,RH
€ 975.50
15011P
150111415
ref: 15011P
AR
CARBURETOR,LH
€ 665.00
15011Q
150111416
ref: 15011Q
AR
CARBURETOR,RH
€ 665.00
15011R
150111417
ref: 15011R
ST
CARBURETOR,LH
€ 665.00
15011S
150111418
ref: 15011S
ST
CARBURETOR,RH
€ 665.00
15011T
150111419
ref: 15011T
FRITNLUK
CARBURETOR,LH
€ 665.00
15011U
150111420
ref: 15011U
FRITNLUK
CARBURETOR,RH
€ 665.00
16021
160211175
ref: 16021
SCREW-THROTTLE STOP
160211175
€ 72.00
92001
920011998
ref: 92001
BOLT,THROTTLE ADJUST
920011998
€ 11.50
92005
920051300
ref: 92005
ARFGFRITNLSTUK
FITTING
920051300
€ 18.00
92005A
920051325
ref: 92005A
FITTING
920051325
€ 37.00
92005B
920051326
ref: 92005B
FITTING
920051326
€ 37.00
92009
920091262
ref: 92009
SCREW
920091262
€ 4.00
92009A
920091365
ref: 92009A
SCREW
920091365
€ 4.50
92009B
920091705
ref: 92009B
ARFGFRITNLSTUK
SCREW 4X8
920091705
€ 2.50
220
220B0616
ref: 220
SCREW-PAN HEAD,6X16
220B0616
€ 2.50
223
223C0510
ref: 223
SCREW-PAN-WS-CROS
€ 2.50
600
600A0600
ref: 600
BALL-STEEL,3/16
600A0600
€ 0.50
92022
920221199
ref: 92022
WASHER,6.1X11X0.8,POL
920221199
€ 3.00
92037
920371075
ref: 92037
CLAMP,FUEL INLET TUBE
920371075
€ 2.50
92037A
920371477
ref: 92037A
CLAMP,TUBE
920371477
€ 3.00
92037B
920371531
ref: 92037B
CLAMP,TUBE
920371531
€ 3.50
92068
92068006
ref: 92068
EUFRGRITNLNRSDSPUK
RUBBER PLUG
92068006
€ 2.50
92081
920811619
ref: 92081
SPRING,SHAFT STOP
920811619
€ 4.50
92081A
920811620
ref: 92081A
SPRING,THROTTLE ADJUS
920811620
€ 3.00
92081B
920811621
ref: 92081B
SPRING,THROTTLE ADJUS
920811621
€ 3.00
92081C
920811876
ref: 92081C
SPRING
€ 6.00
92170
921701504
ref: 92170
ARFGFRITNLSTUK
CLAMP
921701504
€ 3.00
92190
921901542
ref: 92190
ARFGFRITNLSTUK
TUBE,WATER
921901542
€ 9.00
92191
921911103
ref: 92191
TUBE,5X9X230
921911103
€ 13.00
92191A
921911104
ref: 92191A
TUBE,7X11X330
921911104
€ 21.00
92191B
921911110
ref: 92191B
TUBE,7.3X12.5X320
921911110
€ 20.00
