HEADLIGHT(S)

EN500C2 1997 EUROPE UK FR NL AR FG GR IT NR SD SP ST

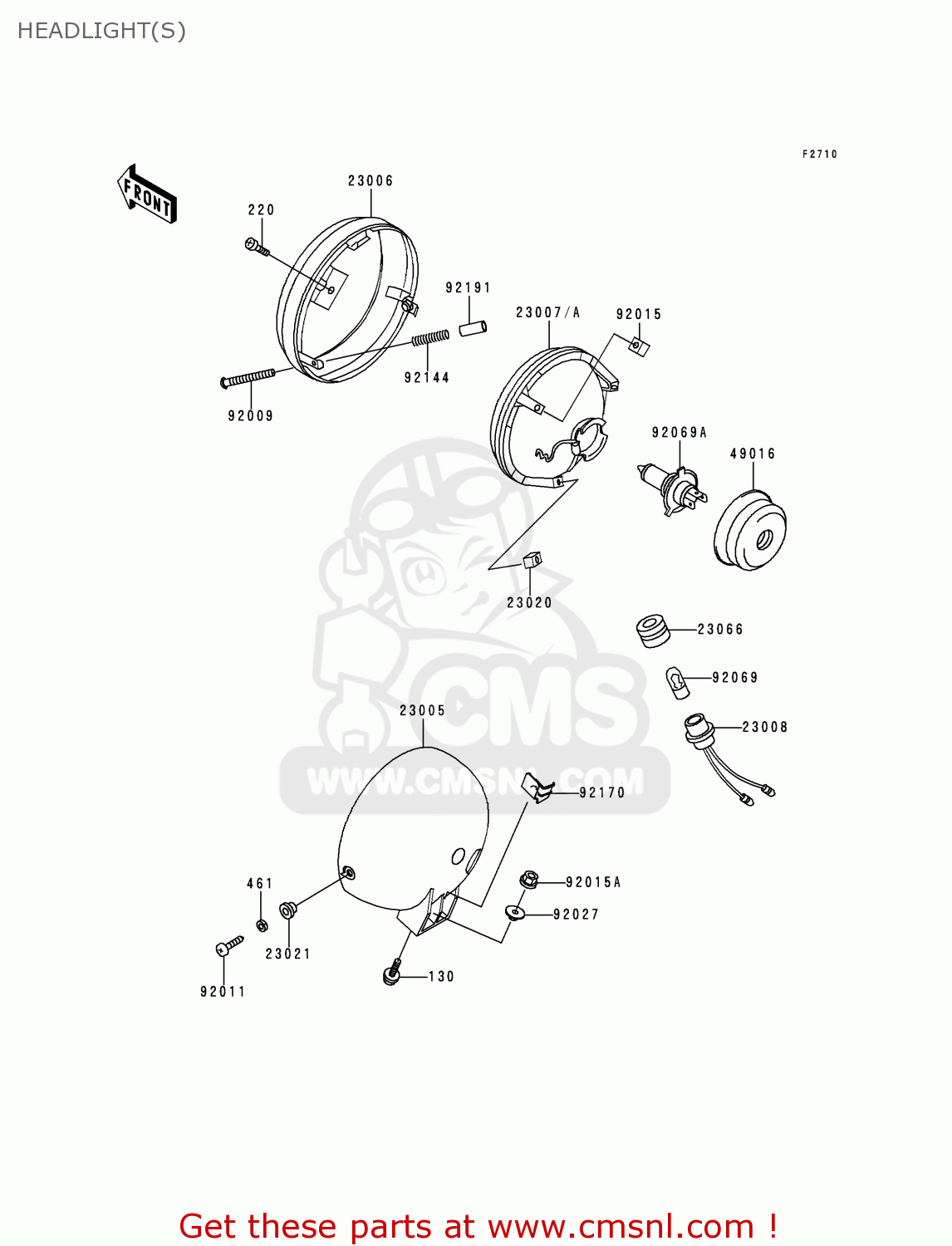

Headlight(s) diagram EN500C2 1997 EUROPE UK FR NL AR FG GR IT NR SD SP ST

HEADLIGHT(S) EN500C2 1997 EUROPE UK FR NL AR FG GR IT NR SD SP ST
HEADLIGHT(S) EN500C2 1997 EUROPE UK FR NL AR FG GR IT NR SD SP ST
HEADLIGHT(S) EN500C2 1997 EUROPE UK FR NL AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
130
130V0620
ref: 130
BOLT-FLANGED
€ 2.00
220
220D0512
ref: 220
SCREW-PAN-CROS,5X12
220D0512
€ 0.50
461
461F0500
ref: 461
WASHER-SPRING,5MM
461F0500
€ 0.50
23005
230051149
ref: 23005
BODY-COMP-HEAD LAMP
230051149
€ 117.00
23006
230061070
ref: 23006
RIM-LAMP
230061070
€ 61.50
23007
230071197
ref: 23007
UK
LENS-COMP,HEAD LAMP
230071197
€ 137.50
23007A
230071262
ref: 23007A
AREUFGFRGRITNLNRSDSP
LENS-COMP,HEAD LAMP
230071262
€ 151.00
23008
23008038
ref: 23008
SOCKET-ASSY,PARKING L
23008038
€ 7.50
23020
23020018
ref: 23020
NUT,4MM,FOCUS ADJUST
23020018
€ 3.00
23021
23021010
ref: 23021
WASHER
23021010
€ 2.50
23066
23066008
ref: 23066
DAMPER,PARKING LAMP
23066008
€ 3.00
49016
490161129
ref: 49016
COVER-SEAL,HEAD LAMP
490161129
€ 8.00
92009
920091472
ref: 92009
SCREW,FOCUS ADJUST,4X
920091472
€ 3.50
92011
92011024
ref: 92011
SCREW-PAN HEAD,5MM
92011024
€ 2.00
92015
920151157
ref: 92015
NUT,5MM
920151157
€ 3.50
92015A
920151367
ref: 92015A
NUT,FLANGED,6MM
920151367
€ 0.50
92027
92027252
ref: 92027
COLLAR,L=6.5
92027252
€ 3.50
92069
92069071
ref: 92069
BULB,12V 4W
92069071
€ 4.50
92069A
920691002
ref: 92069A
BULB,12V-60155W
920691002
€ 15.00
92144
921441149
ref: 92144
SPRING,FOCUS ADJUST
921441149
€ 5.50
92170
921701624
ref: 92170
CLAMP
€ 3.50
92191
921911217
ref: 92191
TUBE
921911217
€ 1.50
