BRAKE PEDAL

EN500C2 1997 EUROPE UK FR NL AR FG GR IT NR SD SP ST

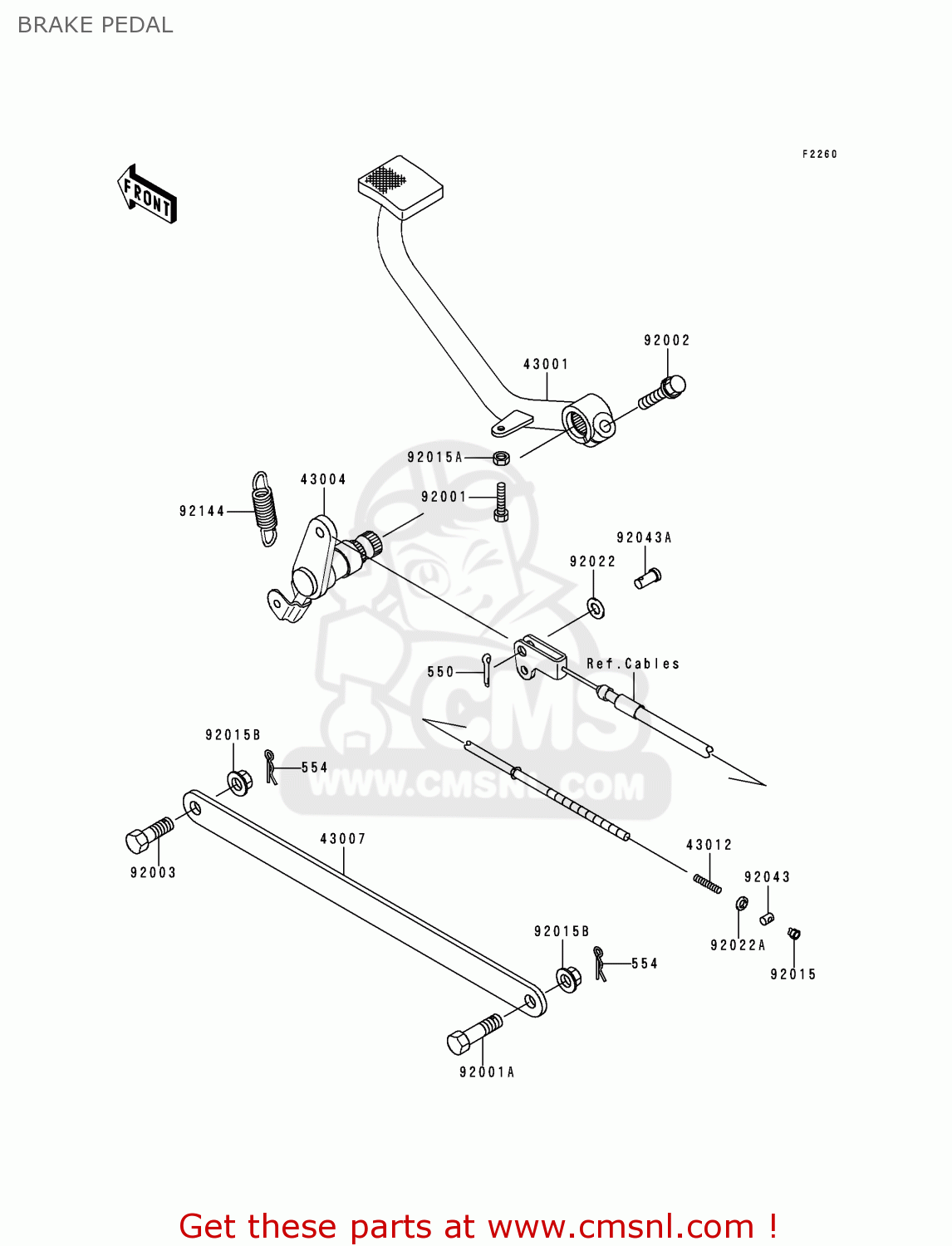

Brake pedal diagram EN500C2 1997 EUROPE UK FR NL AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

550

550D2015
ref: 550

PIN-COTTER,2.0X15

€ 1.00

554

554A0800
ref: 554

PIN-SNAP,8MM

€ 1.00

43001

430011365
ref: 43001

LEVER-BRAKE,PEDAL

€ 80.00

43004

430041132
ref: 43004

SHAFT-BRAKE

€ 34.50

43007

430071112
ref: 43007

ROD-TORQUE

€ 20.50

43012

43012001
ref: 43012

SPRING,BRAKE ROD

€ 3.00

92001

920011090
ref: 92001

BOLT,HEX HEAD,6X25

€ 2.50

92001A

920011519
ref: 92001A

BOLT,10X37

€ 4.50

92002

920021201
ref: 92002

BOLT,FLANGED,8X25

€ 3.00

92003

92003096
ref: 92003

BOLT-TRQ LINK 10X29

€ 7.00

92015

92015042
ref: 92015

NUT-BRAKE ROD ADJUST

€ 4.00

92015A

920151391
ref: 92015A

NUT,6MM

€ 2.00

92015B

920151428
ref: 92015B

NUT,FLANGED,10MM

€ 3.00

92022

920221582
ref: 92022

WASHER,8.5X16X1.2

€ 0.50

92022A

920221588
ref: 92022A

WASHER,6.3X10.2X1.6

€ 2.50

92043

92043065
ref: 92043

PIN-BRAKE ROD

€ 3.50

92043A

920431013
ref: 92043A

PIN

€ 6.50

92144

921441053
ref: 92144

SPRING,BRAKE PEDAL RE

€ 6.00

BRAKE PEDAL

all assemblies
